Rinnai Burner Assembly, 263FA, 201FA, 431, 556

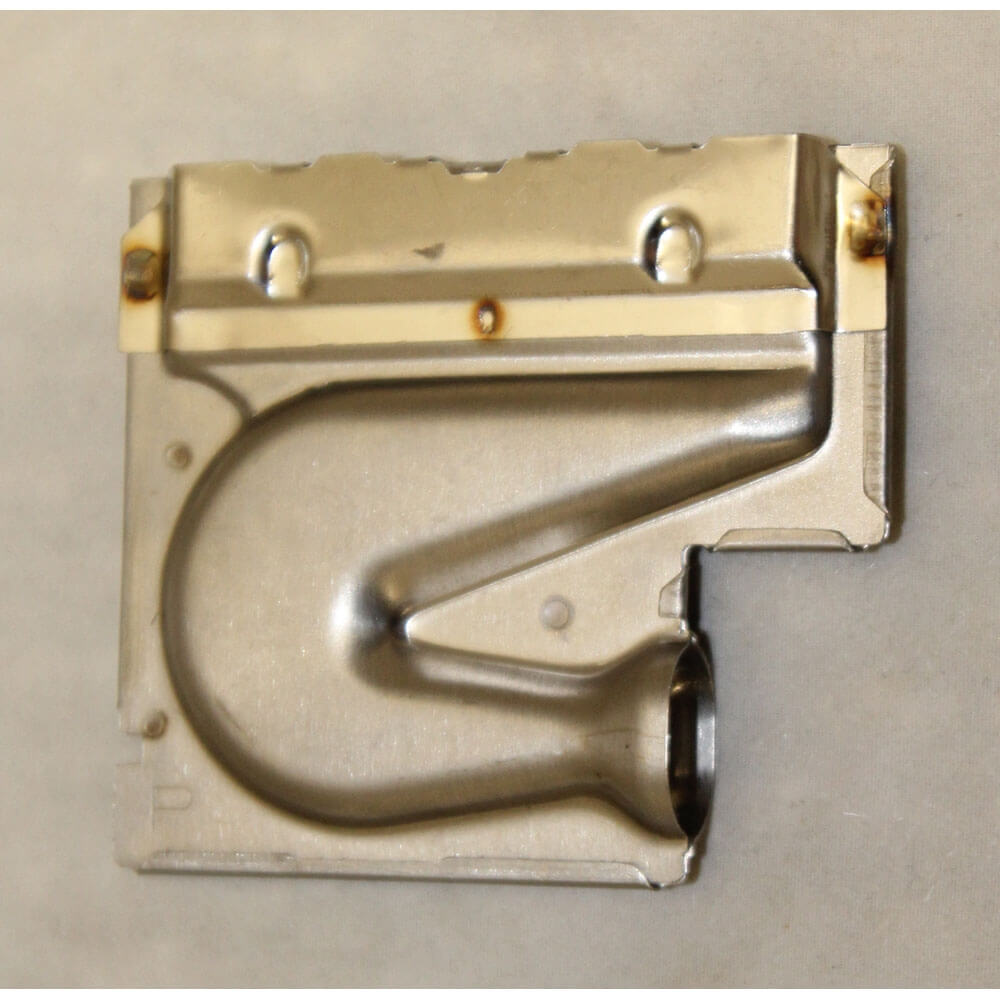

A. The Rinnai B3A2-4 Burner Assembly is a replacement combustion component for compatible Rinnai heater models.

The burner assembly supports the controlled combustion process that produces heat inside the appliance. Replacing a damaged, deteriorated, or malfunctioning burner assembly can help restore proper operation when diagnosis confirms that this component is the source of the problem.

Because burner service involves the appliance's combustion system, installation and testing should be performed by a qualified service technician.

A. The Rinnai B3A2-4 Burner Assembly is listed for Rinnai models 431FA/WTA, 263FA, 556FA-3, 201FA, and 556.

Model compatibility should be confirmed using the complete model and serial information from the appliance rating plate. Similar-looking Rinnai heaters may use different burner components depending on the model version, production date, or fuel configuration.

Verify the part number before ordering to avoid installing an incompatible combustion component.

A. A burner assembly should be replaced only after inspection and diagnostic testing confirm that it is damaged, deteriorated, or operating improperly.

Possible symptoms may include unreliable ignition, uneven combustion, abnormal flame appearance, unusual operating noise, incomplete heating cycles, or repeated shutdowns. These symptoms can also be caused by other components, fuel supply problems, venting conditions, or maintenance issues.

A qualified technician should diagnose the heater before parts are replaced.

A. No. The Rinnai B3A2-4 is a burner assembly rather than a complete heater repair kit.

Additional parts such as gaskets, flame-sensing components, fasteners, seals, or burner-box components may be required depending on the heater's condition and the service procedure. Parts removed during combustion-system service should be inspected before the appliance is reassembled.

Consult the applicable Rinnai service documentation to determine which related parts must be replaced.

A. Installation of the Rinnai B3A2-4 Burner Assembly should be handled by a qualified heating-appliance service technician.

The repair requires access to the combustion area and may involve fuel connections, ignition components, flame-sensing parts, seals, and safety controls. Incorrect installation can affect combustion quality, appliance reliability, and safe venting.

The heater should be inspected, tested, and returned to service according to Rinnai procedures and applicable codes.

A. Gaskets or related service parts should not be assumed to be included with the Rinnai B3A2-4 unless they are specifically identified in the product packaging or parts description.

Burner service may require replacement of disturbed, compressed, heat-damaged, or deteriorated gaskets. Reusing an unsuitable gasket can prevent the combustion chamber or burner-box components from sealing correctly.

Confirm all required parts before beginning the repair.

A. Technicians commonly inspect the flame rod, ignition components, burner-box gaskets, fuel connections, wiring, seals, and nearby combustion components during burner replacement.

These parts work together to support ignition, flame detection, controlled combustion, and safe heater operation. Inspecting related components can help identify additional wear and reduce the likelihood of repeated service visits.

Only compatible Rinnai replacement parts should be installed.

A. Replacing the B3A2-4 may restore normal heater performance when a faulty or deteriorated burner assembly is causing the operating problem.

A correctly functioning burner supports reliable ignition, stable combustion, and proper heat production. However, installing a new burner will not correct problems caused by restricted venting, fuel-supply issues, dirty components, faulty sensors, electrical problems, or incorrect appliance setup.

Accurate diagnosis should be completed before replacement.

A. After installation, the heater should be checked for proper ignition, stable flame operation, secure connections, correct sealing, safe venting, and normal shutdown behavior.

The technician should also confirm that the appliance operates without fault codes, unusual odors, abnormal noise, or combustion irregularities. Any required leak, pressure, or combustion testing should be completed using the procedures specified for the heater model.

The appliance should not be returned to normal service until all safety and performance checks are complete.

A. The correct Rinnai B3A2-4 replacement burner is designed to match the fit and combustion requirements of the listed Rinnai heater models.

Burner dimensions, mounting points, flame characteristics, fuel delivery, ignition position, and sensor alignment are specific to the appliance design. A universal or modified burner may not operate correctly and could interfere with the heater's safety controls.

Confirming the appliance model and replacement part number helps support a dependable, serviceable repair.
