Trailer Valet JX 2K Side Mount Jack


Status: In Stock

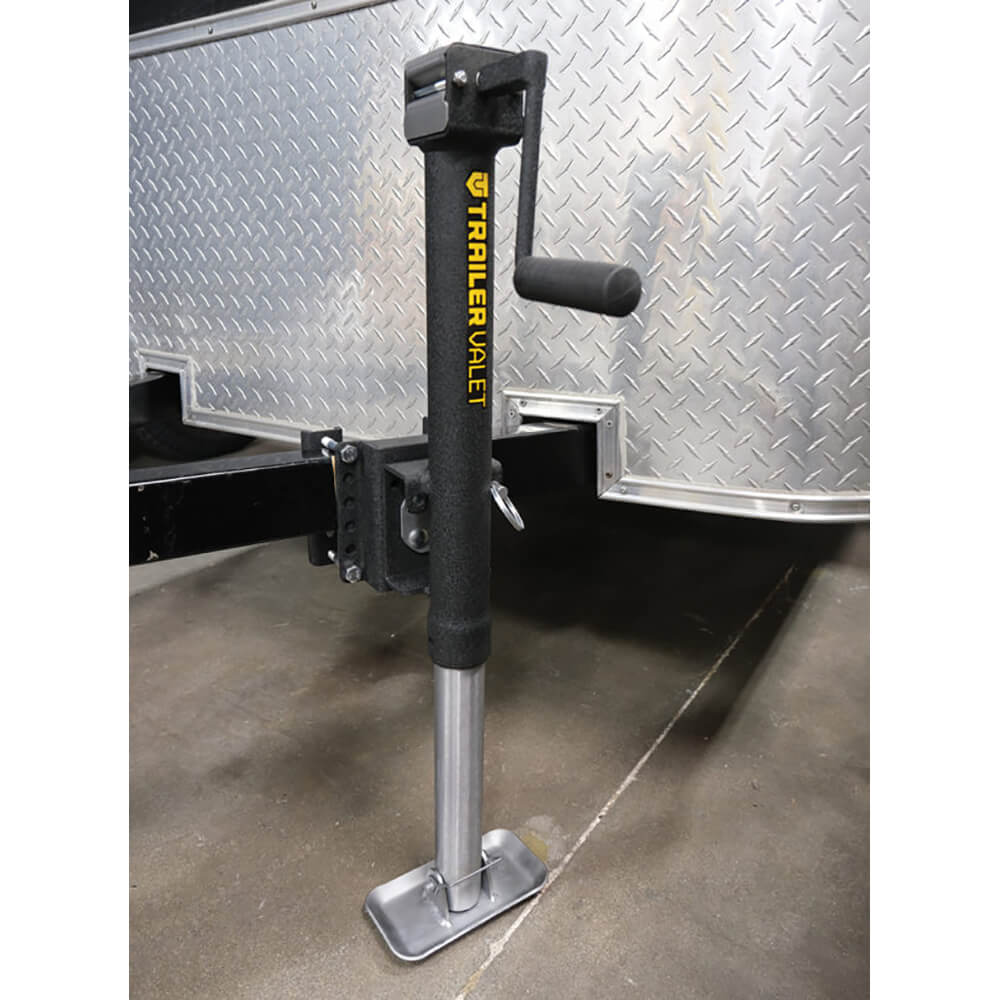

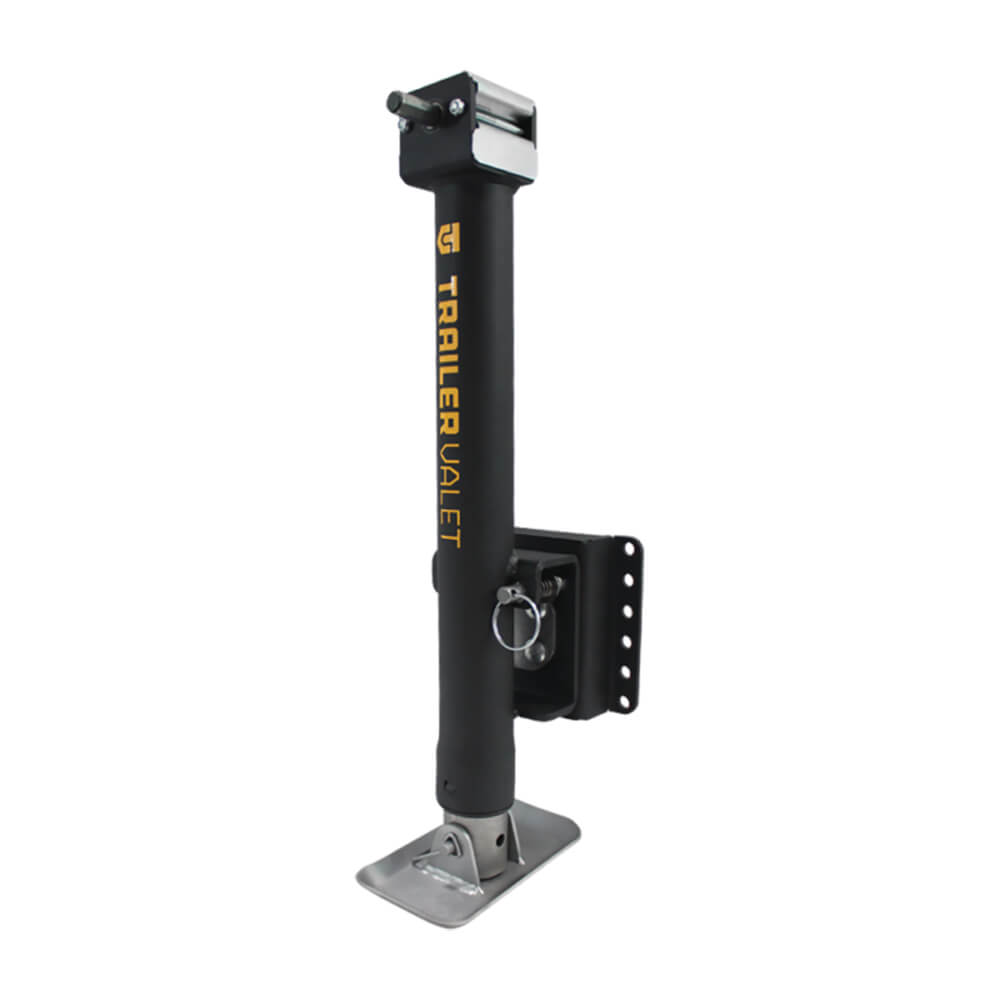

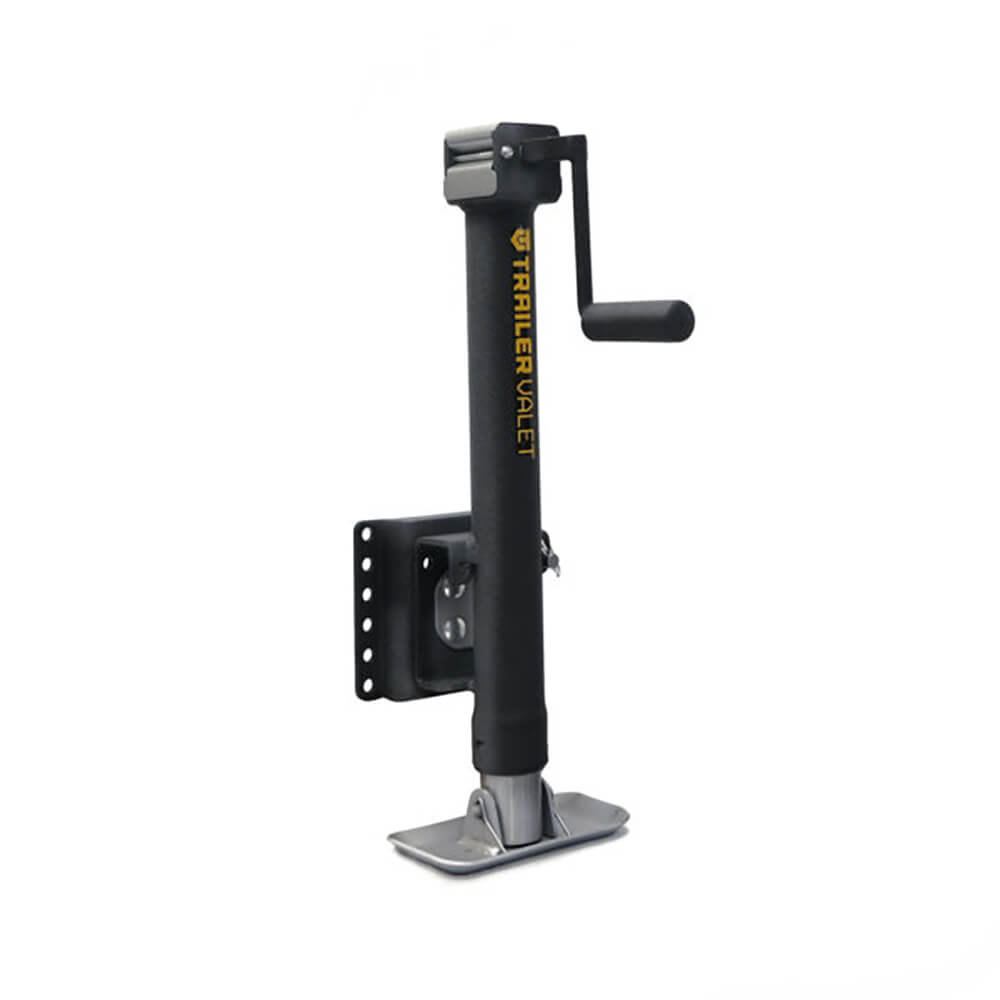

The Trailer Valet JX 2K Side is a manual hand-crank jack that has the versatility and capability to be powered by any 18-24V compact drill with the Trailer Valet Drill Attachment. It has a lift capacity of 2,000 lbs and its patented gear material composition delivers maximum efficiency while reducing heat retention. We’ve built in a sleeve fitting to offer the ultimate protection while ensuring a smooth glide every time. The JX 2K Side comes with a pull pin swivel bracket, weather resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer. It’s time to MOVE FORWARD and replace the standard jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most.

Standardly equipped with footplate and Trailer Valet Drill Attachment; Wheel Attachment available as an alternative.




How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JXC (Center Mount Jacks): 3K lift capacity and 5K static capacity

JXS (Side Mount Jacks): 2K lift capacity and 2K static capacity

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Caster wheels will be released mid-December and will be sold separately.

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks include three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a smaller bracket that can be mounted on a 4” frame and needs 6” of clearance to install. The JX5-S comes with a larger bracket that can be mounted on a 7” frame and needs at least 8” of clearance to install.

What is the best position for the JX5-S Mount Bracket to be installed?

The connection point should be in the low position (recommended). However, it can be flipped to the high position if needed.

How much does the JX weigh?

JX2-S: 23 lbs

JX5-S: 25 lbs

JX2-C: 14 lbs

JX5-C: 14 lbs

Can the JX be submerged in water?

The JX can be submerged in water for brief periods. However, we highly recommend rinsing the JX with fresh water after heavy salt water exposure.

Can the JX be stored outdoors?

Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

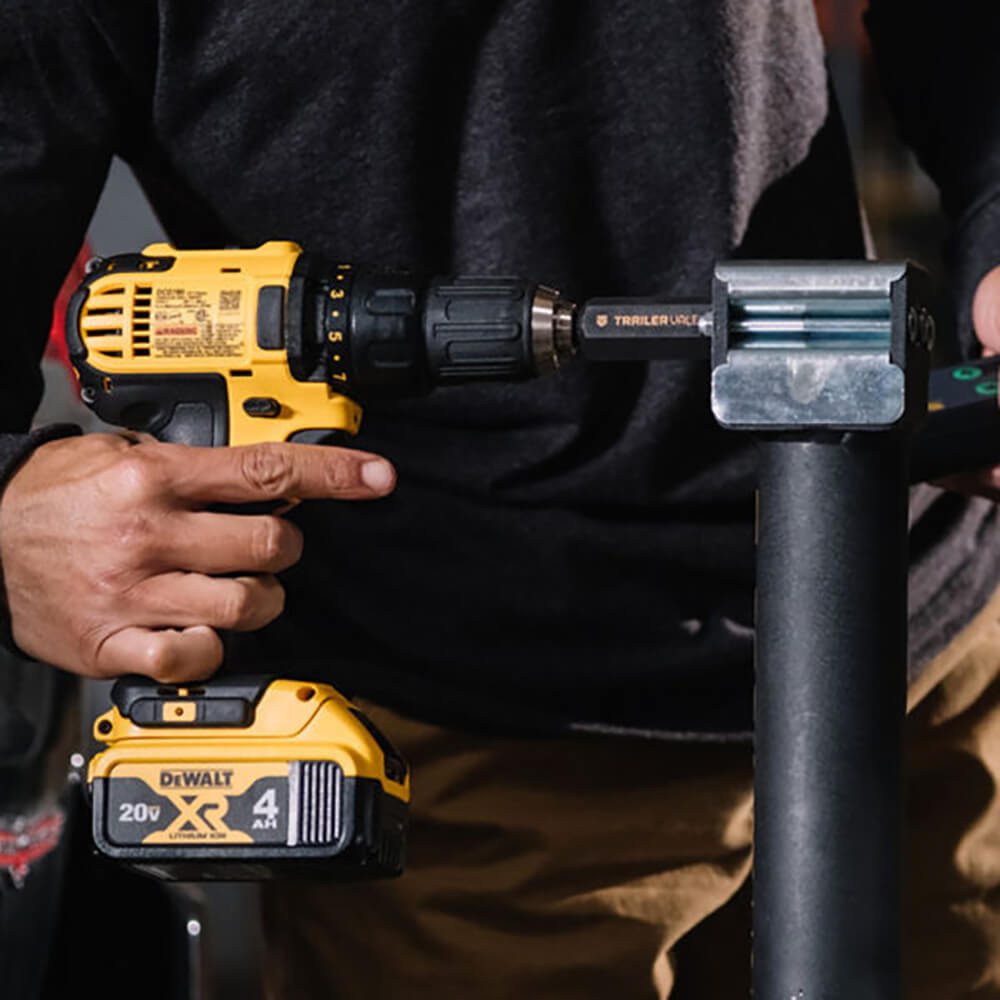

What kind of drill should I use with the JX?

Any 18-24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. We recommend the DeWalt brand



Static Capacity: 2,000 lbs
Installation: Requires 6 in of clearance
Lift Capacity (w/ Drill): 750 lbs
Lift Capacity (w/ Drill): 750 lbs
Retracted Height: 23 in
Extended Height: 37 in
Total Extension: 14 in
Trailer Lift: 7.5 in to 21.5 in
Outer Tube Diameter: 57 mm
Inner Tube Diameter: 51 mm
Clearance (bottom of bracket to top): 14 in
Clearance (mount point to top of jack): 11.5 in
Max Frame Size Fit: 4.75 in high, 3.75 in deep



Manuals: Operation and Installation

Owner Manual
