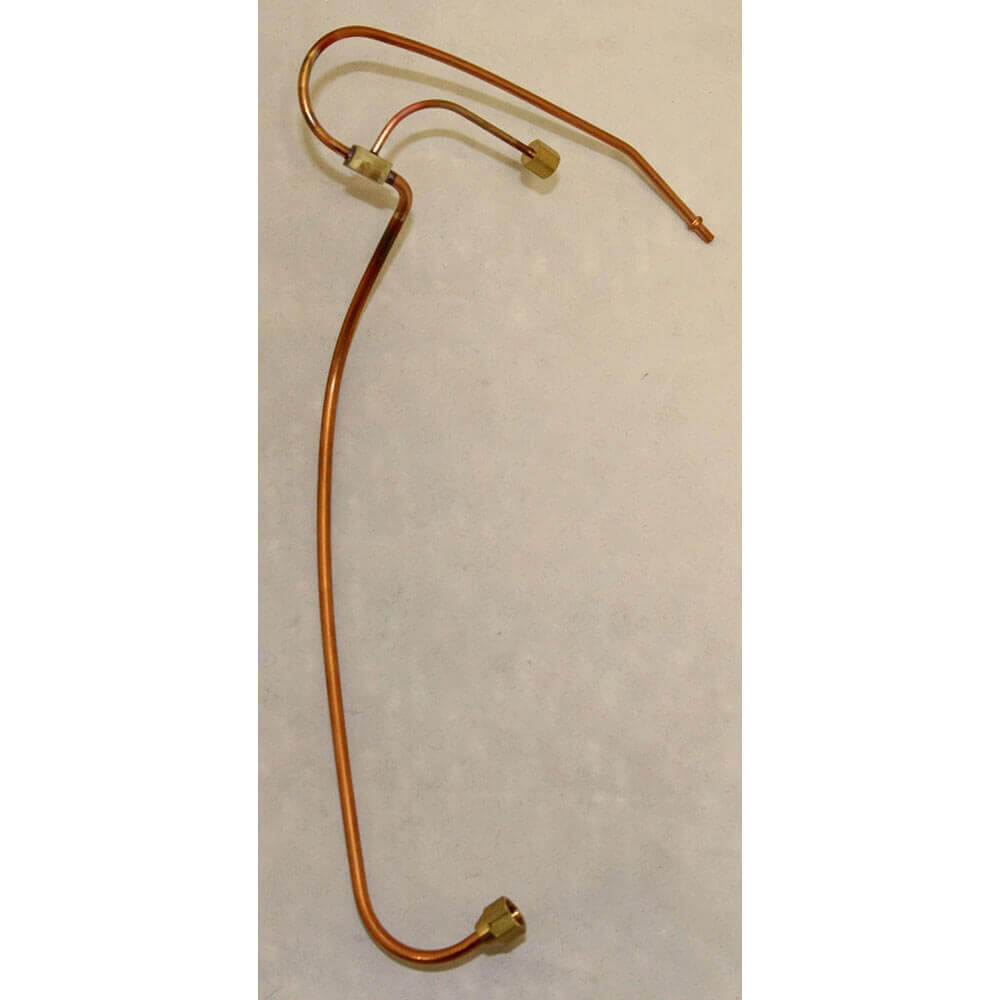

20470241 Fuel Pipe Assembly, L300 Zoom

Toyotomi Fuel Pipe Assembly

20470241

Models: Laser 300, Laser 300 (GR), Laser 301, Laser 302, Laser 303, Laser 304

Status: In Stock

US$84.99

Description

Description

The Toyotomi Fuel Pipe Assembly, part number 20470241, is a factory replacement fuel delivery component designed to route and supply fuel within compatible Toyotomi Laser 300 series oil-fired heaters for consistent combustion performance. Laser 300, Fuel Pipe Assembly is located next to Fuel Pump.

What’s included: One Toyotomi fuel pipe assembly.

Installation limits: Install only on approved Toyotomi heater models with power disconnected and fuel supply shut off; follow the Toyotomi service manual to ensure proper routing, sealing, and secure fuel connections.

Compatibility: Compatible with Toyotomi L300, L300-GR, L301, and L302 heater models.

Features

Features

  • Factory replacement fuel pipe assembly
  • Designed for Toyotomi Laser 300 series heaters
  • Routes fuel within the internal combustion system
  • Direct-fit component for specified models
  • Supports consistent fuel delivery and combustion
  • Used during fuel system service or repair

Specifications

Specifications

Product Type: Fuel pipe assembly
Brand: Toyotomi
Manufacturer Part Number: 20470241
Application: Fuel delivery in oil-fired heaters
Function: Routes and supplies fuel to combustion components
Compatible Models: Toyotomi L300, L300-GR, L301, L302



Proper fuel line installation is essential for safe combustion and reliable heater operation.



Support

Support


Product FAQ

Q. What does the Toyotomi 20470241 fuel pipe assembly do?

A. It routes and supplies fuel within compatible Toyotomi Laser 300 series heaters.

Q. Which heater models is this assembly compatible with?

A. It is compatible with Toyotomi L300, L300-GR, L301, and L302 models.

Q. Is this a direct replacement component?

A. Yes, it is a factory replacement fuel pipe assembly for the specified models.

Q. When should the fuel pipe assembly be replaced?

A. Replacement may be required if fuel leaks, delivery issues, or visible damage are present.

Q. Are special installation procedures required?

A. Yes, installation should follow the Toyotomi service manual to ensure proper sealing and safe operation.

Q. Why is proper fuel routing important?

A. Proper fuel routing ensures stable combustion and supports safe heater performance.
