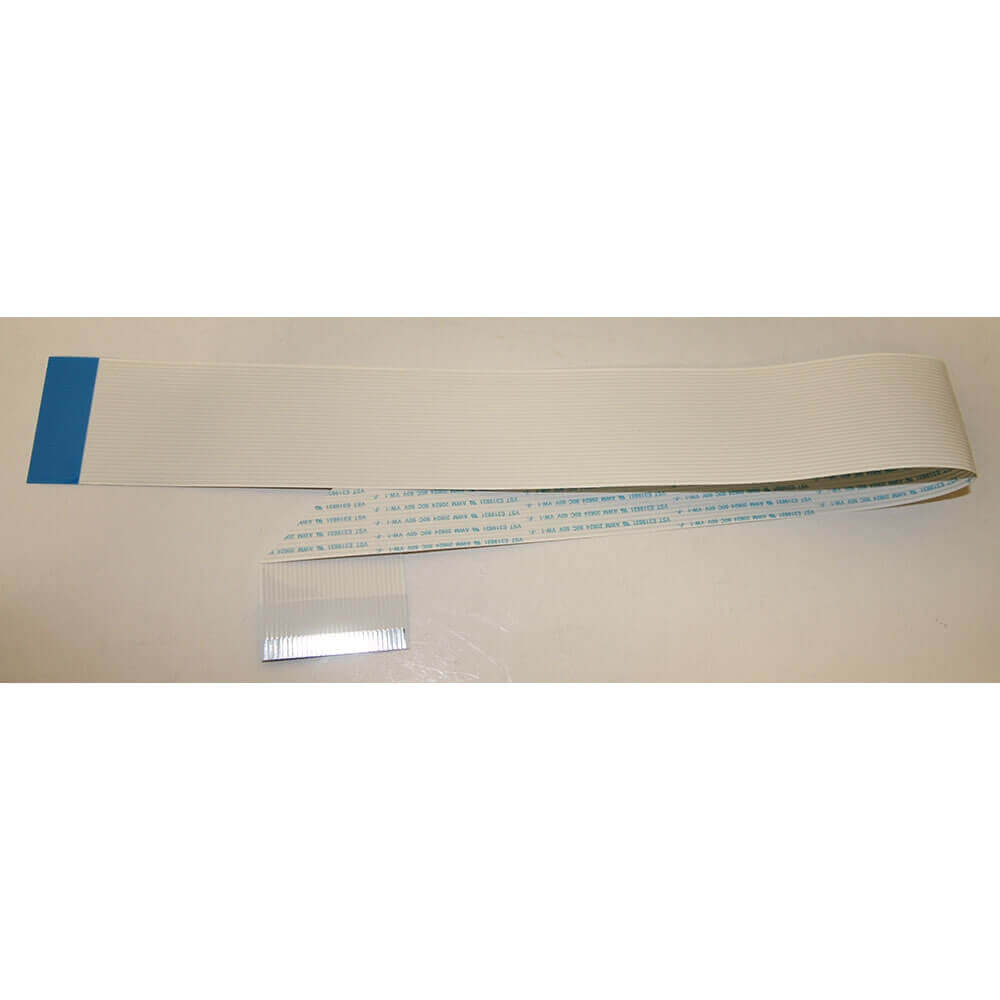

The Toyotomi Ribbon Cable for Laser 300, Laser 300-GR, Laser 301, and Laser 302, part number 20470275, is a replacement internal electrical connector cable used to transmit signals between control modules and display or sensor assemblies in select Toyotomi Toyostove heater models. It ensures proper communication between the heater’s main control board and its front panel or sensor components, helping the control system respond accurately to user inputs and operational feedback. This ribbon cable is manufactured to the original equipment specifications so it installs directly in place of a worn, damaged, or broken cable without modification.
This ribbon cable is intended for use during service or repair when the existing cable shows visible wear, frayed conductors, intermittent contact, or has been physically damaged by vibration, heat, or mishandling. A properly functioning ribbon cable supports reliable signal transmission, reduces the likelihood of control errors, and helps maintain consistent heater operation. Installation should follow the model’s service documentation to ensure correct orientation, secure connections to mating headers, and proper routing within the heater’s internal compartment.
What’s Included: One (1) Toyotomi ribbon cable for Laser 300, Laser 300-GR, Laser 301, and Laser 302 heater control systems.
Installation Limits: For replacement use only on specified Toyotomi heater models; install with the heater powered off and ensure the cable is routed and connected per the service instructions to avoid interference or pinching.
Compatibility: Compatible with Toyotomi Laser 300, Laser 300-GR, Laser 301, and Laser 302 heaters that require the 20470275 ribbon cable for internal signal connections.
Laser 300, Ribbon Cable is located next to Operation Panel.
