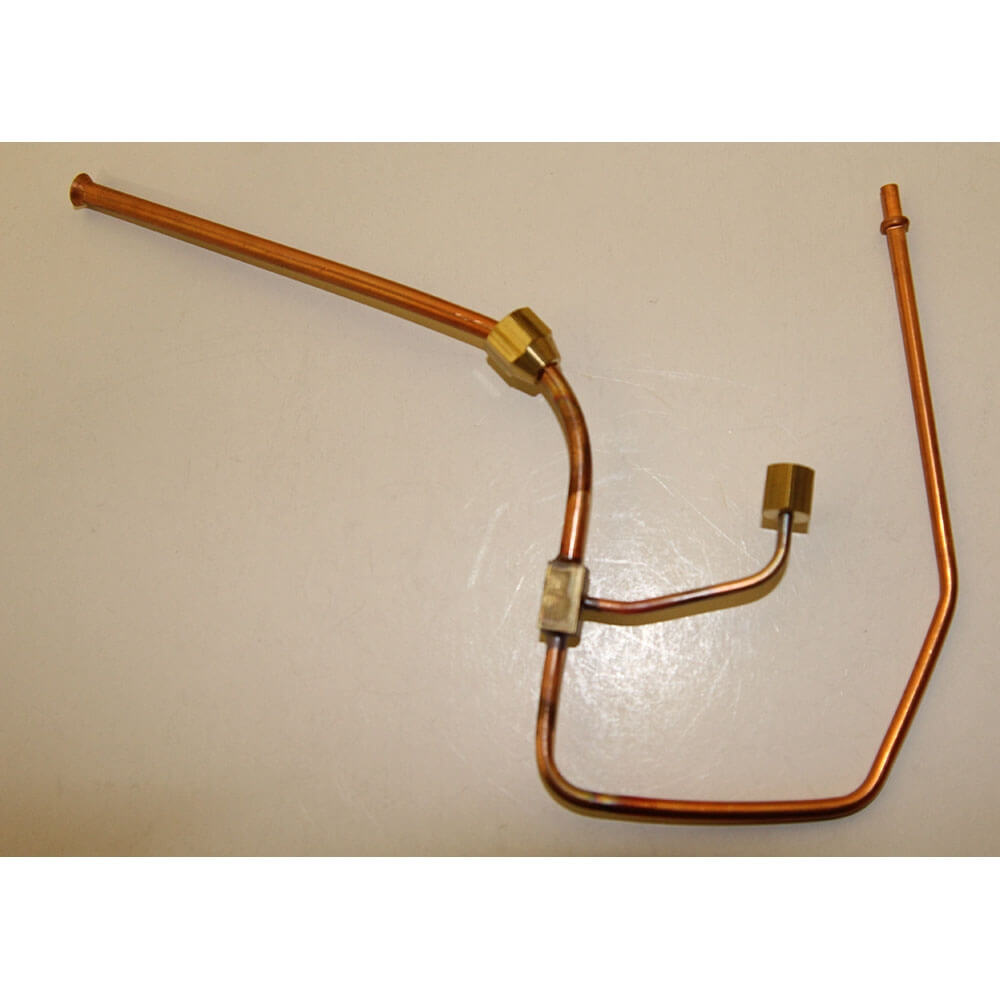

The Toyotomi Fuel Pipe Assembly L560, part number 20470441, is a replacement fuel delivery line designed for use in select Toyotomi Toyostove L560 series heaters to ensure proper and consistent fuel flow from the supply connection to the burner assembly. It provides a secure, kink-resistant pathway for fuel to travel within the heater’s internal system, helping maintain efficient combustion performance and reduce the risk of fuel delivery issues. This assembly is manufactured to match the original equipment specifications so it installs directly in place of the worn, damaged, or leaking factory-installed fuel pipe without modification.
This fuel pipe assembly is intended for service or repair when the existing fuel line shows signs of wear such as cracking, corrosion, leakage, or obstruction that can restrict flow and negatively impact heater operation. A properly routed and securely connected fuel line supports stable combustion and reduces the likelihood of interruptions or unsafe fuel delivery conditions. Installation should follow the model-specific service and parts diagram instructions to ensure correct orientation, secure fittings, and compliance with fuel system routing requirements.
What’s Included: One (1) Toyotomi fuel pipe assembly for L560 series heaters.
Installation Limits: For replacement use only on compatible Toyotomi Toyostove L560 heater models; install with the heater powered off and confirm all fuel connections are secured and leak-free.
Compatibility: Compatible with Toyotomi Toyostove L560 and related heater models requiring the 20470441 fuel pipe assembly.
