The Toyotomi Ribbon Cable for Circuit Board L560, part number 20470477, is a flexible electrical connection cable used in select Toyotomi Toyostove heaters to link the main control board to internal components. It transmits electrical signals between the circuit board and other parts of the heater’s control system to support proper operation. Designed to match original equipment specifications, this ribbon cable installs directly without modification when replacing a worn, damaged, or intermittent connector cable.
This ribbon cable is intended for use during service or repair when the existing cable shows signs of broken conductors, bent pins, frayed ends, or intermittent connectivity that can lead to operational faults or communication errors between control components. Correct installation requires the heater to be powered off and the cable routed and seated per the model’s wiring diagram to ensure secure, reliable connections. Following manufacturer guidelines for cable placement helps maintain signal integrity and prevents interference with moving parts or heat sources.
What’s Included: One (1) Toyotomi ribbon cable compatible with L560 circuit board assemblies.
Installation Limits: For electrical control circuit use only; install with the heater powered off and ensure all connectors are fully seated and routed as shown in the model parts and wiring diagrams to avoid interference or damage.
Compatibility: Compatible with Toyotomi Toyostove models that use the L560 circuit board and require the 20470477 ribbon cable for interconnection between control board and internal components.

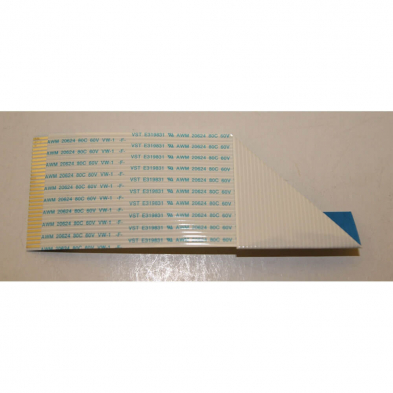

Laser 560, Ribbon Cable Circuit Board is located next to Ribbon Cable B.
