20470512 Main Circuit Board, L560B Zoom

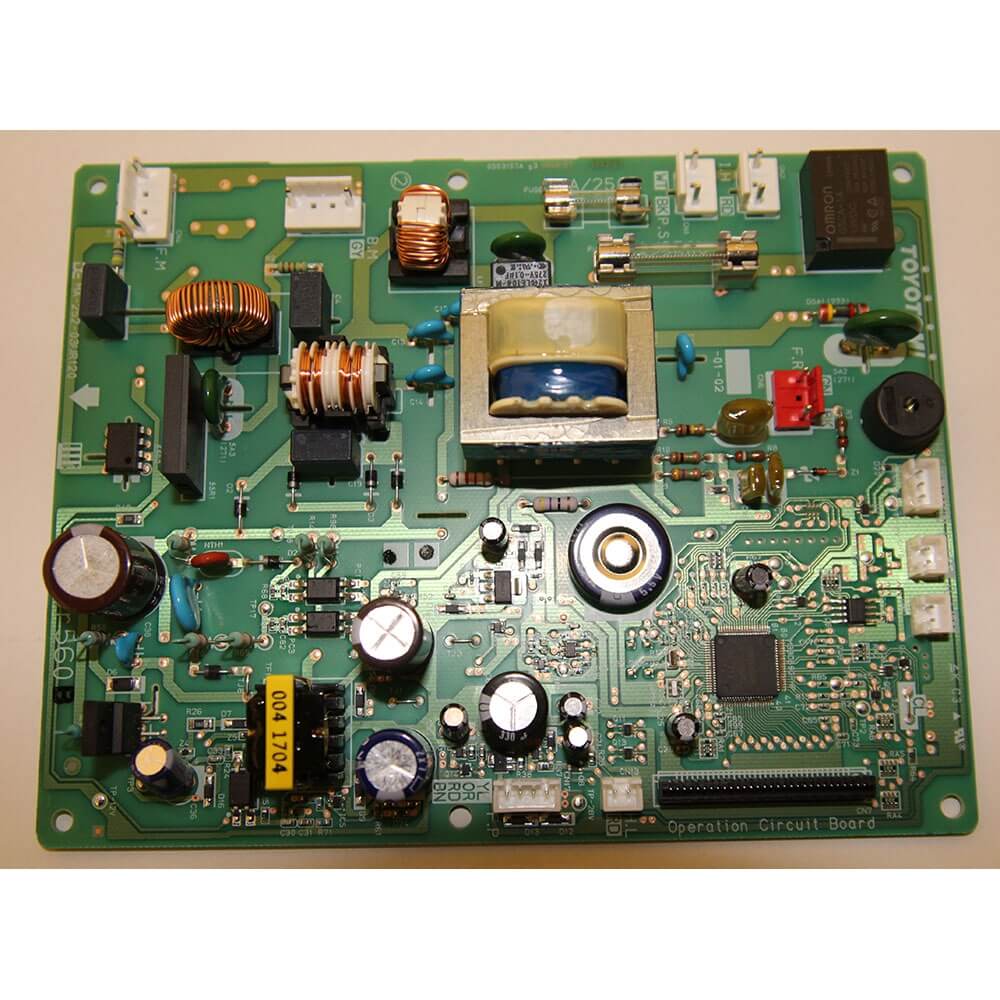

Toyotomi Main Circuit Board (Type B)

20470512

Models: Laser 560 (Type B)

Status: In Stock

US$234.99

Description

Description

The Toyotomi Main Circuit Board, part number 20470512, is an OEM electronic control board engineered to regulate heater operation, safety monitoring, and system logic, restoring proper functionality and dependable performance in compatible Toyotomi oil heaters.

What’s included: One (1) Toyotomi main circuit board.

Installation limits: Intended for replacement during heater service; installation must be performed with electrical power disconnected and according to Toyotomi wiring and service procedures.

Compatibility: Compatible with the Toyotomi L560B oil heater model.

Features

Features

  • OEM Toyotomi electronic main circuit board
  • Controls heater startup, operation, and safety functions
  • Manages communication between heater components
  • Manufactured to original Toyotomi electrical specifications
  • Direct-fit replacement for the L560B model
  • Essential for safe and reliable heater operation

Specifications

Specifications

Product Type: Main circuit board
Brand: Toyotomi
Manufacturer Part Number: 20470512
Application: Oil heater electronic control system
Function: Controls heater operation, monitoring, and safety logic
Compatible Models: L560B



Correct circuit board replacement and precise wiring reconnection are essential for safe heater operation and reliable performance.



Support

Support


Product FAQ

What does the Toyotomi 20470512 main circuit board control?

It manages heater operation, safety monitoring, and system logic.

Which heater model uses this circuit board?

It is designed specifically for the Toyotomi L560B oil heater.

Is this an OEM Toyotomi replacement part?

Yes. This is an OEM Toyotomi main circuit board manufactured to original specifications.

Can a faulty circuit board stop the heater from working?

Yes. A malfunctioning circuit board can prevent normal heater operation.

Is this board intended for new heater installations?

No. It is intended as a replacement component for an existing heater.

Should electrical power be disconnected before replacement?

Yes. Electrical power must be disconnected before servicing electronic components.
