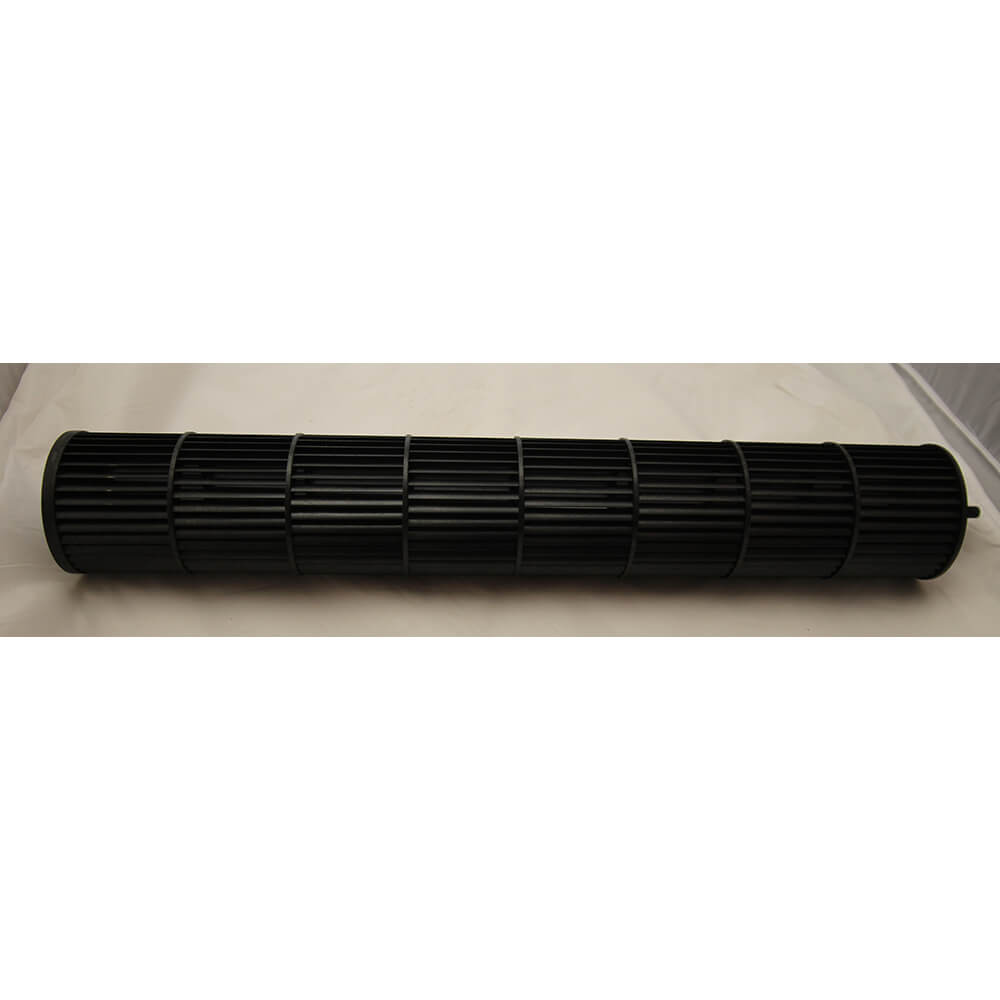

The Toyotomi Fan Cross Assembly, part number 20477004, is a replacement cross-flow blower wheel designed for use in compatible Toyotomi heat convector heaters. It works with the heater’s fan motor to move room air across the internal heat exchanger and distribute heated air into the space. This assembly is intended as a direct service replacement when the original fan wheel becomes worn, damaged, or no longer maintains proper airflow.

A properly functioning fan cross assembly helps support steady air movement through the heater cabinet, which contributes to consistent heat distribution and normal heater operation. If the original component becomes bent, obstructed, or imbalanced, airflow can be reduced and overall circulation performance may decline. Installation should follow the heater’s service instructions to ensure correct alignment with the fan motor and secure placement within the heater housing.

What’s Included: One (1) Toyotomi fan cross assembly.

Installation Limits: For replacement use only on compatible Toyotomi heat convector models; install with electrical power disconnected and ensure correct alignment with the motor and housing components.

Compatibility: Compatible with Toyotomi HC-20, HC-20B, HC-190, and HC-190B heat convector models.

• Replacement cross-flow fan assembly for Toyotomi heat convector heaters
• Part number 20477004 for correct component identification
• Designed to move air across the internal heat exchanger
• Supports warm air circulation through the heater cabinet
• Direct-fit replacement for specified HC-series models
• Used when original fan wheel is worn, bent, or imbalanced
• Installs with the matching fan motor and internal blower components

Install this fan cross assembly with power disconnected and verify correct alignment to maintain stable airflow and consistent heat distribution.
