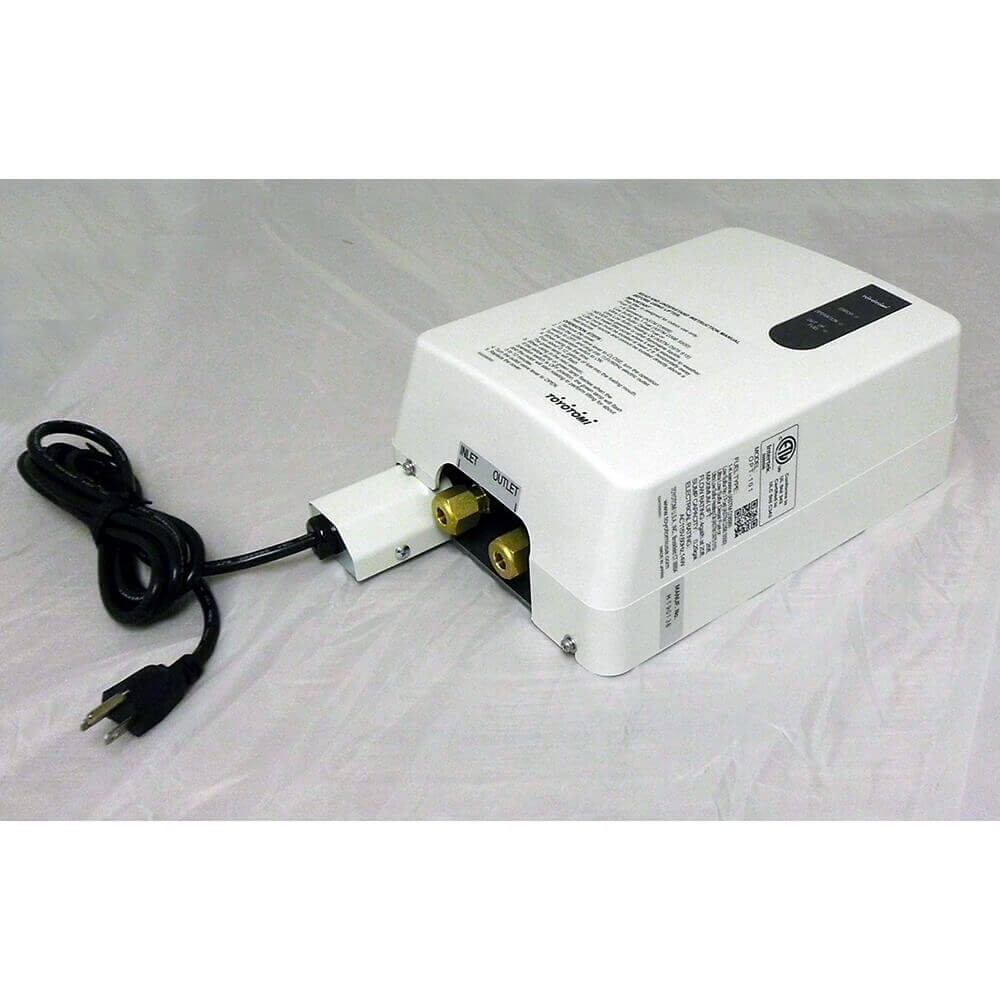

Toyotomi Lifter Pump (Opt-101)

20477600

Models: OPT-101 Lifts fuel from lower or underground tanks to heaters.

Status: In Stock

US$533.99

Description

Description

The Toyotomi OPT-101 Fuel Lifter Pump (Part #20477600) is designed for installations where the fuel tank is located below the heater—such as underground or outdoor tank setups. It automatically lifts kerosene, #1 fuel oil, or ultra-low sulfur diesel to supply Toyotomi and Toyostove vented heaters with a steady, gravity-fed fuel flow.

Automatic recovery ensures continuous operation if the fuel supply is temporarily interrupted, and built-in safety controls protect against overflow or air lock. The OPT-101 features a durable steel housing, integrated motor assembly, and compact design suitable for indoor mounting near the heater.

This lifter is intended for indoor installation only. Electrical components are not waterproof, and the unit should not be installed in cold or damp environments. All installations must comply with NFPA 31 and NFPA 70 standards.

Fuel Compatibility: ASTM D3699 1-K Kerosene, ASTM D396 Low Sulfur No.1 Fuel Oil, ASTM D975 Ultra-Low Sulfur Diesel (ULSD), or Ultra-Low Sulfur Heating Oil (ULSHO). Never use gasoline.

Features

Features

  • Used to lift fuel when tank is underground or below heater level
  • Automatic recovery maintains consistent fuel delivery
  • Maximum lift height: 26 ft (8 m)
  • Durable compact design for indoor installation
  • Compatible with Toyotomi, Toyostove, and Oil Miser heaters
  • Supports kerosene, No.1 fuel oil, ULSD, and ULSHO fuels
  • Easy-to-service internal components and clear operation indicator
  • Meets NFPA 31 and NFPA 70 installation codes

Specifications

Specifications

Part Number 20477600
Model OPT-101
Product Type Fuel Lifter Pump
Maximum Lifting Height 26 ft (8 m)
Rated Power 14 W
Reservoir Capacity 0.29 gal (1.1 L)
Weight 8.0 lbs (3.6 kg)
Installation Type Indoor only (non-weatherproof)
Fuel Type 1-K Kerosene, No.1 Fuel Oil, ULSD, ULSHO
Application Supplies fuel to heaters from underground or remote tanks
Brand Toyotomi
Country of Origin Japan

Support

Support


Manuals - Learn More:
OWNER INSTALLATION AND OPERATION MANUALS:

Product FAQs:

Q. What is the Toyotomi OPT-101 Fuel Lifter Pump used for?

A. The OPT-101 is used to lift fuel from an underground or low-positioned tank to a heater located above the tank. It ensures consistent fuel flow to Toyotomi and Toyostove vented heaters.

Q. What is the maximum fuel lift height?

A. The lifter pump can raise fuel up to 26 ft (8 m) from the main tank to the heater intake.

Q. Can the OPT-101 be installed outdoors?

A. No. The OPT-101 is for indoor use only. It contains electrical components that are not waterproof and must be protected from moisture and freezing conditions.

Q. What type of fuel can be used with the OPT-101?

A. Only use clear or red kerosene (ASTM D3699 1-K), low sulfur No.1 fuel oil, ultra-low sulfur diesel (ULSD), or ultra-low sulfur heating oil (ULSHO). Never use gasoline.

Q. Does the OPT-101 have automatic recovery?

A. Yes. The unit features automatic recovery, allowing it to resume fuel transfer automatically after temporary interruptions such as airlocks or brief fuel shortages.
