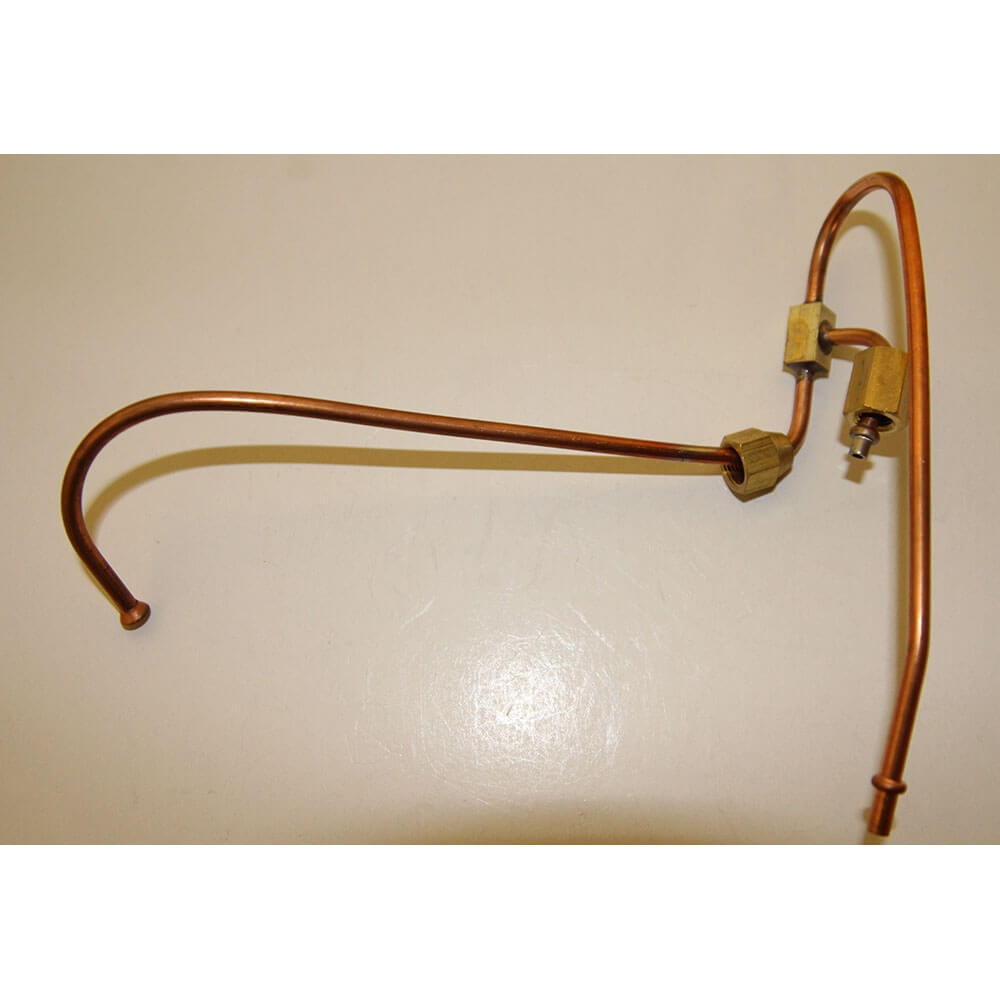

Toyotomi Fuel Pipe Assembly

The Toyotomi Fuel Pipe Assembly, part number 20479541, is a replacement fuel delivery component designed for compatible Toyotomi Toyostove Laser heaters. It routes fuel from the heater’s fuel system to the burner assembly as part of the internal fuel supply pathway.

This pipe assembly is positioned near the fuel pump and fuel sump area of the heater where it helps transfer fuel through the system to support normal burner operation. Proper fuel routing through this component supports consistent heater startup and operation.

What’s Included: One Toyotomi fuel pipe assembly, part number 20479541.

Installation Limits: This component must be installed only in compatible Toyotomi heater models and connected to the designated fuel system fittings within the heater assembly.

Compatibility: Compatible with Toyotomi Toyostove Laser 30 and Laser 30 (BK) vented heater models.

Fuel Pipe Assembly is located next to Fuel Pump and Fuel Sump.

• Replacement fuel pipe assembly for heater fuel routing.
• Designed for Toyotomi Toyostove Laser heater models.
• Transfers fuel within the internal heater fuel system.
• Installed near the fuel pump and fuel sump area.
• Direct replacement component for service maintenance.
• Matches Toyotomi part number 20479541.

This replacement pipe assembly is used during heater service when the original fuel routing component requires replacement to maintain proper fuel flow within the heater system.
