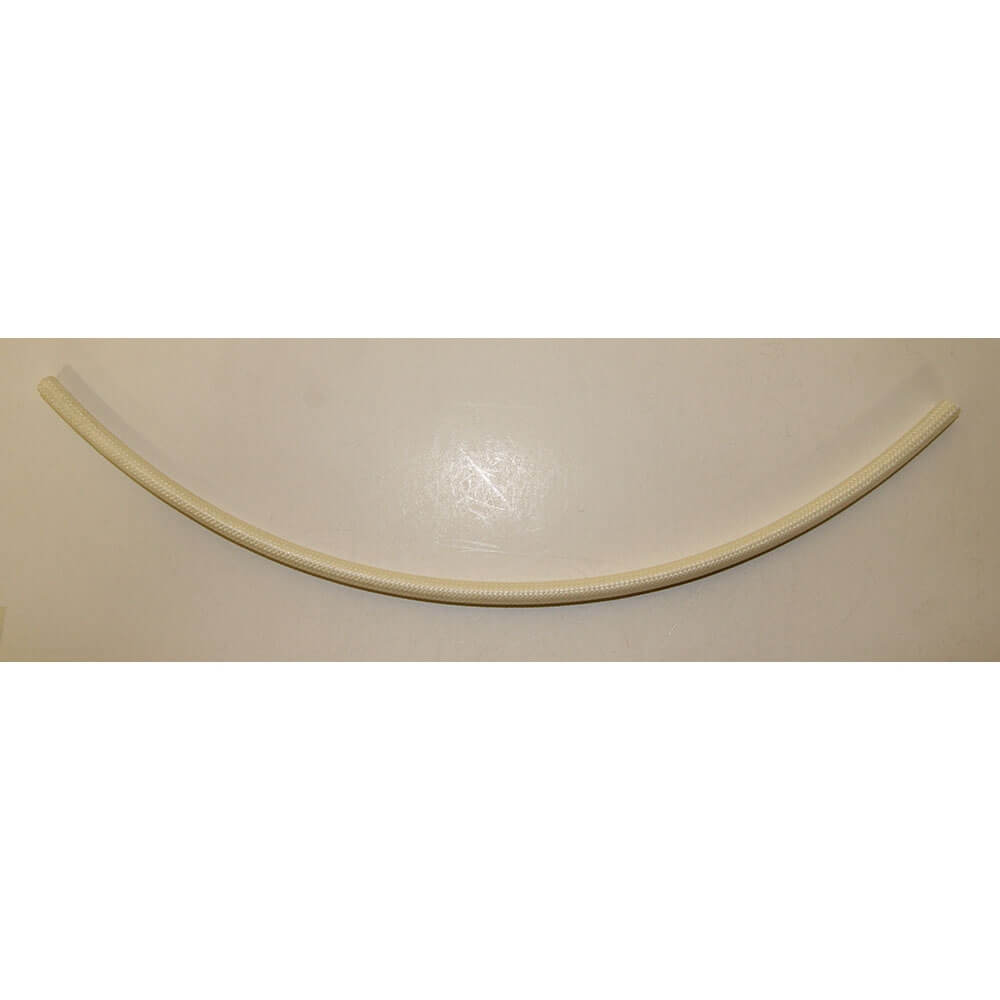

20479586 Draft Tube, L30 Zoom

Toyotomi Draft Tube

20479586

Models: Laser 30, Laser 30 (BK)

Status: In Stock

US$12.99

Description

Description

The Toyotomi Draft Tube, part number 20479586, is an internal combustion component used in Toyotomi Toyostove Laser 30 heating systems. This part is positioned near the fuel sump within the heater assembly and forms part of the airflow path used during burner operation. Proper placement of the draft tube helps guide combustion airflow through the burner chamber.

Within the Laser 30 heater, the draft tube assists with directing air movement around the combustion area so fuel vapors burn in a controlled manner. Maintaining the correct airflow path supports stable flame formation and consistent heater operation. Replacing a worn or damaged draft tube restores the original airflow geometry used by the burner system.

What’s Included: One Toyotomi draft tube component for Laser 30 heater assemblies.

Installation Limits: Intended for installation inside compatible Toyotomi heater assemblies; access to internal burner components is required for proper installation.

Compatibility: Compatible with Toyotomi Toyostove Laser 30 and Laser 30 (BK) direct-vent heater models.

Draft Tube is located next to Fuel Sump.



Features

Features

  • Replacement draft tube designed for Toyotomi Toyostove Laser 30 heater assemblies.
  • Forms part of the internal airflow pathway within the burner chamber.
  • Helps guide combustion air movement around the fuel sump area.
  • Supports proper flame stability during heater operation.
  • Direct replacement component matching the original Laser 30 internal configuration.
  • Used during service maintenance when the original draft tube becomes damaged or worn.
  • Designed for use in Laser 30 and Laser 30 (BK) direct-vent heater systems.

Specifications

Specifications

Product Type: Heater draft tube component
Brand: Toyotomi
Manufacturer Part Number: 20479586
Application: Internal airflow component for Toyostove Laser 30 heaters
Function: Directs combustion airflow within the burner chamber
Compatible Models: Toyotomi Toyostove Laser 30, Laser 30 (BK)



This draft tube helps maintain proper airflow inside the Laser 30 combustion system.



Support

Support


Product FAQ

Q. What does the Toyotomi 20479586 draft tube do?

A. The draft tube directs airflow through the combustion chamber of the heater. This controlled air movement supports proper fuel vapor combustion and stable burner operation.

Q. Where is the draft tube located in the Laser 30 heater?

A. The draft tube is positioned inside the heater assembly near the fuel sump and burner chamber. It forms part of the internal airflow structure used during combustion.

Q. Which heater models use the 20479586 draft tube?

A. This draft tube is designed for Toyotomi Toyostove Laser 30 heater systems, including both Laser 30 and Laser 30 (BK) models.

Q. Why would the draft tube need to be replaced?

A. Replacement may be required if the component becomes damaged, warped from heat exposure, or obstructed. Maintaining the correct airflow pathway helps the burner operate properly.

Q. Is the draft tube visible from outside the heater?

A. No. The draft tube is an internal component located inside the heater’s combustion assembly and is only visible when internal service panels and burner components are removed.

Q. Does the draft tube affect heater performance?

A. Yes. Proper airflow through the combustion chamber helps maintain stable flame characteristics and consistent heater output, which the draft tube helps regulate.
