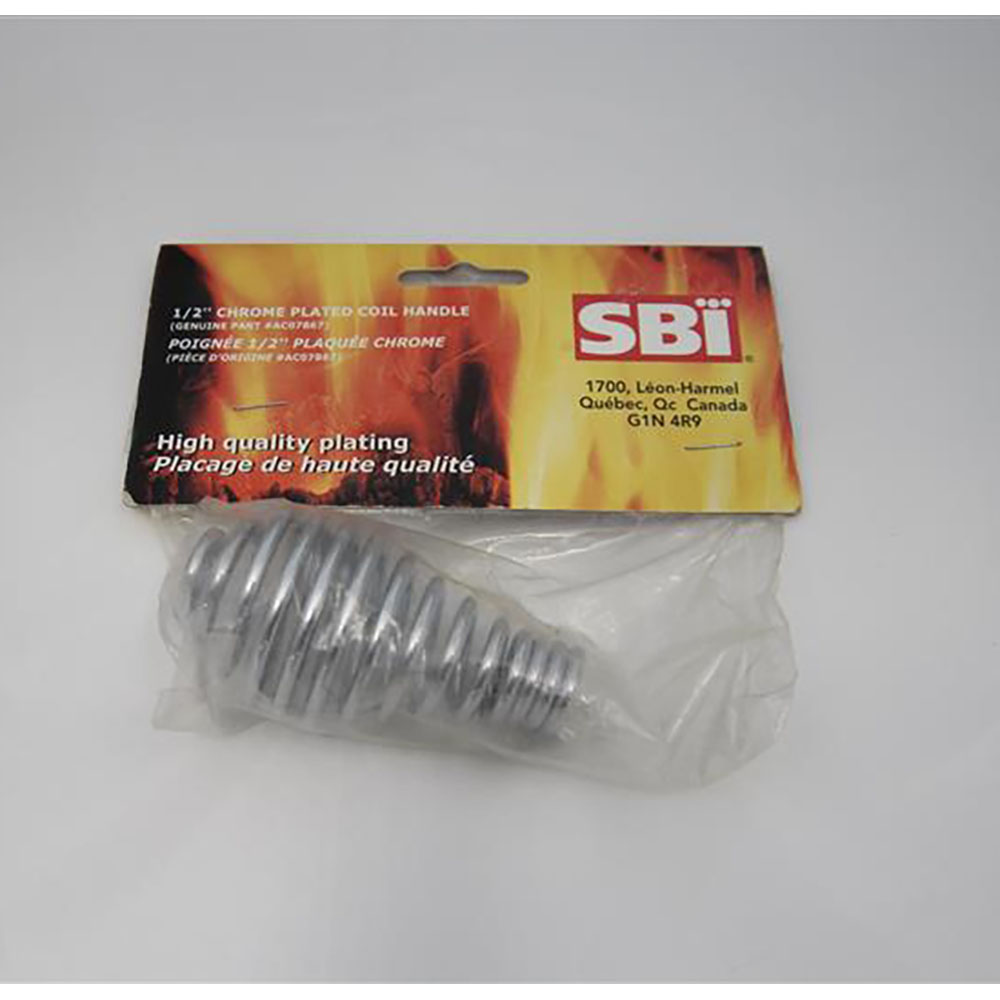

Coil Handle Chrome 1/2" Zoom

Osburn, Coil Handle Chrome 1/2"

45247

Status: In Stock

US$POA

Description

Description

The Osburn Coil Handle Chrome 1/2", part number 45247, is a replacement chrome-plated coil handle for compatible Osburn wood stoves and inserts. The coil handle fits onto the 1/2-inch diameter handle rod of the stove door assembly, providing a chrome-finished grip point for operating the door during stove use.

The 1/2-inch diameter rod size is the larger of the two coil handle rod diameters used across the Osburn wood stove product line, and is the rod diameter found at the door handle position across a wide range of Osburn stove models including the 900, 1100, 1500, 1600, 1800, 2000, 2200, 2300, and 2400 series. The chrome plating provides a bright metallic finish that coordinates with brushed nickel and other chrome-finish hardware options available across the Osburn product line.

Coil handles on Osburn wood stoves provide a thermal break between the metal handle rod and the user's hand through the open coil spring construction, allowing air to circulate around the spring body and reducing heat conduction from the rod to the grip surface during operation.

This characteristic allows the door to be operated without protective gloves under normal operating conditions. Coil handles are subject to wear, deformation, and finish deterioration over time from repeated thermal cycling and regular use, and replacement of a damaged or degraded handle restores safe and comfortable door operation. The 45247 is the Rural Energy SKU for the chrome 1/2-inch coil handle, which corresponds to the SBI part AC07867 in the broader Osburn parts ecosystem. Black and brass-plated finish options are also available for the same 1/2-inch rod diameter.

What's Included: One Osburn chrome-plated coil handle, part number 45247, for 1/2-inch diameter handle rods on compatible Osburn wood stove and insert models.

Installation Limits: This coil handle is sized for 1/2-inch diameter handle rods only and must not be used on handle rods of a different diameter. All handle replacement must be performed only when the stove is fully cooled. Compatibility with a specific model must be confirmed against the owner's manual or parts diagram for the appliance being serviced.

Compatibility: Compatible with Osburn wood stoves and inserts that use a 1/2-inch diameter handle rod at the door handle position, including models in the 900, 1100, 1500, 1600, 1800, 2000, 2200, 2300, and 2400 series. Compatibility should be confirmed against the parts diagram for the specific Osburn model being serviced.

Features

Features

  • Replacement chrome-plated coil handle for 1/2-inch diameter door handle rods on compatible Osburn wood stoves and inserts
  • Open coil spring construction provides a thermal break between the handle rod and the grip surface, reducing heat conduction during door operation
  • Chrome finish coordinates with brushed nickel and other chrome-finish hardware options available across the Osburn wood stove product line
  • The 1/2-inch rod diameter is the larger of the two coil handle rod sizes used across the Osburn line and is found at the door handle position on a wide range of Osburn stove series
  • Compatible with Osburn 900, 1100, 1500, 1600, 1800, 2000, 2200, 2300, and 2400 series wood stoves and other compatible models using a 1/2-inch diameter door handle rod
  • Sized for 1/2-inch diameter handle rods only — must not be used on 1/4-inch or other diameter handle rods

Specifications

Specifications

Part Number: 45247
Brand: Osburn
Part Type: Coil Handle
Finish: Chrome Plated
Rod Diameter: 1/2 inch
Application: Door Handle Rod — Compatible Osburn Wood Stoves and Inserts
Compatible Series: Osburn 900, 1100, 1500, 1600, 1800, 2000, 2200, 2300, 2400 and Other Compatible Models
Available Finish Alternatives: Black, Brass Plated



The Osburn 45247 Coil Handle Chrome 1/2" is a replacement chrome-plated coil handle for 1/2-inch diameter door handle rods on compatible Osburn wood stoves and inserts, providing a heat-reducing chrome-finished grip point for safe and comfortable door operation across a wide range of Osburn stove series.



Support

Support


Product FAQ

What is the function of the 1/2-inch coil handle on an Osburn wood stove?

The 1/2-inch coil handle fits onto the door handle rod and provides the grip point used to open and close the stove door during operation. The open coil spring construction allows air to circulate around the spring body, reducing the conduction of heat from the metal handle rod to the user's hand during operation. This heat-reducing characteristic allows the door to be operated without protective gloves under normal operating conditions, providing convenient access to the firebox for wood loading and fire management.

What is the difference between the 1/2-inch coil handle and the 1/4-inch coil handle used on Osburn stoves?

The 1/2-inch and 1/4-inch coil handles differ in the diameter of the handle rod bore they are sized to fit. The 1/2-inch coil handle fits the larger diameter rod found at the door handle position on a wide range of Osburn stove models. The 1/4-inch coil handle fits the smaller diameter rod found at the air control handle position on compatible models. The two sizes are not interchangeable — the correct rod diameter for the specific handle position being serviced must be confirmed before ordering a replacement handle.

Which Osburn stove models are compatible with the 45247 chrome 1/2-inch coil handle?

The chrome 1/2-inch coil handle is compatible with Osburn wood stove models that use a 1/2-inch diameter door handle rod, including the 900, 1100, 1500, 1600, 1800, 2000, 2200, 2300, and 2400 series stoves, as well as other compatible Osburn and SBI-manufactured models using the same rod diameter. Compatibility with a specific model should always be confirmed against the parts diagram in the owner's manual for the appliance being serviced to ensure the correct handle is selected for the specific rod position.

What other finish options are available for the Osburn 1/2-inch coil handle?

The Osburn 1/2-inch coil handle is available in three finish options for the same rod diameter: chrome plated as part number 45247, black as part number AC07868, and brass plated as part number AC07860. The finish selected should coordinate with the overall finish configuration of the stove's door hardware and trim components. All three finish options serve the same functional purpose as a door handle grip on compatible 1/2-inch rod positions across the Osburn stove range.

When should the door coil handle on an Osburn wood stove be replaced?

The door coil handle should be replaced when the spring coils have deformed or spread to the point where the handle no longer sits securely on the rod, when the chrome finish has deteriorated to the point where the underlying metal is exposed and the grip surface is uncomfortable, or when the handle has been physically damaged such that it cannot be gripped safely. A loose or damaged coil handle presents a burn hazard during stove operation and should be replaced before continued use of the stove.

What precautions must be taken when replacing the coil handle on an Osburn wood stove?

All handle replacement must be performed only when the stove is fully cooled to ambient temperature. The door handle rod and all surrounding door assembly components retain heat for an extended period after the stove has been in operation, and contact with these components while the stove is hot poses a severe burn hazard. The stove must not be operated with a missing or damaged door handle, as this prevents safe access to the firebox and creates a handling hazard during wood loading and fire management.
