Viessmann Neutralization Unit, WB1, WB2-24/32

The Viessmann Neutralization Unit WB1/WB2, part number 7134231, is a condensate treatment component designed for use with gas-fired condensing boilers. It neutralizes acidic condensate produced during operation, helping protect drainage systems and piping from corrosion.

This unit uses a granulate-based neutralization process that raises condensate pH to a safer level before discharge. The horizontal installation design allows for wall or floor mounting, and it integrates into condensate drainage lines to ensure consistent treatment during boiler operation.

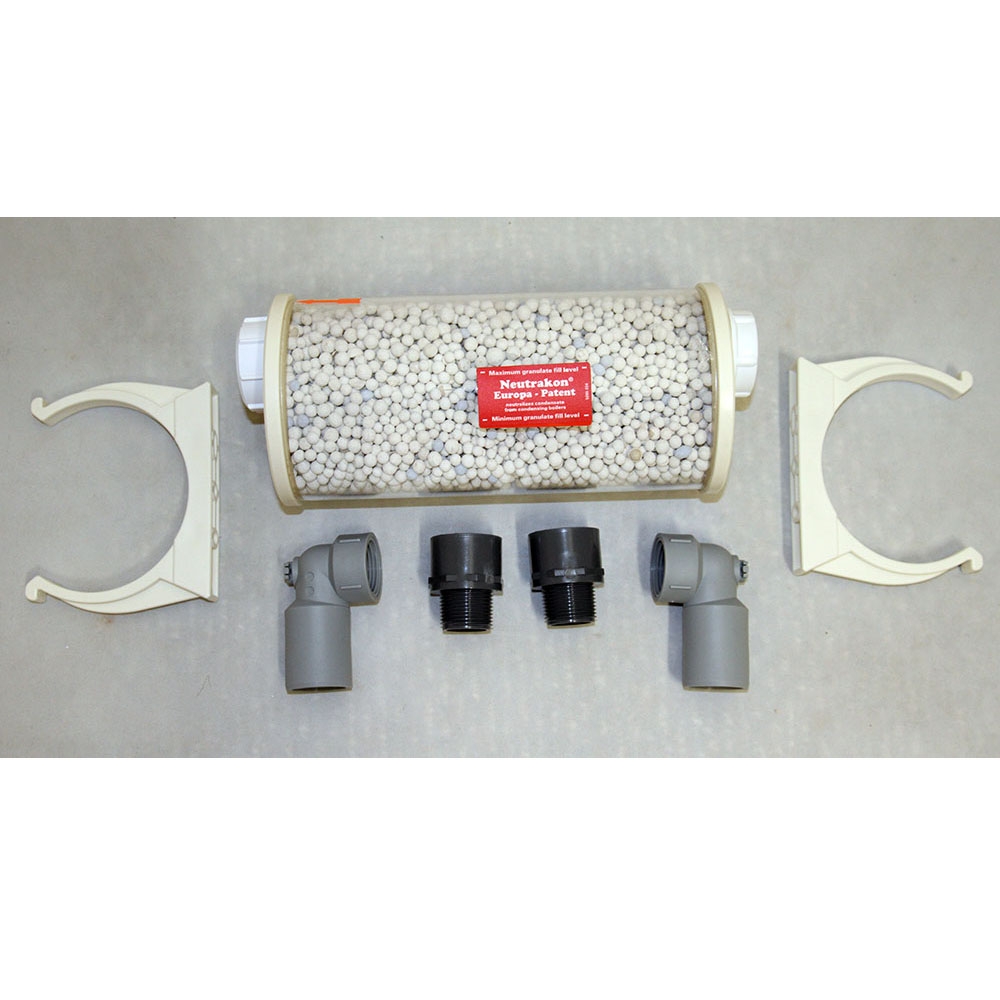

What’s Included: Neutralization unit housing, internal neutralization media chamber, and mounting brackets

Installation Limits: Must be installed horizontally below the boiler condensate outlet with proper slope and drainage; requires non-metallic piping and protection from freezing conditions

Compatibility: Compatible with Viessmann Vitodens and related condensing boiler models within WB1 and WB2 series ranges

• Neutralizes acidic condensate to protect drainage systems
• Granulate-based filtration raises pH to non-corrosive levels
• Designed for integration with condensing boiler systems
• Horizontal installation supports wall or floor mounting
• Helps meet local code requirements for condensate treatment
• Serviceable design allows periodic granulate replacement

This neutralization unit provides an effective solution for managing condensate discharge from high-efficiency boilers, helping maintain system integrity and compliance with drainage requirements.
