Test Kit UEI 0 Zoom

Smoke Pump Test Kit UEI 0

9LHY3

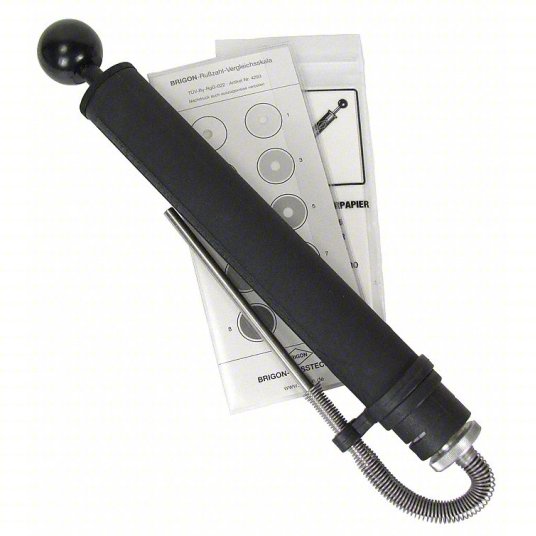

Durable manual smoke pump test kit for measuring smoke density in oil-fired and other liquid-fuel heating systems. Features a high-impact barrel, stainless steel hardware, and includes 10 smoke test papers with a comparison chart.

Status: In Stock

US$331.99

Description

Description

The UEI SPT1 Smoke Pump Test Kit is designed for HVAC technicians and combustion specialists to measure smoke density in oil-fired and other liquid-fuel heating systems. By drawing a flue gas sample across smoke test paper, you can compare the results to standard charts to identify incomplete combustion or soot formation. This test helps verify burner efficiency and maintain optimal system performance.

Built for durability and frequent field use, the SPT1 features stainless steel hardware and a high-impact barrel that resists damage on the job site. It’s compatible with most common types of smoke test paper, and the included reference chart makes interpreting results straightforward and consistent.

Compact and portable, the SPT1 is easy to carry between service calls and requires minimal maintenance. Its simple, rugged design ensures reliable readings over years of use. Use the UEI SPT1 Smoke Pump Test Kit to support accurate combustion tuning and cleaner, more efficient oil heating operation.

Features

Features

  • Samples flue smoke to assess combustion efficiency
  • Compatible with most common smoke test paper types
  • Includes reference chart for smoke scale interpretation
  • Stainless steel hardware for corrosion resistance
  • High-impact barrel withstands jobsite use
  • Compact and lightweight for portability
  • Backed by 1-year limited warranty

Specifications

Specifications

Specification Detail
Model SPT1
Part / Cross-Ref 9LHY3 (Smoke-9LHY3) :contentReference[oaicite:0]{index=0}
Use Type Smoke pump test kit for combustion sampling :contentReference[oaicite:1]{index=1}
Includes Smoke pump, SP9 smoke test paper, reference chart :contentReference[oaicite:2]{index=2}
Material / Construction Stainless steel hardware, high-impact barrel :contentReference[oaicite:3]{index=3}
Compatibility Fits most common smoke test paper types :contentReference[oaicite:4]{index=4}
Dimensions (approx.) Length: 38.61 cm; Width: 8.89 cm; Height: 4.83 cm (packaged) :contentReference[oaicite:5]{index=5}
Shipping Weight 0.9 lb (≈ 0.405 kg) :contentReference[oaicite:6]{index=6}
Warranty 1 year limited warranty :contentReference[oaicite:7]{index=7}
Country of Origin United States :contentReference[oaicite:8]{index=8}

Product Support:

Q. How do I perform a smoke test with the UEI SPT1?

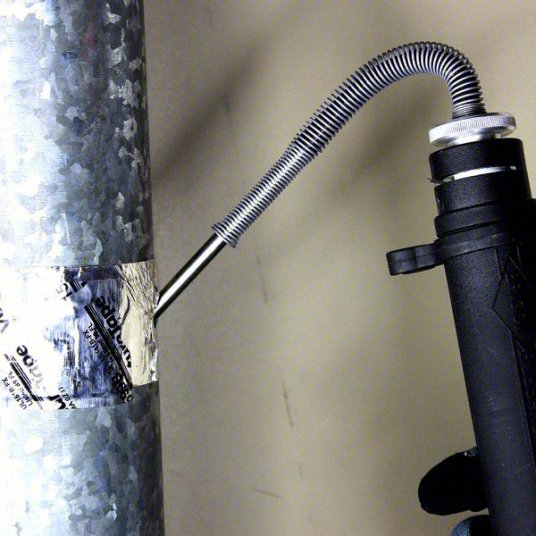

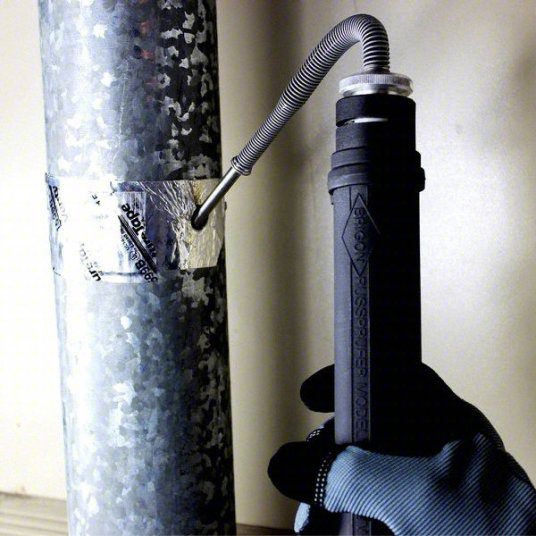

A. Insert a piece of smoke test paper into the pump, draw a flue gas sample from the oil burner exhaust, and compare the resulting stain to the included reference chart. The stain’s darkness indicates smoke number and helps assess combustion efficiency.

Q. Can I use the SPT1 on gas-fired systems?

A. No. The SPT1 is designed for oil-fired and other liquid-fuel systems. Gas systems burn cleanly and require an electronic combustion analyzer to measure CO, CO₂, and O₂ levels instead.

Q. How often should I test smoke density?

A. A smoke test should be performed during annual maintenance or whenever soot buildup, burner instability, or reduced heating efficiency is observed.

Q. What smoke test paper does this kit use?

A. The UEI SPT1 accepts most standard smoke test papers, including the SP9 Smoke Pump Test Paper that comes with the kit.

Support

Support


Product FAQs:

Q. How do I perform a smoke test with the UEI SPT1?

A. Insert a piece of smoke test paper into the pump, draw a flue gas sample from the oil burner exhaust, and compare the resulting stain to the included reference chart. The stain’s darkness indicates smoke number and helps assess combustion efficiency.

Q. Can I use the SPT1 on gas-fired systems?

A. No. The SPT1 is designed for oil-fired and other liquid-fuel systems. Gas systems burn cleanly and require an electronic combustion analyzer to measure CO, CO₂, and O₂ levels instead.

Q. How often should I test smoke density?

A. A smoke test should be performed during annual maintenance or whenever soot buildup, burner instability, or reduced heating efficiency is observed.

Q. What smoke test paper does this kit use?

A. The UEI SPT1 accepts most standard smoke test papers, including the SP9 Smoke Pump Test Paper that comes with the kit.

Q. How do I maintain the smoke pump for best accuracy?

A. Keep the pump clean and dry, store it in its protective case, and replace test papers as needed. Avoid drawing heavy soot or moisture into the pump to prolong its life and maintain accuracy.
