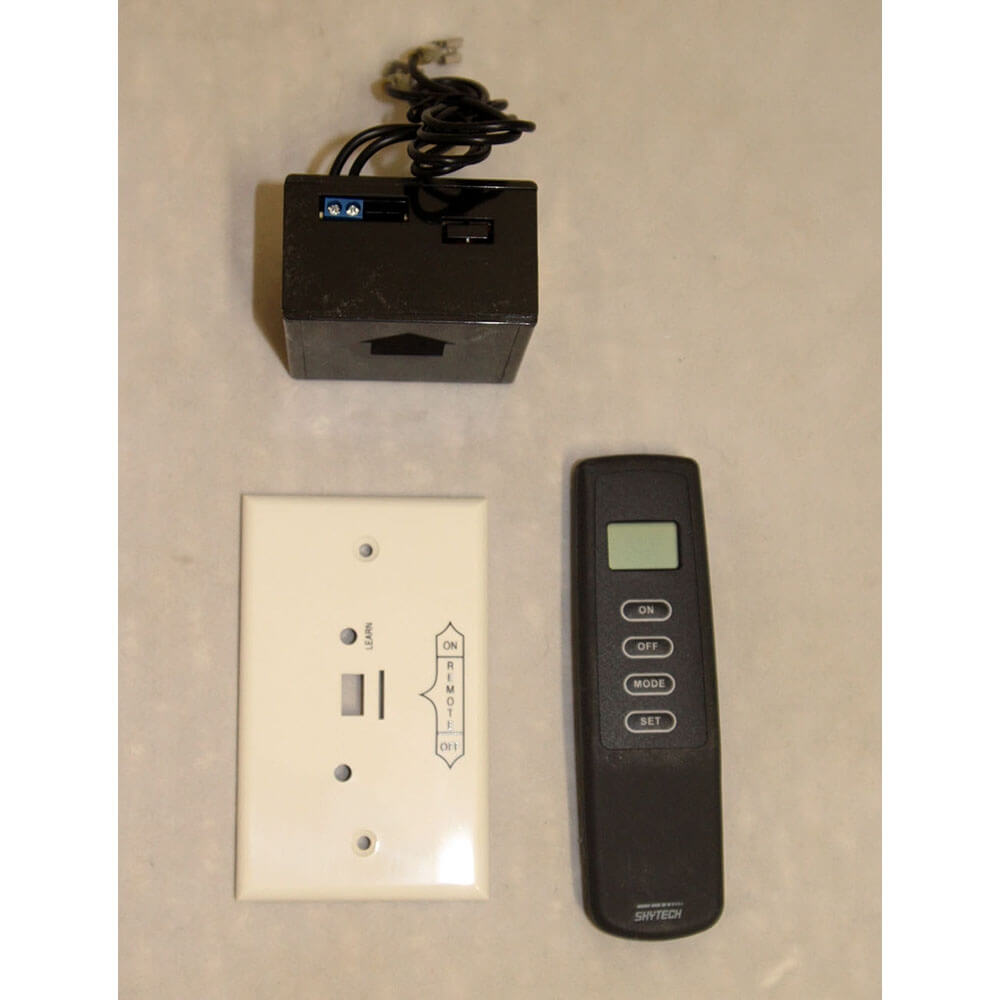

Osburn Thermostatic On/Off Remote Control

The AC02012 provides two modes of control for the Osburn 5000 or 7000 pellet stove. The on/off mode allows the stove to be turned on or off directly from the handheld remote unit, providing simple remote switching without a thermostat set point. The thermostatic mode allows the owner to set a desired room temperature from the remote, and the control system automatically cycles the stove on and off as needed to maintain the room at that temperature — turning the stove on when the room cools below the set point and off when the set point is reached. Both modes operate wirelessly, allowing the stove to be controlled from across the room.

Both the AC02012 and the AC05568 offer wireless thermostatic temperature control for the Osburn 5000 and 7000 pellet stoves. The AC02012 provides on/off switching and thermostatic temperature maintenance. The AC05568 is a programmable thermostatic remote control that additionally supports programmable scheduling for up to four time periods, allowing owners to pre-program the stove to operate at different temperatures across up to four timed intervals during the day. Owners who require only on/off and thermostatic temperature control can select the AC02012, while owners who want programmable timed temperature scheduling should select the AC05568.

The AC02012 receiver connects to the thermostat terminal block located at the rear of the Osburn 5000 or 7000 pellet stove on the right-hand side. If the receiver wires are equipped with quick-connect terminals they can be connected directly to the stove's wiring harness by removing the upper back panel and disconnecting the wires attached to the rear of the terminal block, then connecting them to the receiver. The full connection procedure is described in the AC02012 owner's manual and in the Osburn 5000 or 7000 owner's manual thermostat wiring section. All electrical connection work must be performed by a qualified technician.

The mounting bracket included with the AC02012 allows the receiver unit to be wall-mounted in a convenient location in the installation space. The receiver unit is the component that connects to the stove's thermostat terminal block and receives the wireless signal from the handheld remote unit. Mounting the receiver on the wall allows it to be positioned at a suitable location for reliable wireless signal reception from the remote handset throughout the room. The bracket provides a dedicated mounting point so the receiver is not resting on the floor or stove top surface during operation.

The AC02012 is confirmed as compatible with the Osburn 5000 and 7000 pellet stoves. The Osburn Volta installation manual also references the AC02012 as a compatible wireless thermostat option for the Volta pellet stove, indicating the remote connects to any compatible Osburn pellet stove thermostat terminal block. Compatibility with a specific Osburn pellet stove model other than the 5000 and 7000 should be confirmed against the owner's manual for that model before ordering, as the thermostat connection requirements and compatibility vary across the Osburn pellet stove product range.

All electrical connection of the AC02012 receiver to the pellet stove thermostat terminal block must be performed by a qualified technician. The installation must follow the step-by-step connection instructions in the AC02012 owner's manual and the thermostat wiring instructions in the Osburn 5000 or 7000 owner's manual. The stove must be fully powered off and unplugged from its electrical supply before any wiring connections are made to the thermostat terminal block. The receiver should be positioned and mounted in a location that provides reliable wireless signal reception from the handheld remote throughout the intended operating area of the room.
