Empire Direct-Vent Wall Furnaces 10,000 Btu NAT

DV210SGXNAT

Status: In Stock

was US$1,339.00

now US$1,129.00

Description

Description

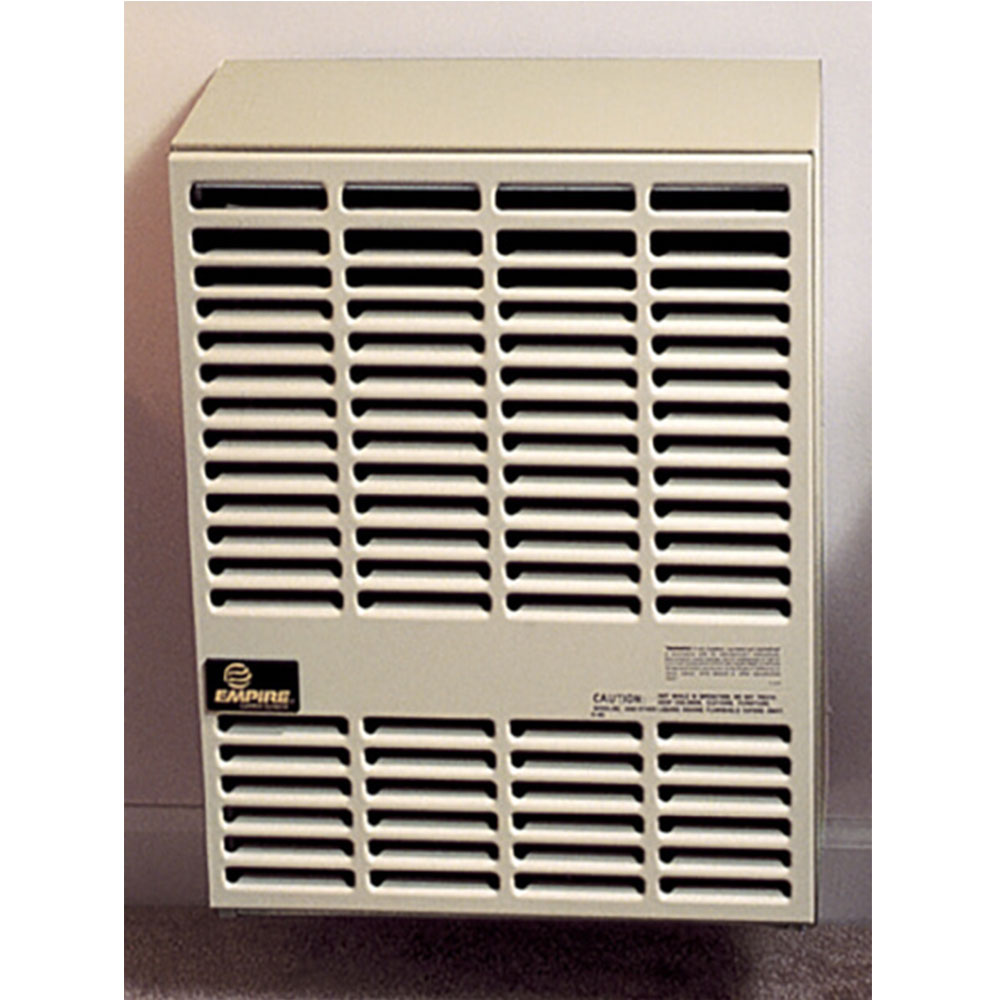

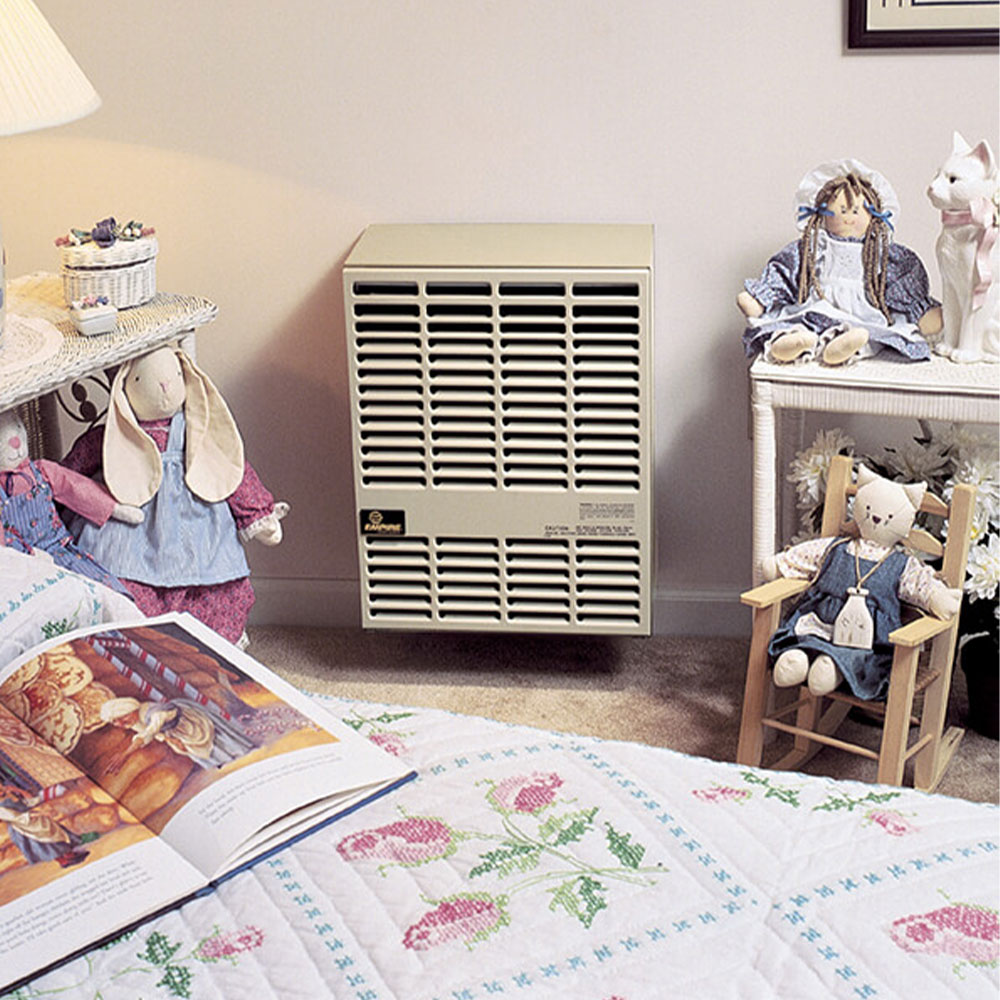

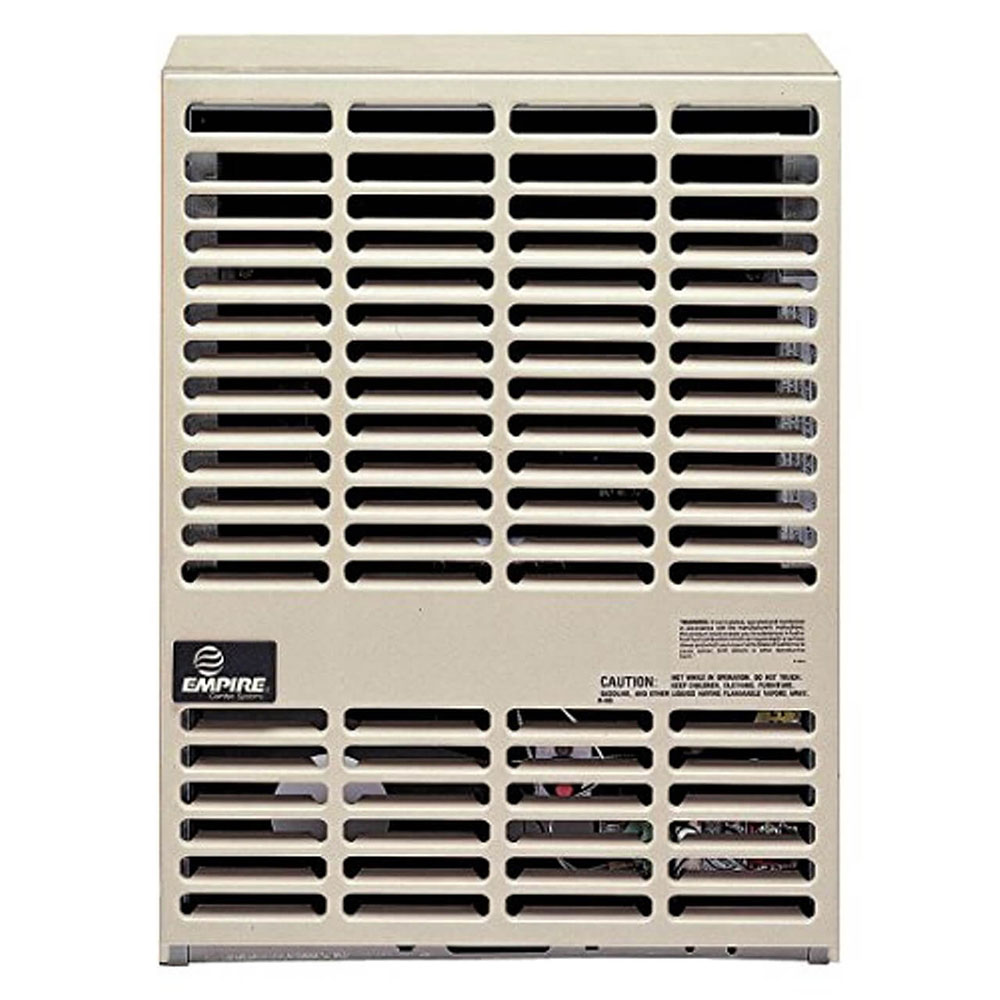

The Empire DV210SGXNAT Direct-Vent Wall Furnace offers a cost-efficient and space-saving heating solution for your home. Designed for easy wall installation, this natural gas model vents directly to the outside, eliminating the need for a chimney or flue.

The slim and compact design ensures it blends seamlessly into any room while providing reliable warmth. With a 10,000 BTU heating capacity, this unit is perfect for smaller rooms such as bedrooms and dens.

By utilizing outside air for combustion, this direct-vent system increases efficiency while reducing drafts and heat loss. Empire Comfort Systems has crafted this heater to provide total warmth at a fraction of the cost of electric heat.

In the event of a power outage, the standing pilot ignition ensures uninterrupted operation, making it a dependable heating choice. Optional wall thermostat control and an automatic blower (sold separately) provide enhanced convenience and comfort.

What’s Included: Direct-vent wall furnace unit with vent cap, flue outlet, and combustion air intake components.

Installation Limits: Designed for wall-mounted installation on an exterior wall with direct venting through the wall assembly.

Compatibility: Compatible with Empire direct-vent furnace vent systems and accessories designed for DV210 series installations.

Features

Features

  • 10,000 BTU heating capacity, ideal for small spaces
  • Natural Gas model with direct venting
  • Compact, slim design for space-saving installation
  • Vents through an outside wall—no chimney required
  • Uses outside air for combustion, increasing efficiency
  • Reliable standing pilot ignition for use during power outages
  • Wall thermostat required (sold separately)
  • Optional automatic blower available (sold separately)
  • High AFUE efficiency rating (64 - 69%)
  • Includes standard vent cap, flue outlet, and air intake for venting

Specifications

Specifications

Installation Type: Wall Mount
Fuel Type: Natural Gas
Installation Kit: Vent Kit Included
Tilt Switch: NA
Heating BTUs: 10,000
Heating BTUs (Output): NA
Type of Venting: Direct Vent
Air Inlet Tube (in.): 5"
Flue Outlet Tube (in.): 3"
Flame Type: NA
Blower: Optional
Ignition Type: Standing Pilot
Control Type: Wall Thermostat Required (NOT INCLUDED)
Gas Connection Size: 1/2"
Manifold Pressure (in.): 4.0" w.c. (NG)
Inlet Gas Pressure (Min.): 5.0" w.c. (NG)
Inlet Gas Pressure (Max.): 10.5" w.c. (NG)
Top to Ceiling (in.): 12
Bottom to Floor (in.): 0
To Side Wall (in.): 1
Width (in.): 16.25
Depth (in.): 9.375
Height (in.): 21.375
Net Weight (lbs.): 42
Certifications: CSA



This appliance provides direct vent natural gas heating through a wall-mounted installation designed for compact residential spaces.



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

Q. What is the Empire DV210SGXNAT wall furnace used for?

A. It is used to provide direct-vent natural gas heating for small rooms such as bedrooms, offices, and similar spaces.

Q. What does direct vent mean for this furnace?

A. A direct-vent system draws combustion air from outdoors and vents exhaust gases directly outside through the wall vent assembly.

Q. Does this furnace require electricity to operate?

A. No. The millivolt standing pilot ignition system allows the heater to operate without electrical power.

Q. Can a thermostat be used with this heater?

A. Yes. A compatible wall thermostat can be installed to provide automatic room temperature control.

Q. Where is this wall furnace typically installed?

A. It is typically installed on an exterior wall where the direct-vent system can pass through the wall to the outside.

Q. Can additional accessories be added to this heater?

A. Yes. Optional accessories such as a wall thermostat and automatic blower can be installed for improved comfort control and heat distribution.
