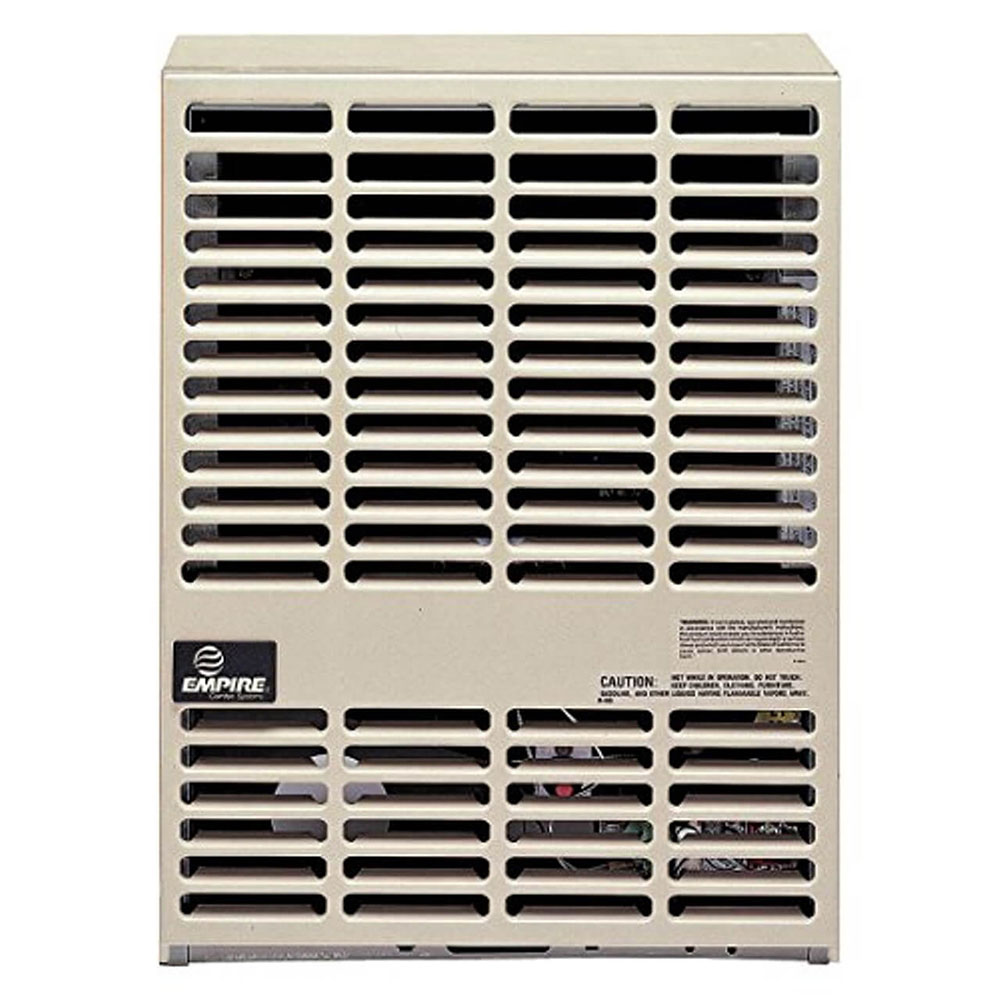

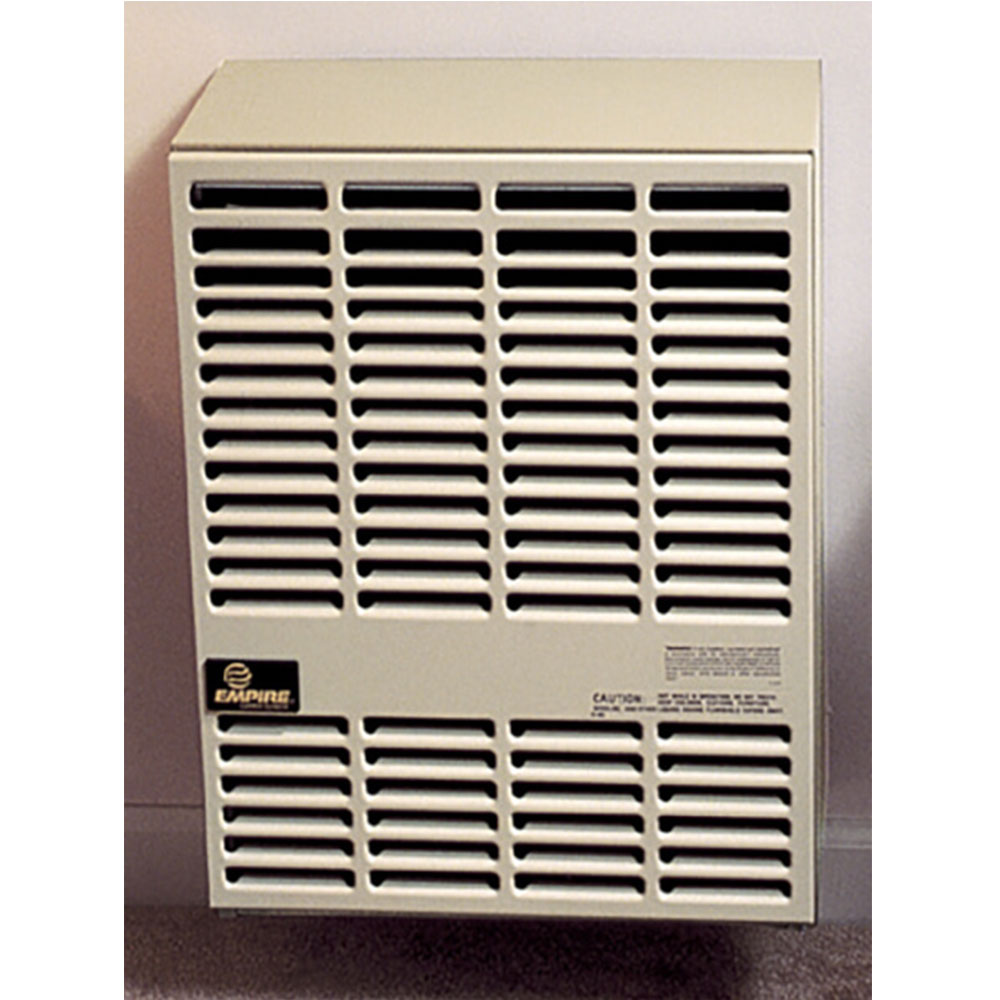

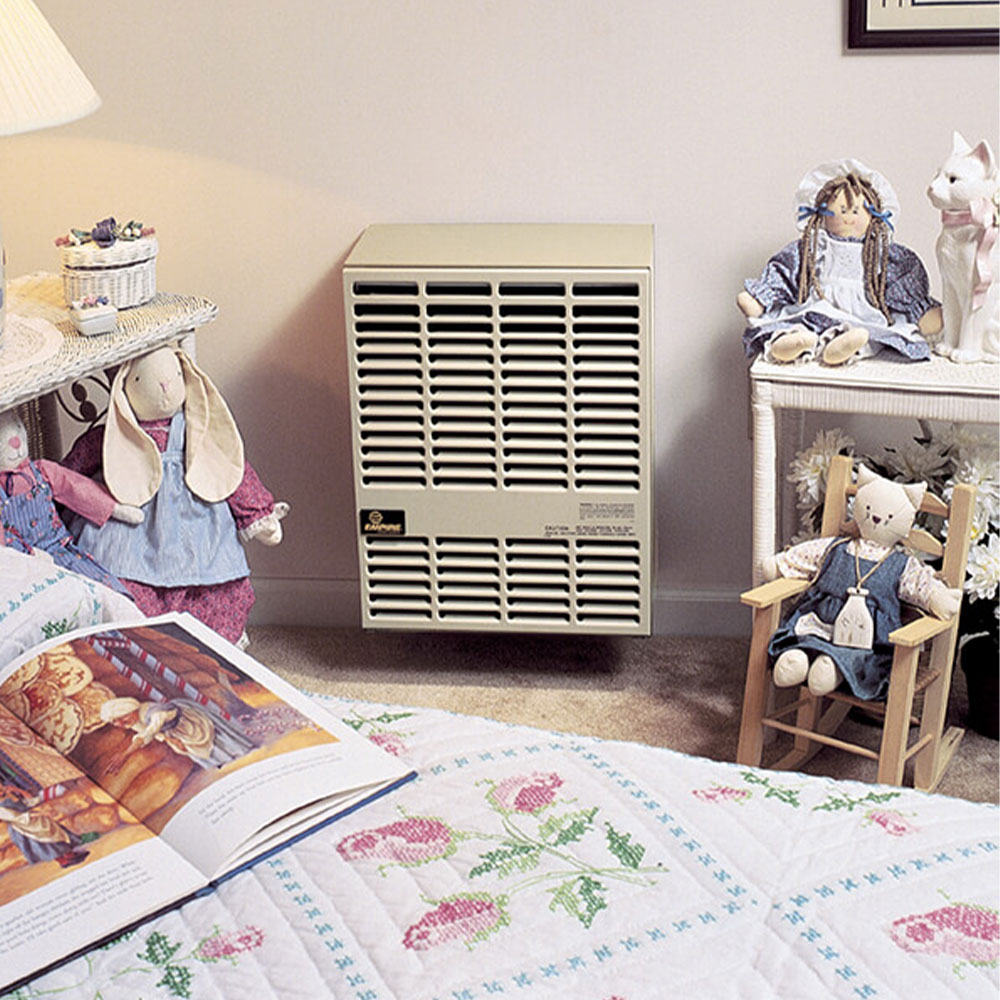

Empire Direct-Vent Wall Furnaces 15,000 Btu LP

DV215SGXLP

Status: In Stock

was US$1,499.00

now US$1,269.00

Description

Description

Empire Direct Vent Wall Furnace – 15,000 BTU LP Gas Heating

The Empire Direct Vent Wall Furnace 15,000 BTU LP model is a compact, efficient propane heating solution designed to deliver dependable warmth in homes, cabins, garages, and zone-heating applications. Built with proven direct vent technology, this wall-mounted furnace provides steady, reliable comfort while using propane efficiently.

Operating as a sealed direct vent system, the furnace draws combustion air from outside and vents exhaust gases outdoors. This design helps protect indoor air quality and improves overall safety by isolating the combustion process from the living space. The 15,000 BTU heat output makes this model well suited for small to medium-sized spaces that require consistent, dependable heat.

The slim, wall-mounted design allows for flexible installation without the need for ductwork, making it ideal for retrofit projects, additions, and areas where floor space is limited. Thermostat compatibility provides straightforward temperature control, while quiet operation supports comfortable everyday use.

Designed for long service life and dependable performance, the Empire 15,000 BTU LP Direct Vent Wall Furnace is a practical choice for primary or supplemental heating in residential and light commercial settings where efficiency, safety, and space-saving installation are important.

Features

Features

  • 15,000 BTU heating capacity, ideal for small to medium-sized rooms
  • Liquid Propane (LP) model with direct venting
  • Compact, space-saving design with wall-mounted installation
  • Vents through an outside wall—no chimney required
  • Uses outside air for combustion, increasing efficiency
  • Reliable standing pilot ignition ensures operation during power outages
  • Wall thermostat required (sold separately)
  • Optional automatic blower available (sold separately)
  • High AFUE efficiency rating (64 - 69%)
  • Includes standard vent cap, flue outlet, and air intake for venting

Specifications

Specifications

Installation Type: Wall Mount
Fuel Type: Liquid Propane (LP)
Installation Kit: Vent Kit Included
Tilt Switch: NA
Performance Data
Heating BTUs: 15,000
Heating BTUs (Output): NA
Venting
Type of Venting: Direct Vent
Air Inlet Tube (in.): 5"
Flue Outlet Tube (in.): 3"
System Data
Flame Type: NA
Blower: Optional
Ignition Type: Standing Pilot
Control Type: Wall Thermostat Required (NOT INCLUDED)
Gas Requirements
Gas Connection Size: 1/2"
Manifold Pressure (in.): 10.0" w.c. (LP)
Inlet Gas Pressure (Min.): 11.0" w.c. (LP)
Inlet Gas Pressure (Max.): 13.0" w.c. (LP)
Clearances
Top to Ceiling (in.): 12
Bottom to Floor (in.): 0
To Side Wall (in.): 1
Weights and Dimensions
Width (in.): 20.25
Depth (in.): 9.375
Height (in.): 24.875
Net Weight (lbs.): 42
Certifications: CSA



Proper venting, gas pressure, and clearance compliance are required to ensure safe operation and rated heating performance.



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

What fuel does the Empire DV215SGXLP use?

It operates on liquid propane (LP) gas.

How much heat does this furnace produce?

It provides up to 15,000 BTUs of heating output.

Is this a direct vent furnace?

Yes. It uses a sealed direct vent system that draws combustion air from outside.

Can a wall thermostat be used with this model?

Yes. The DV215SGXLP is thermostat-ready and requires a compatible wall thermostat.

Is a blower included with the furnace?

No. A blower is optional and sold separately.

Should installation follow Empire guidelines?

Yes. Installation must follow Empire instructions and all applicable local codes.
