Empire Direct-Vent Wall Furnaces 25,000 Btu LP

DV25SGLP

Status: In Stock

was US$1,729.00

now US$1,499.00

Description

Description

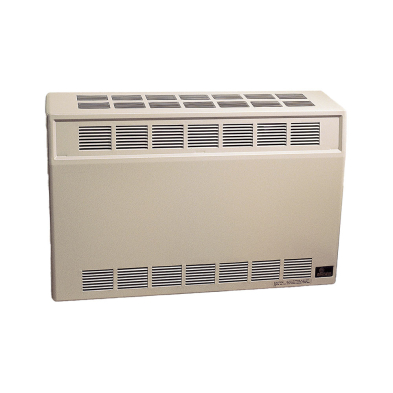

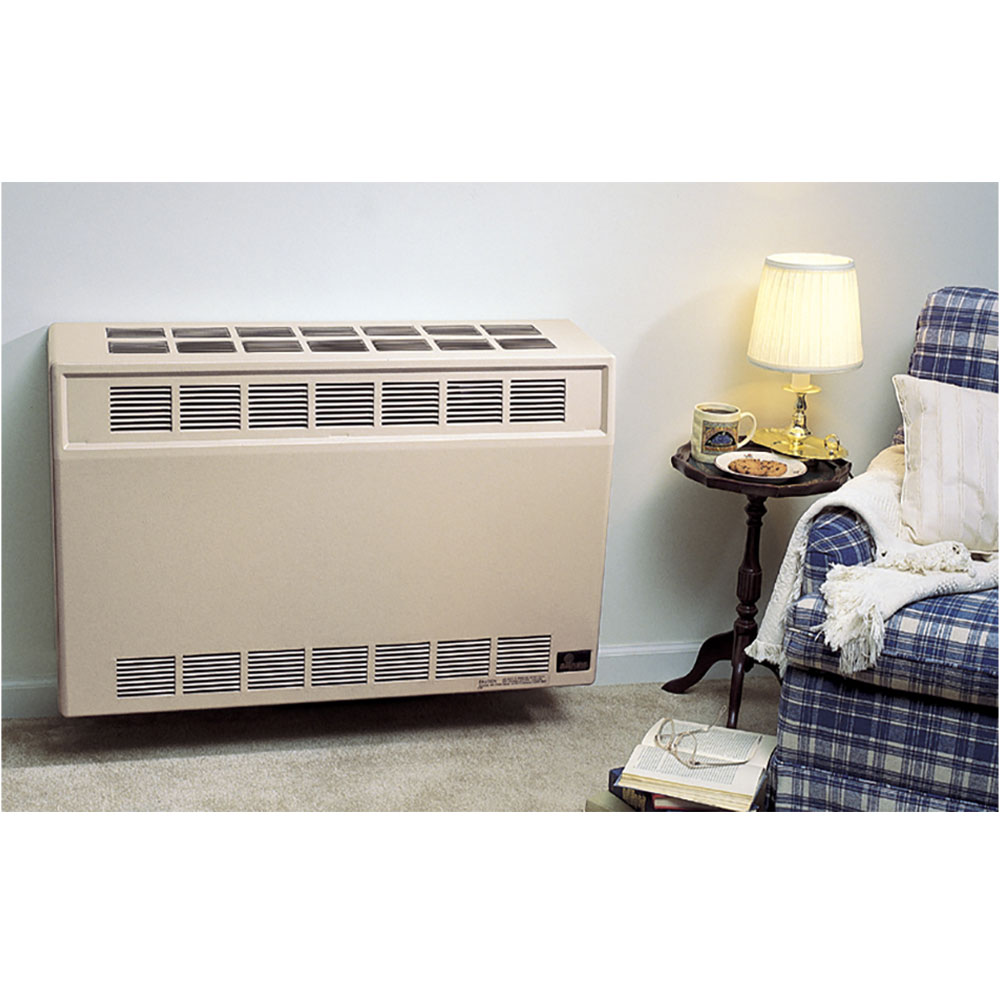

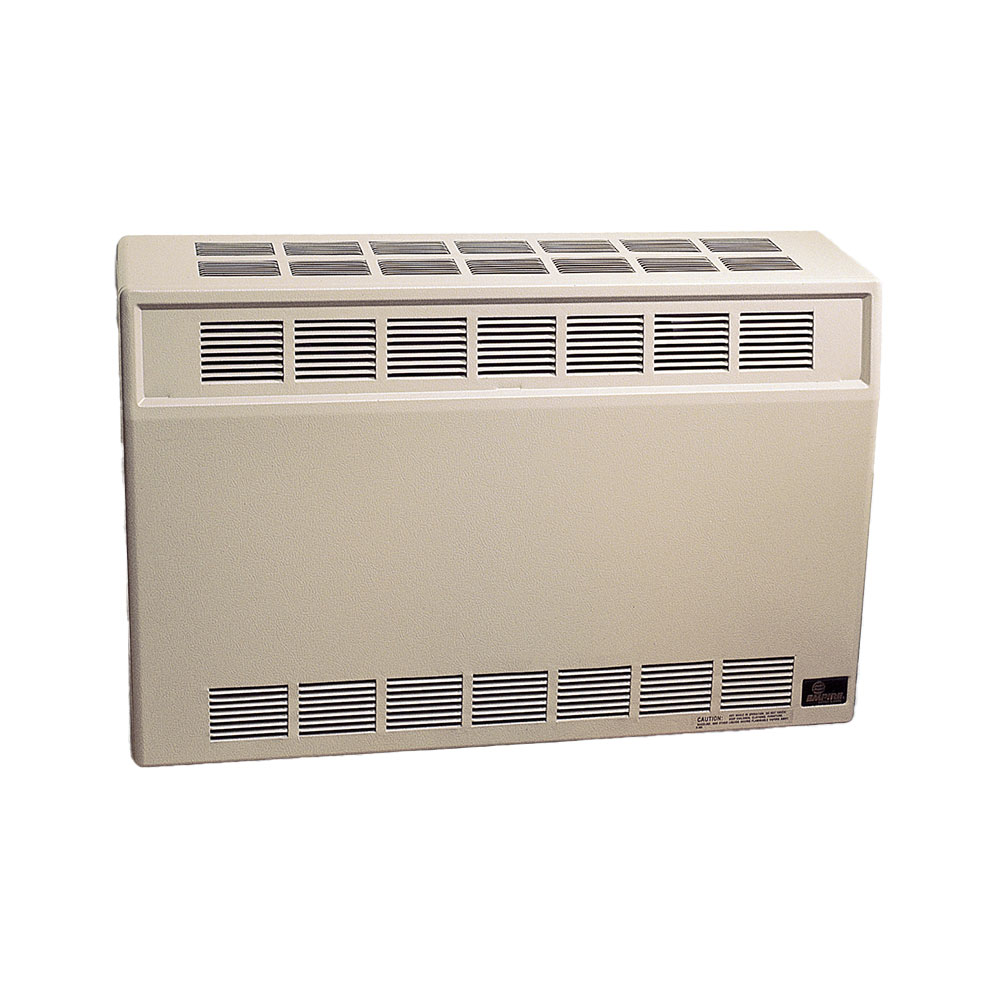

Empire Direct Vent Wall Furnace – 25,000 BTU LP Gas Heating

The Empire Direct Vent Wall Furnace, part number DV25SGLP, is a propane heating appliance designed to provide dependable warmth for medium to large interior spaces. It produces 25,000 BTUs of heating capacity and mounts directly on an exterior wall to conserve floor space. The sealed direct-vent configuration draws combustion air from outdoors and vents exhaust gases outside through the wall vent system.

Operating as a sealed direct vent system, the furnace draws combustion air from outside and vents exhaust gases outdoors. This design helps protect indoor air quality and improves overall safety by keeping the combustion process isolated from the living space. The 25,000 BTU heat output makes this model well suited for spaces that need higher heating capacity without oversized equipment.

The slim, wall-mounted format allows for flexible installation without ductwork, making it a strong fit for retrofit projects, additions, and areas where floor space is limited. Thermostat compatibility provides straightforward temperature control, while quiet operation supports comfortable, uninterrupted heating.

Designed for long service life and dependable operation, the Empire 25,000 BTU LP Direct Vent Wall Furnace is a practical choice for primary or supplemental heating in residential and light commercial settings where higher BTU output, safety, and space-saving installation are important.

What’s Included: Direct vent wall furnace unit with vent cap, flue outlet, and combustion air intake components.

Installation Limits: Designed for wall-mounted installation on an exterior wall using a compatible direct vent wall furnace venting system.

Compatibility: Compatible with Empire DV25 series direct vent heating installations and approved Empire venting components.

Features

Features

  • 25,000 BTU heating capacity, ideal for medium to large rooms
  • Liquid Propane (LP) model with direct venting
  • Compact, space-saving design with wall-mounted installation
  • Vents through an outside wall—no chimney required
  • Uses outside air for combustion, increasing efficiency
  • Reliable standing pilot ignition ensures operation during power outages
  • Wall thermostat required (sold separately)
  • Optional automatic blower available (sold separately)
  • High AFUE efficiency rating (64 - 69%)
  • Includes standard vent cap, flue outlet, and air intake for venting

Specifications

Specifications

Installation Type: Wall Mount
Fuel Type: Liquid Propane (LP) or Natural Gas (NAT)
Installation Kit: Vent Kit Included
Tilt Switch: NA
Performance Data
Heating BTUs: 25,000
Heating BTUs (Output): NA
Venting
Type of Venting: Direct Vent
Air Inlet Tube (in.): 5"
Flue Outlet Tube (in.): 3"
System Data
Flame Type: NA
Blower: Optional
Ignition Type: Standing Pilot
Control Type: Wall Thermostat Required (NOT INCLUDED)
Gas Requirements
Gas Connection Size: 1/2"
Manifold Pressure (in.): 10.0" w.c. (LP)
Inlet Gas Pressure (Min.): 11.0" w.c. (LP)
Inlet Gas Pressure (Max.): 13.0" w.c. (LP)
Clearances
Top to Ceiling (in.): 12
Bottom to Floor (in.): 0
To Side Wall (in.): 1
Weights and Dimensions
Width (in.): 37
Depth (in.): 11.50
Height (in.): 27.75
Net Weight (lbs.): 51
Certifications: CSA



Correct installation, venting configuration, and gas supply setup are required to ensure safe operation and rated heating performance.



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

What fuel type does the Eskabe DVEL8-L use?

The DVEL8-L is designed for propane (LP) gas operation.

How much heat output does the DVEL8-L provide?

It is rated at 8,000 BTU for efficient zone heating.

What does direct vent mean on this heater?

Direct vent systems use outside air for combustion and vent exhaust gases outdoors through an approved vent system.

Is the Eskabe DVEL8-L designed for wall installation?

Yes, it is designed as a wall-mount direct vent heater.

Is this heater a good fit for small rooms or cabins?

Yes, the 8,000 BTU output is commonly used for smaller spaces needing reliable zone heat.

Does installation require approved venting and code compliance?

Yes, installation must use an approved direct-vent system and follow local codes and manufacturer instructions.
