Empire Direct-Vent Wall Furnaces 35,000 Btu LP

DV35SGLP

Status: In Stock

was US$1,869.00

now US$1,629.00

Description

Description

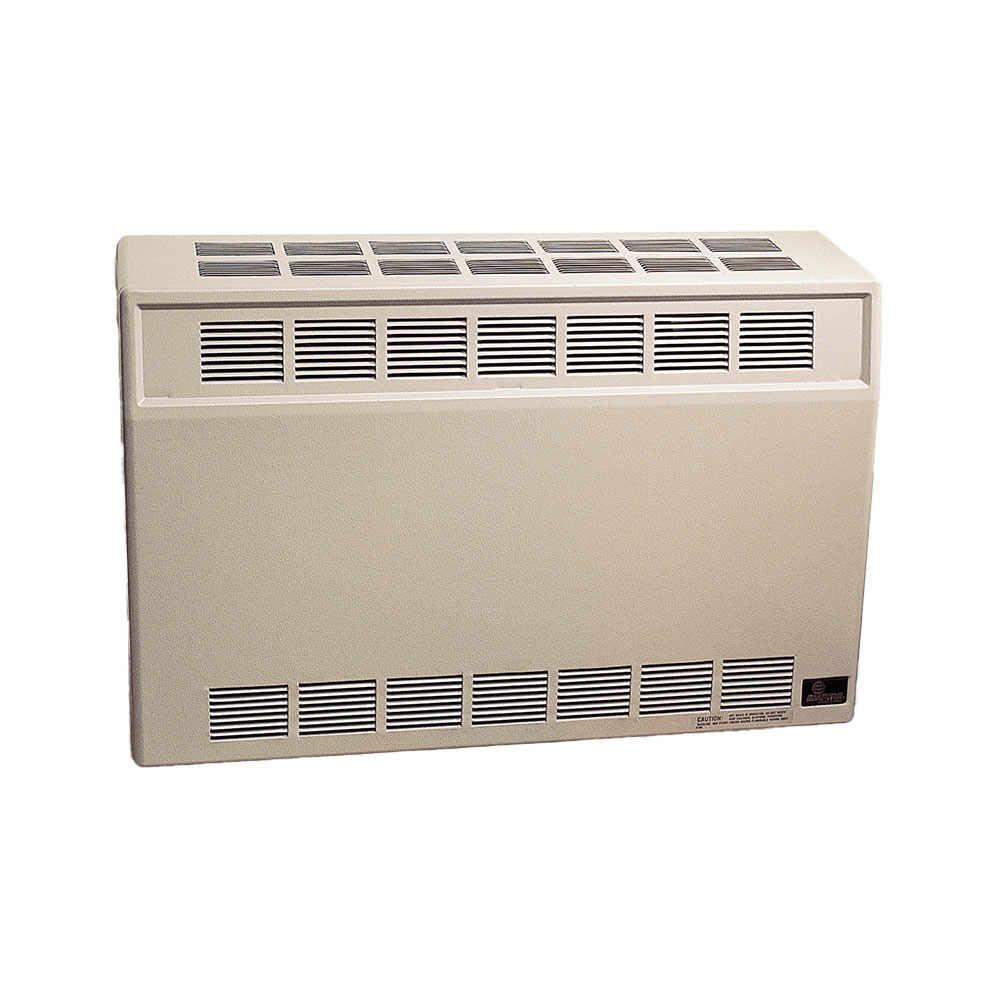

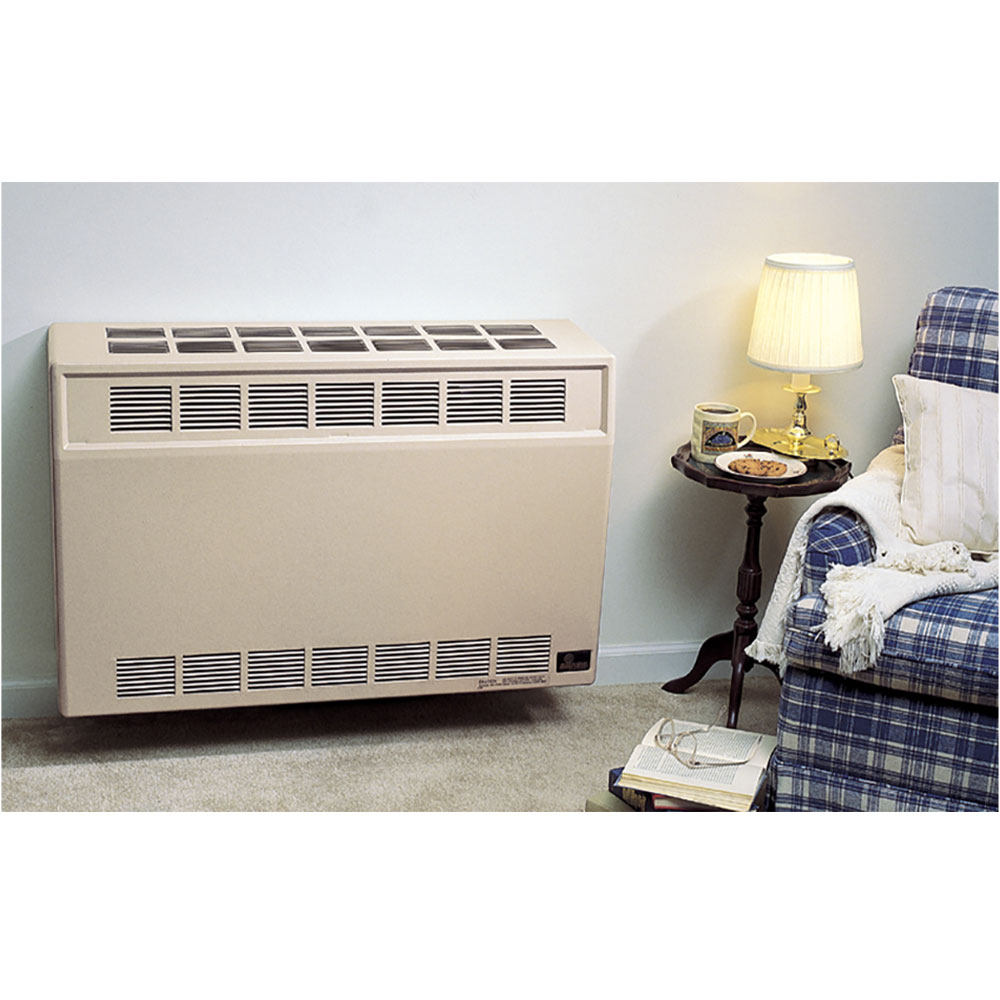

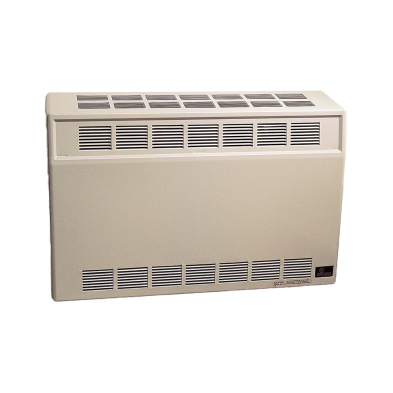

Empire Direct Vent Wall Furnace – 35,000 BTU LP Gas Heating

The Empire Direct Vent Wall Furnace, part number DV35SGLP, is a propane heating appliance designed to deliver high-capacity warmth for larger interior spaces. It provides 35,000 BTUs of heating performance and mounts directly on an exterior wall for space-saving installation. The sealed direct-vent system draws combustion air from outdoors and exhausts gases outside through the wall vent assembly.

Operating as a sealed direct vent system, the furnace draws combustion air from outside and vents exhaust gases outdoors. This design helps maintain indoor air quality and improves overall safety by isolating the combustion process from the living space, making it well suited for tight buildings and remote or off-grid installations.

The slim, wall-mounted design allows for flexible installation without ductwork, making it a strong fit for retrofit projects, additions, and spaces where floor space is limited. Thermostat compatibility provides straightforward temperature control, while quiet operation supports comfortable, uninterrupted heating.

Designed for long service life and dependable output, the Empire 35,000 BTU LP Direct Vent Wall Furnace is an excellent choice for primary or supplemental heating in residential and light commercial settings where higher BTU capacity, safety, and space-saving installation are essential.

What’s Included: Direct vent wall furnace unit with vent cap, flue outlet, and combustion air intake components.

Installation Limits: Designed for installation on an exterior wall using a compatible direct vent wall furnace venting system.

Compatibility: Compatible with Empire DV35 series direct vent heating installations and approved Empire venting components.

Features

Features

  • 35,000 BTU heating capacity, ideal for large rooms
  • Liquid Propane (LP) model with direct venting
  • Wall-mounted design for space-saving installation
  • Vents through an outside wall—no chimney required
  • Utilizes outside air for combustion, improving efficiency
  • Reliable standing pilot ignition ensures operation during power outages
  • Wall thermostat required (sold separately)
  • Optional automatic blower available (sold separately)
  • High AFUE efficiency rating (64 - 69%)
  • Includes standard vent cap, flue outlet, and air intake for venting

Specifications

Specifications

Installation Type: Wall Mount
Fuel Type: Liquid Propane (LP)
Installation Kit: Vent Kit Included
Tilt Switch: NA
Performance Data
Heating BTUs: 35,000
Heating BTUs (Output): NA
Venting
Type of Venting: Direct Vent
Air Inlet Tube (in.): 5"
Flue Outlet Tube (in.): 3"
System Data
Flame Type: NA
Blower: Optional
Ignition Type: Standing Pilot
Control Type: Wall Thermostat Required (NOT INCLUDED)
Gas Requirements
Gas Connection Size: 1/2"
Manifold Pressure (in.): 10.0" w.c. (LP)
Inlet Gas Pressure (Min.): 11.0" w.c. (LP)
Inlet Gas Pressure (Max.): 13.0" w.c. (LP)
Clearances
Top to Ceiling (in.): 12
Bottom to Floor (in.): 0
To Side Wall (in.): 1
Weights and Dimensions
Width (in.): 37
Depth (in.): 11.50
Height (in.): 27.75
Net Weight (lbs.): 64
Certifications: CSA



Proper venting, gas pressure, and clearance compliance are required to ensure safe operation and rated heating performance.



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

What fuel does the Empire DV35SGLP use?

It operates on liquid propane (LP) gas.

How much heat does this furnace provide?

It delivers up to 35,000 BTUs of heating output.

Is this a sealed direct vent furnace?

Yes. It uses a sealed direct vent system that draws combustion air from outside.

Can this furnace be used with a wall thermostat?

Yes. The DV35SGLP is thermostat-ready and requires a compatible wall thermostat.

Is a blower included with this furnace?

No. A blower is optional and sold separately.

Should installation follow Empire instructions?

Yes. Installation must follow Empire guidelines and all applicable local codes.
