Fuel Oil Furnaces for Cold Climates: Direct Vent Models, Sizing and Venting
When natural gas isn't available, when electricity-dependent forced-air systems become a liability the moment the grid goes down, and when the nearest qualified technician is three hours away, the heating system you choose has consequences that go well beyond comfort. It can mean the difference between a functional property and a frozen one.
What this guide means by a fuel oil furnace. Here, a fuel oil furnace is a heater that burns heating oil or kerosene. It is not an electric oil-filled radiator, which plugs into an outlet and burns nothing, and it is not a ducted central furnace that pushes air through ductwork. The units in this guide heat the space directly: Toyotomi Laser direct vent heaters that vent through a wall, the Toyotomi 128 hydronic heater that heats water for a baseboard or radiant loop, and NordicStove oil drip stoves that need no electricity at all. If you are replacing a ducted central furnace, that is a job for a local HVAC contractor.
Direct vent oil furnaces answer most of those problems. They run on stored fuel that can be delivered by barge, truck, or bush plane and held in a tank for months. They use sealed combustion that draws intake air from outside and exhausts combustion gases outside, so they are not dependent on indoor air quality or chimney integrity. Their mechanical simplicity means that most routine maintenance and common failure points are owner-serviceable without a specialist on-site. They do still need electricity: every Toyotomi Laser runs on 120-volt power, but its draw is small, which makes backup power far easier to plan than for an all-electric system.
This guide covers everything a rural or remote property owner needs to evaluate, size, and select fuel oil heat:
-
What sealed combustion actually means at the mechanical level and why it matters for tightly insulated structures
-
The three kinds of fuel oil heat Rural Energy carries, and which one fits your building
-
Why heating oil outperforms propane and electric heat in extreme cold, expressed in fuel physics rather than marketing claims
-
How to size correctly for Alaska and other extreme-cold design temperatures, using Toyotomi's ratings and the Manual J method
-
Installation requirements and how direct vent venting works through a wall
-
A full model comparison for the Toyotomi Laser direct vent heater lineup
-
Hydronic oil heat, heat with no power at all, and which fuel grade to burn in deep cold
-
Parts availability, annual maintenance, and what to do when something fails far from a service shop
For a broader comparison of off-grid heating options across fuel types, see the complete Alaska off-grid heating guide.
What Is a Direct Vent Oil Furnace, and What Makes It Different?
A direct-vent oil furnace is a sealed-combustion heating appliance that burns oil or kerosene to heat indoor air while keeping the entire combustion process isolated from the living space. Intake air for combustion is drawn from outside through a dedicated pipe. Combustion gases are exhausted outside through a separate pipe. No indoor air is consumed or contaminated by the process.
The U.S. Department of Energy identifies sealed combustion as both the safest and most efficient venting approach for heating appliances, because it eliminates the risk of backdrafting and does not depressurize the building envelope.
How the Two-Pipe System Works
Most direct vent oil systems use one of two configurations:
-
Concentric (pipe-within-pipe): A single wall penetration carries both pipes. The inner pipe exhausts combustion gases; the outer pipe draws in fresh combustion air. This is the most common setup for retrofits and tight wall assemblies.
-
Dual-pipe: Two separate wall penetrations, one for intake and one for exhaust. This configuration is sometimes preferred when wall thickness or layout makes concentric installation impractical.
Both configurations achieve the same result: combustion that is fully sealed from the interior environment.
Direct Vent vs. Flue-Vented Oil: What Actually Changes
The distinction between direct vent and conventional flue-vented oil equipment is functional, not cosmetic. Here is what changes across each system type:
|
Feature |
Direct Vent Oil |
Flue-Vented Oil |
|---|---|---|
|
Combustion air source |
Exterior (sealed) |
Interior room air |
|
Exhaust path |
Dedicated exterior pipe |
Chimney or B-vent |
|
Backdraft risk |
None |
Present in tight buildings |
|
Chimney required |
No |
Yes |
|
Wall penetration |
1 or 2 holes |
Full chimney system |
|
Depressurization risk |
None |
Present with sealed envelopes |
|
Installation in existing structure |
Simpler |
Requires chimney access |
Flue-vented systems draw combustion air from the room. In older, drafty structures, this is not a problem because natural air infiltration replenishes what the heater consumes. In modern, well-insulated cabins and homes, it poses a real risk: the building becomes negatively pressurized, allowing combustion gases to be drawn back down the flue and into the living space. This is called backdrafting, and it is one of the primary reasons that direct vent systems have become the standard recommendation for new and retrofit installations in tight rural structures.
Direct Vent vs. Electric Forced-Air
Electric forced-air heating is mechanically simple and requires no fuel storage, but it depends entirely on grid availability. In rural Alaska, where outages can last days and electricity is expensive in many remote communities, electric resistance heating is rarely viable as a primary system. A direct vent oil heater is not grid-free: every Toyotomi Laser model needs 120-volt, 60 Hz power for its igniter, fan and controls. What changes is the size of the load. According to Toyotomi's published ratings, a Laser draws roughly 240 to 280 watts while it preheats and about 23 to 60 watts once it is burning, against the several kilowatts an electric furnace pulls. That small load is what makes backup power practical.
Key distinction: "Direct vent" and "vent-free" are not the same. Vent-free heaters exhaust combustion gases into the room. They are not appropriate for primary heating in sealed or occupied structures, and they are prohibited in sleeping areas by code in many jurisdictions.
Three Kinds of Fuel Oil Heat, and Which One Fits
Rural Energy carries three kinds of fuel oil heat. They burn similar fuel, but they deliver heat in different ways, need different amounts of power, and suit different buildings.
|
|
Toyotomi Laser direct vent |
Toyotomi 128 hydronic (OM-128HH) |
NordicStove oil drip stove |
|---|---|---|---|
|
How it delivers heat |
Fan-forced warm air into the room |
Hot water to a hydronic loop, such as baseboard or radiant floor |
Heat from the stove body into the room |
|
Output |
15,000 to 40,000 BTU/hr on high |
128,900 BTU/hr hot water output |
6,800 to 40,000 BTU/hr |
|
Power needed |
120 V, 60 Hz |
120 V, 60 Hz |
None |
|
Fuels |
Ultra low sulfur heating oil or diesel, low sulfur #1, K-1 kerosene |
K-1, low sulfur #1, ultra low sulfur heating oil or diesel, #2 fuel oil |
#1 or #2 fuel oil |
|
Venting |
Through a side wall, with the direct vent kit included |
Through-wall forced flue kit or chimney adapter |
Chimney, natural draft |
|
Fits best |
A cabin, a room or an open-plan home heated from one point |
A home with a hydronic distribution loop |
Outage-prone sites, or heat with no power source |
Direct vent (Toyotomi Laser). The usual choice for a cabin or small home. A Laser sits against an outside wall, draws combustion air from outdoors and exhausts outdoors through one wall penetration, and its fan spreads the heat through the space. The modulating burner steps between high, medium and low output to hold the temperature you set. See the direct vent oil furnace category for the full range.
Hydronic (Toyotomi 128). Instead of heating air, the Toyotomi 128 hydronic heater heats water on demand and sends it through a hydronic loop. It suits a home that already has, or is planning, baseboard or radiant heat. More on it below.
Non-electric (NordicStove). A NordicStove oil drip stove feeds fuel to its burner by gravity and vents through a chimney by natural draft, so it keeps heating with no electricity at all. It is the answer when the heat must survive an outage with no generator. More on it below.
Why Oil Is the Right Fuel for Remote and Extreme-Cold Properties
Fuel selection for a remote property is not primarily a price-per-gallon decision. It is a decision about logistics, reliability, and performance. When delivery windows are seasonal, storage capacity is limited, and temperatures drop well below zero for weeks at a time, the fuel that delivers the most usable heat per unit volume and remains stable under those conditions has a structural advantage.
Heating oil wins that comparison on every relevant dimension for most rural Alaska and extreme-cold use cases.
Energy Density: The Core Argument
The fundamental reason heating oil outperforms propane in remote-property applications is energy content per gallon:
|
Fuel |
Energy Content (BTU/gallon) |
Notes |
|---|---|---|
|
Heating oil (#1 or #2) |
~138,500 BTU |
Stable in extreme cold with proper additives |
|
Propane (LP) |
~91,500 BTU |
Vapor pressure drops near -44°F |
|
Electric resistance |
N/A (per kWh) |
Grid-dependent; ~3,412 BTU/kWh |
For the same storage tank volume, heating oil delivers approximately 50% more usable heat energy than propane. According to the U.S. Energy Information Administration, this energy density difference is consistent across fuel grades and is not a manufacturer's claim. It is a function of molecular energy content.
That gap matters most when resupply is constrained. A 500-gallon oil tank holds the heating equivalent of roughly 756 gallons of propane. In a remote location where a barge or fuel truck comes once or twice a season, that difference in stored energy can be the margin between a comfortable winter and an emergency resupply.
Cold-Weather Fuel Reliability
Propane vapor pressure drops critically near -44°F. Below that threshold, propane in a standard tank may not generate sufficient vapor pressure to sustain combustion, so the system can fail to ignite or maintain output precisely when the heating load is highest.
Heating oil does not have that vapor-pressure problem, but it has its own cold limit: standard #2 heating oil clouds and gels in hard cold, which is why fuel grade matters. In interior Alaska, where design temperatures routinely reach -40°F to -60°F, this is not a theoretical concern. It is a documented operational difference. #1 fuel oil, which is closer in composition to kerosene, is the preferred grade for extreme-cold locations because it has a lower pour point and gels less readily than #2.
Storage and Logistics
Oil can be stored in above-ground or below-ground tanks for months without fuel degradation. Propane requires pressure-rated vessels and more complex handling. For properties resupplied by barge or bush plane, oil's energy density and storage simplicity translate directly into fewer deliveries, lower per-delivery costs, and a larger buffer against delayed resupply.
Single-Fuel Infrastructure
Properties that already use a Toyotomi or similar oil-fired space heater benefit from consolidating on one fuel type. A single tank, a single delivery contract, and a single fuel filter system reduce operational complexity in environments where complexity is already high. Adding a second fuel type to a remote property is not a minor convenience trade-off. It is a meaningful increase in logistics overhead.
Power Needs and Outage Planning
No Toyotomi Laser model runs without electricity. Every current model is rated for 120 volts at 60 Hz, drawing roughly 240 to 280 watts during preheat and about 23 to 60 watts while burning, depending on the model, according to Toyotomi. In rural Alaska, where power outages are a routine seasonal reality, that has two practical consequences. First, include the heater in your backup-power plan: its load is small, but it is not zero. Second, if the heat must keep running with no power source at all, the answer is a non-electric oil drip stove such as a NordicStove, which feeds fuel by gravity and burns with natural draft.
Electric resistance heating is the opposite case. Its load is measured in kilowatts, so backing it up is a far larger undertaking, and when the grid goes down without backup, it stops. That constraint is why it rarely works as primary heat at a remote property, regardless of operating cost.
Direct Vent Oil vs. the Alternatives: Which Wins Where?
The full comparison across heating options for remote properties looks like this:
|
Criteria |
Direct Vent Oil |
Flue-Vented Oil |
Direct Vent Propane |
Electric Forced-Air |
|---|---|---|---|---|
|
Combustion air source |
Exterior (sealed) |
Interior room air |
Exterior (sealed) |
N/A |
|
Backdraft risk |
None |
Present in tight buildings |
None |
N/A |
|
Cold-weather fuel reliability |
Good with #1 oil or K-1 kerosene; #2 gels in deep cold |
Good with #1 oil or K-1 kerosene; #2 gels in deep cold |
Degrades near -44°F |
Grid-dependent |
|
Energy density per gallon |
~138,500 BTU |
~138,500 BTU |
~91,500 BTU |
N/A |
|
Power needed |
120 V; small load (about 240 to 280 W at startup) |
Depends on model |
Depends on model; some run with no power |
Total; large load |
|
Chimney required |
No |
Yes |
No |
No |
|
Installation in existing structure |
Wall penetration only |
Full chimney system |
Wall penetration only |
Ductwork required |
|
Remote serviceability |
High (simple mechanics) |
Moderate |
High |
Low (specialist required) |
|
Fuel resupply logistics (remote) |
Favorable |
Favorable |
Manageable |
Grid only |
|
Fuel storage (long-term) |
Excellent |
Excellent |
Adequate |
N/A |
When Flue-Vented Oil Still Makes Sense
Flue-vented oil systems are not obsolete. They remain a reasonable choice in two specific scenarios:
-
Existing chimney infrastructure: If a property already has a functioning, properly lined masonry or metal chimney, a flue-vented oil heater can be a lower-cost retrofit than a direct vent installation. The chimney investment has already been made.
-
Larger commercial or industrial applications: Some higher-output commercial oil-fired equipment uses conventional venting because the BTU requirements exceed what most direct-vent configurations can support.
Outside of those two cases, direct vent is the better choice for rural and remote residential use. The elimination of chimney maintenance, the removal of backdraft risk in tight structures, and the simpler wall-penetration installation all favor direct vent for new installations and most retrofits.
When Direct Vent Propane Wins
Direct vent propane is a legitimate alternative in two situations:
-
Smaller structures with lighter heating loads: For a 300-400 square-foot cabin where the design temperature is not extreme, and propane logistics are straightforward, propane direct vent can be a cost-effective fit. The lower energy density matters less when total fuel consumption is modest.
-
Easier access to propane fuel: In some locations, propane delivery is more frequent and reliable than oil delivery. Where that is the case, the logistics argument shifts. Propane's lower energy density becomes less of a constraint when resupply is not a limiting factor.
The propane vapor pressure issue near -44°F is the hard boundary. For properties where design temperatures approach or exceed that threshold, oil is the more reliable primary fuel regardless of other factors.
The Electric Case
Electric forced-air heating is not a viable primary system for most remote rural properties, and the reason is not primarily due to operating costs. It is a structural dependency. A system that requires the grid to function fails under conditions where heating demand is highest and grid reliability is lowest. In rural Alaska, those conditions coincide regularly.
For properties with reliable, affordable grid power and no exposure to outages, electric heat is a reasonable supplemental option. As a primary system in a remote or off-grid context, the risk profile is simply too high.
How to Size a Direct Vent Oil Furnace for Alaska and Other Extreme-Cold Climates
This is where most buyers make the most consequential mistake. A generic online BTU calculator that does not ask for your location's design temperature will undersize a heater for interior Alaska, where design temperatures routinely reach -40°F to -60°F. Heat loss rises with the gap between indoor and outdoor temperature. Holding 70°F inside at -40°F outside means a 110-degree gap, against 70 degrees at 0°F, so the same building loses roughly 57% more heat.
If you are using a national HVAC sizing calculator for an Alaska or extreme-cold location, it is almost certainly undercalculating your actual heating requirement. Size up.
The Sizing Formula
The basic formula for estimating BTU output requirements is:
Required BTU = Floor Area (sq ft) × Insulation Factor × Climate Adjustment
Each variable matters, and in extreme cold, all three interact in ways that simple square-footage rules miss.
Variable 1: Floor Area and Ceiling Height
Square footage is the starting point, not the full answer. Open-plan cabins, lofts, and structures with cathedral ceilings require volume-based sizing rather than floor-area-only calculations. A 600 sq ft cabin with a 12-foot vaulted ceiling has substantially more air volume to heat than a 600 sq ft cabin with an 8-foot flat ceiling.
Treat a tall or vaulted ceiling as extra heated volume, and include the ceiling height when you ask Rural Energy for sizing help.
Variable 2: Insulation Quality
Insulation quality is often the most underweighted factor in rural cabin sizing. A poorly insulated 600 sq ft structure can require more BTU output than a well-insulated 900 sq ft structure. The difference between standard and well-insulated construction in extreme cold is not marginal.
-
Standard insulation: R-13 to R-19 walls, R-30 to R-38 attic. Common in older cabins and many rural builds.
-
Well-insulated: R-21+ walls, R-49+ attic, with attention to air sealing and thermal bridging. Newer construction or upgraded older structures.
If you are not certain of your insulation level, assume standard and size accordingly.
Variable 3: Design Temperature
The design temperature is the coldest expected outdoor temperature at your location, used as the baseline for sizing. This is not the average winter temperature. It is the worst-case cold your system must handle.
Interior Alaska design temperatures typically range from -40°F to -60°F. Coastal and southcentral Alaska locations are typically warmer, but still significantly colder than the national assumptions built into most calculators.
Manufacturer Heating-Area Ratings
Toyotomi rates each Laser's heating area at two outdoor temperatures, assuming a heat load of 20 BTU per square foot per hour at 20°F and 24 at 0°F. These are the manufacturer's figures. Below 0°F the area a unit can carry shrinks further, and insulation, windows and air leakage move it in either direction. Use the table to narrow the choice, then confirm the size with Rural Energy by phone or email.
|
Toyotomi Laser model |
High output |
Rated heating area at 20°F |
Rated heating area at 0°F |
|---|---|---|---|
|
Laser 303/304 |
15,000 BTU/hr |
720 sq ft |
600 sq ft |
|
Laser 531/532 and 533/534 |
22,000 BTU/hr |
1,150 sq ft |
920 sq ft |
|
Laser 731/732, 733/734 and 734 Graphite |
40,000 BTU/hr |
2,000 sq ft |
1,670 sq ft |
Source: Toyotomi ratings as published on the Rural Energy product pages.
Reading the Table: Two Worked Examples
A 900-square-foot cabin at a 0°F design temperature points to the Laser 531/532 or Laser 533/534, which Toyotomi rates for 920 square feet at 0°F. A 1,600-square-foot home at the same design temperature points to the Laser 731/732 class, rated for 1,670 square feet at 0°F. If your design temperature is well below zero, expect each unit to carry less area than these figures, and plan for the next size up or a second heat source.
When to Use Manual J
For a whole home, especially one with tall ceilings, large windows or uneven insulation, the formal method is a Manual J heat-load calculation, the residential standard published by ACCA (the Air Conditioning Contractors of America). It works room by room from wall, window and ceiling areas, insulation levels, air leakage and your local design temperature, and a local HVAC contractor or energy rater can run it for you. For a cabin or a single open space, the manufacturer's ratings above are usually enough to narrow the choice. Either way, Rural Energy helps size units by phone and email.
A Note on Oversizing
Oversizing is a real risk that buyers sometimes overlook in the rush to ensure enough heat. A unit that is significantly oversized for the actual load will short-cycle, meaning it runs for short bursts and shuts off before completing a full combustion cycle. This leads to incomplete combustion, increased soot buildup, higher fuel consumption per unit of heat delivered, and accelerated wear on combustion components. The goal is the right size for the actual design condition, not the largest unit available.
If your structure falls between two models, call or email Rural Energy before you buy; the team helps size units by phone and email. The cost of a sizing conversation is far lower than replacing an undersized or oversized unit.
Installation Requirements and Venting
Direct-vent oil installation is simpler than a full chimney installation, but simpler does not mean simple. Vent path, clearances, wind exposure, snow depth, fuel line design, and electrical requirements all affect long-term reliability. Getting these details right at installation avoids the most common operational problems.
Wall Penetration and Vent Termination
A Toyotomi Laser vents through a single hole in a side wall, using the direct vent kit that comes with the heater. The flue is a pipe within a pipe: the outer pipe brings in outside air for combustion, and the inner pipe carries the combustion by-products outdoors. Outside, a small vent cap is all that shows.
-
Vent hole: 2-3/4 to 3 inches in diameter.
-
Vent length: a maximum of 10 feet, with 3 bends or less.
-
Wall thickness: the flue pipe adjusts to the wall, and Rural Energy carries flue pipe extensions for walls of 13 to 16, 16 to 20 and 20 to 24 inches in the direct vent oil furnace category.
-
Clearances: follow the clearances in the Toyotomi installation manual and your local code for distances to windows, doors, corners, grade and combustible surfaces.
-
Snow: keep the vent cap clear of drifting snow, and check it after heavy storms.
The Toyotomi 128 hydronic heater uses a larger 4-3/4 inch vent hole, with the same 10-foot, 3-bend limit, and can vent either through the wall with its forced flue kit or into a chimney with an adapter kit.
Fuel Supply Line Design
The fuel supply line is one of the most overlooked elements of a remote oil heater installation. Key considerations:
-
Gravity-fed vs. pump-assisted: Toyotomi Laser heaters are gravity-fed by default, meaning the fuel tank must be positioned at or above the heater's fuel inlet. If the tank is lower than the unit, an optional lifter pump (Toyotomi OPT-101) is required.
-
Fuel filter: Essential for cold-climate operation. Particulates and water contamination in the fuel line are a primary cause of nozzle failure and ignition problems. Rural Energy stocks complete fuel filter fitting kits for Toyotomi installations.
-
Fuel grade and line routing: Toyotomi Laser heaters are rated for ultra low sulfur heating oil or ultra low sulfur diesel (ASTM D975 S15), low sulfur #1 fuel oil (ASTM D396 S500) and K-1 kerosene (ASTM D3699); check with your fuel dealer which is available. In extreme cold, #1 fuel oil or K-1 resists gelling better. Route fuel lines through conditioned space where you can.
Electrical Requirements
This is a critical consideration for off-grid installations:
|
Toyotomi Laser model |
Power supply |
At startup (preheat) |
While burning |
|---|---|---|---|
|
Laser 303/304 |
120 V, 60 Hz |
240 W |
23 W |
|
Laser 531/532 and 533/534 |
120 V, 60 Hz |
240 W |
40 to 48 W |
|
Laser 731/732, 733/734 and 734 Graphite |
120 V, 60 Hz |
260 W |
54 W |
Source: Toyotomi published ratings and Rural Energy product pages.
Every current Toyotomi Laser model needs 120-volt, 60 Hz power. None runs on low-voltage controls alone, and none heats during an outage unless a generator or another backup power source supplies it. If the heater must work with no electricity at all, choose a non-electric oil drip stove from the NordicStove line.
DIY vs. Professional Installation
Direct vent oil heater installation is within the capability of an experienced DIY installer who is comfortable working with combustion appliances, fuel lines, and wall penetrations. That said:
-
Local codes in many jurisdictions require a licensed contractor installation for oil-fired appliances
-
Fuel line connections and vent sealing must be correct; errors here create safety risks, not just performance problems
-
Warranty coverage may require professional installation documentation
If you are in a remote location where a licensed technician is not accessible, prioritize careful adherence to the manufacturer installation manual and have the installation inspected at the earliest opportunity.
Rural Energy sells the equipment and helps you choose and size it by phone and email; installation is done by a local installer or, where code allows, by an experienced owner.
The Rural Energy Direct Vent Oil Heater Lineup
Rural Energy stocks the Toyotomi Laser direct vent heater lineup. Every current Laser model uses sealed combustion, needs 120-volt power, and burns ultra low sulfur heating oil or diesel, low sulfur #1 fuel oil, or K-1 kerosene. Coverage figures below are Toyotomi's ratings at 20°F outdoor temperature; colder sites need more capacity, as the sizing section explains.
Toyotomi Laser Model Comparison
|
Model |
High output |
Rated area at 20°F |
Fuel use at high |
Power |
Best for |
|---|---|---|---|---|---|
|
Laser 303/304 |
15,000 BTU/hr |
720 sq ft |
0.11 gal/hr |
120 V |
Small cabins, guest cabins, workshops |
|
Laser 531/532 |
22,000 BTU/hr |
1,150 sq ft |
0.165 gal/hr |
120 V |
Mid-size primary residences |
|
Laser 533/534 |
22,000 BTU/hr |
1,150 sq ft |
0.165 gal/hr |
120 V |
Mid-size primary residences |
|
Laser 731/732 and 733/734 |
40,000 BTU/hr |
2,000 sq ft |
0.301 gal/hr |
120 V |
Larger homes, lodges, open-plan structures |
|
Laser 734 Graphite |
40,000 BTU/hr |
2,000 sq ft |
0.301 gal/hr |
120 V |
Larger homes; adds Bluetooth alongside Wi-Fi |
Choosing the Right Model
The Laser 303/304 is rated for about 600 square feet at 0°F and 720 at 20°F, which suits a small cabin or a secondary zone in a larger structure. At colder design temperatures, step up a size or ask Rural Energy for sizing help.
The Laser 531/532 and 533/534 are rated for 920 square feet at 0°F and 1,150 at 20°F, the common size for a primary cabin or small home.
The Laser 731/732, 733/734 and 734 Graphite are rated for 1,670 square feet at 0°F and 2,000 at 20°F, for larger homes, lodges and open-plan layouts. At design temperatures well below zero, plan on less coverage than that, or on a second heat source for the coldest weeks.
Every current Laser model is Wi-Fi compatible, so you can check and change the temperature from an Apple or Android app; the Laser 734 Graphite adds Bluetooth. Remote control is a practical feature for seasonal or part-time properties, where it reduces the risk of a heating failure going unnoticed.
Not sure which model fits your structure? Contact the Rural Energy team by phone or email for sizing help. We ship across the United States and Canada and can match your heating need to the right model for your design temperature and structure.

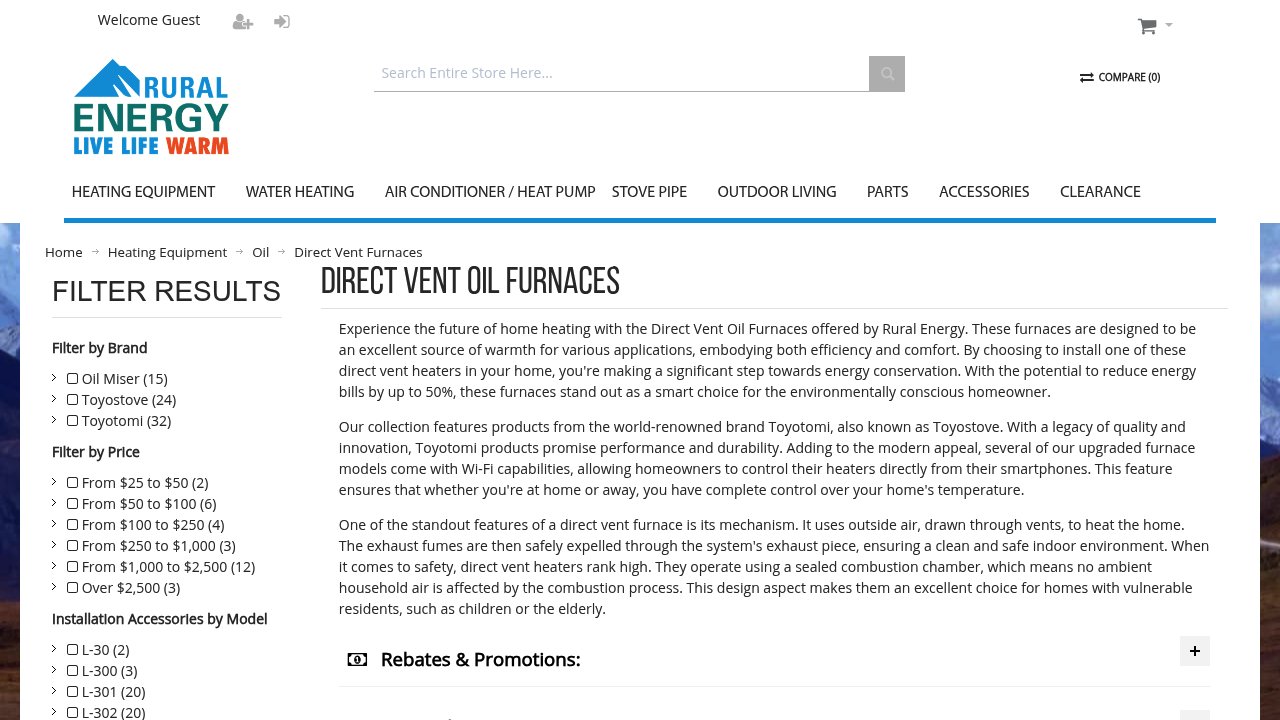

For the full direct vent oil furnace category, including installation accessories, vent kits, and fuel system components, see the Rural Energy oil heating equipment section. If your property requires a non-electric oil solution without any electrical dependency, see the non-electric oil heater category.
Hydronic Oil Heat: The Toyotomi 128
Where a direct vent heater warms the air in a room, the Toyotomi 128 hydronic heater (OM-128HH) heats water on demand and sends it through a hydronic loop, such as baseboard radiators or a radiant floor. The heat then reaches each room through that loop. For the general case for water-based heat, see the benefits of hydronic heating.
What the Specifications Say
-
Hot water output of 128,900 BTU/hr, from an input of 148,000 BTU/hr, at 87.1% efficiency.
-
Fuel use of 1.05 gallons per hour.
-
Maximum water temperature of about 176°F.
-
Flow of 6.2 gallons per minute at a 40°F temperature rise, 4.1 at 60°F and 3.1 at 80°F.
-
Fuels: K-1 kerosene, low sulfur #1 fuel oil, ultra low sulfur heating oil or diesel, and #2 fuel oil (home heating oil).
-
Venting: a forced flue through the wall (installation kit 20476440) or a chimney adapter kit in 5-inch (20476430) or 4-inch (20476415) size.
-
Power: 120 V, 60 Hz, about 120 W at ignition and 98 W while burning.
-
Fuel supply: an external tank, gravity fed.
Two practical points follow. First, the 128 burns standard #2 heating oil, which the Laser series does not, so it can run from an existing home heating oil tank without a change of fuel. Second, it is the heat source for a hydronic system, so plan the loop and its controls with your local installer before you order.
Heat With No Power at All: Oil Drip Stoves
Every Toyotomi unit above needs electricity. When the heat has to keep running through an outage with no generator, the answer is a NordicStove oil drip stove. Fuel flows by gravity from a tank set above the stove, is metered onto the burner, and burns with natural draft up a chimney. There is no fan and no circuit board, so nothing in the stove needs power.
|
NordicStove model |
BTU output |
Heating area |
Flue size |
Fuel use (gal/hr) |
|---|---|---|---|---|
|
6,800 |
Up to 250 sq ft |
3 in |
0.035 to 0.079 |
|
|
13,000 |
Up to 500 sq ft |
4 in |
0.053 to 0.150 |
|
|
25,000 |
Up to 1,000 sq ft |
5 in |
0.079 to 0.262 |
|
|
40,000 |
1,000 to 1,600 sq ft |
6 in |
0.122 to 0.399 |
Source: NordicStove specifications as published on the Rural Energy product pages.
All four burn #1 or #2 fuel oil. The trade-off against a Laser is venting: a drip stove needs a chimney with natural draft rather than a wall vent. Some NordicStove models are offered with a thermostat; each product page lists the options. For a side-by-side comparison, read oil drip stoves vs oil furnaces, and for the stoves themselves, the NordicStove oil heater guide.
Fuel Grade in Deep Cold
Fuel grade matters more as the temperature drops. Standard #2 heating oil clouds and gels in hard cold, while #1 fuel oil and K-1 kerosene stay fluid at lower temperatures, which is why they are the preferred grades for extreme-cold locations and outdoor tanks.
The three heater types differ here. The Toyotomi Laser series is rated for ultra low sulfur heating oil or diesel (ASTM D975 S15), low sulfur #1 fuel oil (ASTM D396 S500) and K-1 kerosene (ASTM D3699), not standard #2 heating oil. The Toyotomi 128 hydronic heater and NordicStove stoves also burn #2 fuel oil. If you are not sure what is in an existing tank, our Monitor heater guide explains how to confirm the grade before you connect a new heater. For every fuel side by side, and the approved list for each heater, see our guide to kerosene vs diesel vs heating oil.
For how long stored fuel keeps, the signs of bad fuel and how to store it through summer and winter, see our guide Does Kerosene Go Bad?
Parts, Serviceability, and Long-Term Reliability in Remote Locations
For a remote property owner, parts availability is not a secondary concern. It determines whether a heating failure is a minor inconvenience or a multi-week emergency. This section covers what to expect and how to prepare.
Annual Maintenance
Toyotomi Laser direct vent heaters require annual service to maintain performance and extend service life. The core tasks are:
-
Nozzle inspection and replacement: The combustion nozzle is the highest-wear component. Annual inspection and replacement when worn prevent incomplete combustion and soot buildup.
-
Fuel filter cleaning or replacement: Cold-climate operation accelerates particulate accumulation. A clogged filter is the most common cause of ignition failure.
-
Combustion chamber inspection: Check for carbon deposits, which indicate incomplete combustion, often caused by a worn nozzle or fuel contamination.
-
Ignitor check: The ignitor is a field-replaceable component. Verify spark integrity annually before the heating season.
-
Vent pipe inspection: Check intake and exhaust pipes for blockage, ice formation at the termination cap, and seal integrity at the wall penetration.
Most of these tasks are owner-serviceable with the appropriate replacement parts and the manufacturer's service manual. Rural Energy stocks replacement parts for Toyotomi and replacement parts of Toyostove units. For a remote property where the nearest HVAC technician may be hours away, and parts shipped to a remote location can take weeks, having a basic service kit on hand before the heating season is not optional. It is standard practice.
Common Field-Serviceable Failures
The most common failure modes in Toyotomi Laser heaters are:
-
Nozzle clog: The symptom is ignition failure or weak flame. The solution is nozzle cleaning or replacement.
-
Fuel filter blockage: The symptom is fuel starvation and shutdown. The solution is filter replacement.
-
Ignitor failure: No spark at startup. Ignitors are a stock replacement part.
-
Vent cap ice blockage: Symptom is combustion shutdown in extreme cold. The solution is to clear the vent termination and adjust the cap height above the snowpack.
Expected Service Life
Well-maintained Toyotomi Laser heaters in Alaska have documented operational lifespans well beyond the national average for residential oil furnaces. The pressure-atomizing combustion system has fewer wear-prone components than forced-air alternatives, and its service life is largely determined by consistent maintenance and fuel quality. Treat annual service as the primary variable within your control.
