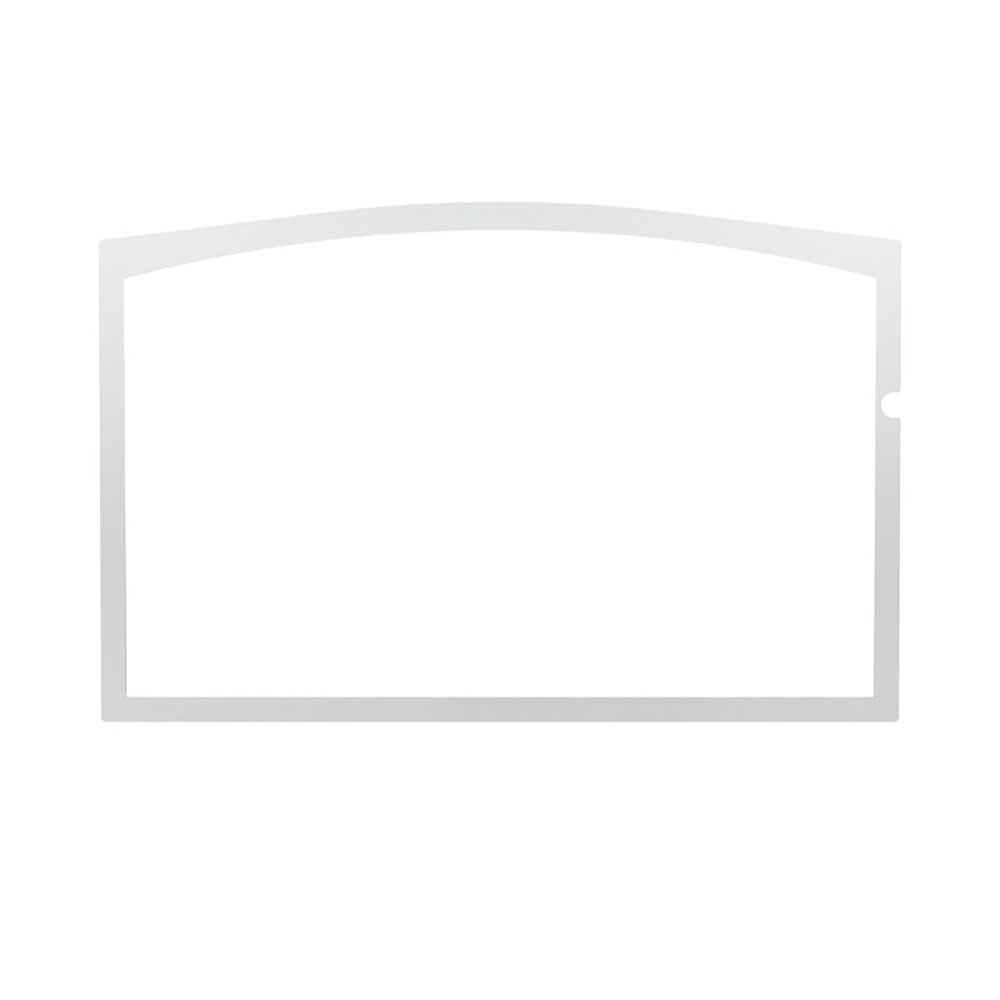

Brushed Nickel Door Overlay, 3500 Zoom

Osburn Brushed Nickel Door Overlay, 3500

OA10164

Models: OB03500, OB03500

Status: Arriving Soon

US$300.00

Description

Description

The Osburn Brushed Nickel Door Overlay, part number OA10164, is a replacement brushed nickel door overlay for the Osburn 3500 wood stove and 3500 wood fireplace insert. The door overlay is the decorative cast iron frame that mounts to the stove or insert door and surrounds the door viewing window, providing a finished decorative appearance around the glass panel and defining the door's exterior visual character.

The OA10164 is the brushed nickel finish option within the two-finish door overlay range available for the 3500 series, alongside the OA10163 black door overlay, allowing owners to select a finish that coordinates with their faceplate trim choices and interior décor. The door overlay is a required component for the Osburn 3500 — one door overlay must be installed to complete the door assembly configuration of the stove or insert.

The Osburn 3500 is a high-output wood heating appliance with a 3.5 cubic foot firebox accommodating logs up to 22 inches in length, a maximum heat output of 110,000 BTU per hour, a 77% optimum efficiency rating, and a recommended heating area of up to 2,700 square feet. It is available in both a freestanding wood stove configuration OB03500 and a wood fireplace insert configuration OB03510.

The OA10164 brushed nickel door overlay is listed at position 2 in the Osburn 3500 wood stove parts diagram and applies equally to the 3500 insert, confirming its compatibility across both 3500 series applications. The brushed nickel finish coordinates with the brushed nickel faceplate trim options available for the 3500 installation and provides a contemporary metallic appearance favoured in installations where a modern finish aesthetic is preferred.

What's Included: One Osburn OA10164 brushed nickel door overlay for the Osburn 3500 wood stove OB03500 and Osburn 3500 wood fireplace insert OB03510.

Installation Limits: All door overlay installation and replacement must be performed only when the appliance is fully cooled. Brushed nickel surfaces must not be cleaned with abrasive materials to avoid damaging the finish. All installation must follow the Osburn 3500 owner's manual door overlay installation instructions.

Compatibility: Compatible with the Osburn 3500 wood stove OB03500 and the Osburn 3500 wood fireplace insert OB03510.

Features

Features

  • Replacement brushed nickel door overlay for the Osburn 3500 wood stove and 3500 wood fireplace insert, providing the brushed nickel finished cast iron decorative frame that surrounds the door viewing window
  • Required component for the Osburn 3500 door assembly — one door overlay must be installed to complete the stove or insert door configuration
  • Brushed nickel finish option within the two-finish door overlay range for the 3500 series — also available in black as OA10163
  • Compatible with both the Osburn 3500 freestanding wood stove OB03500 and the Osburn 3500 wood fireplace insert OB03510
  • Brushed nickel finish coordinates with the brushed nickel faceplate trim options OA10126 and OA10129 available for the 3500 installation
  • All installation must be performed only when the appliance is fully cooled — brushed nickel surfaces must not be cleaned with abrasive materials to avoid finish damage

Specifications

Specifications

Part Number: OA10164
Brand: Osburn
Manufacturer: Stove Builder International (SBI)
Part Type: Door Overlay
Finish: Brushed Nickel
Material: Cast Iron
Compatible Models: Osburn 3500 Wood Stove OB03500 and Osburn 3500 Wood Fireplace Insert OB03510
Available Finish Alternative: OA10163 Black Door Overlay



The Osburn OA10164 Brushed Nickel Door Overlay is an OEM SBI replacement brushed nickel cast iron door overlay for the Osburn 3500 wood stove and 3500 wood fireplace insert, providing the brushed nickel finish option within the 3500 series two-finish door overlay range as a required component to complete the door assembly configuration.



Support

Support


Product FAQ

What is the function of the door overlay on the Osburn 3500 wood stove and insert?

The door overlay is the cast iron decorative frame that mounts to the stove or insert door and surrounds the door viewing window, providing the finished decorative appearance around the glass panel and defining the door's exterior visual character. It is a required component — the door overlay must be installed to complete the door assembly configuration of the Osburn 3500. The overlay installs to the door frame and is available in two finish options that allow the door appearance to be coordinated with the faceplate trim and other hardware choices on the installation.

What is the difference between the OA10163 black overlay and the OA10164 brushed nickel overlay for the Osburn 3500?

The OA10163 and OA10164 are both cast iron door overlays for the Osburn 3500 series and are identical in form and function. The sole difference is the finish — the OA10163 is the black finish overlay and the OA10164 is the brushed nickel finish overlay. The finish selected should be based on the owner's preferred visual configuration for the completed installation. Owners wishing to coordinate the door overlay with the brushed nickel faceplate trim options should select the OA10164, while those preferring a traditional all-black or contrasting black-and-nickel finish configuration should select the OA10163.

Is the OA10164 door overlay compatible with both the 3500 freestanding stove and the 3500 insert?

Yes. The OA10164 brushed nickel door overlay is listed as the brushed nickel door overlay option for both the Osburn 3500 freestanding wood stove OB03500 and the Osburn 3500 wood fireplace insert OB03510. Both the stove and insert share the same door assembly SE24297 and door overlay part numbers, confirming that the OA10164 is compatible across both 3500 series applications.

What faceplate trim options coordinate with the OA10164 brushed nickel door overlay on the Osburn 3500?

For a fully coordinated brushed nickel finish installation, the OA10164 brushed nickel door overlay pairs with the OA10126 brushed nickel faceplate trim for the 32-inch by 44-inch regular faceplate or the OA10129 brushed nickel large faceplate trim for the 32-inch by 50-inch large faceplate. Owners may also select a contrasting finish combination by pairing the OA10164 brushed nickel door overlay with the OA10125 black trim for the regular faceplate or the OA10128 black trim for the large faceplate, producing a two-tone appearance that adds visual dimension to the completed installation.

How should the brushed nickel finish on the OA10164 door overlay be cleaned and maintained?

Brushed nickel surfaces should be cleaned only with a soft clean damp cloth when the appliance is fully cooled. Abrasive cleaners, abrasive cloths, and any cleaning product with abrasive properties must not be used on brushed nickel surfaces, as these will scratch or damage the finish permanently. The overlay must never be cleaned while the appliance retains heat from recent operation, as contact with heated cast iron components poses a severe burn hazard. Maintaining the brushed nickel finish at its original quality requires avoiding all chemical or abrasive contact during cleaning.

What other door assembly components work with the OA10164 overlay on the Osburn 3500?

The OA10164 brushed nickel door overlay mounts to the SE24297 Osburn 3500 door assembly. The door assembly also includes the round wooden door handle, the SE65024 replacement handle with latch kit, and the AC09185 door latch kit. The door glass SE70902 with the AC06400 glass gasket completes the door viewing panel. The AC06500 silicone and 5/8-inch by 8-foot black door gasket kit provides the door perimeter seal. The condition of all door assembly components should be inspected whenever the door overlay is being serviced or replaced.
