Osburn 1700 Wood Stove

*Pricing reflects additional freight costs to Alaska.

The Osburn 1700 Wood Stove, part number OB01700, is a compact wood-burning heater designed to provide dependable warmth for small to medium living spaces. It delivers strong heating performance with a durable steel firebox and efficient combustion design. The stove supports consistent heat output while maintaining a manageable footprint for installation in tighter spaces.

With a recommended heating area of up to 1,800 square feet, the Osburn 1700 Wood Stove can comfortably heat a wide range of spaces. Its durable construction and advanced features ensure optimal heat distribution and long-lasting durability. The stove's firebox can accommodate logs up to 17 inches long, allowing for convenient and efficient fueling.

The 1700 Wood Stove boasts a maximum heat output of 65,000 BTU/h (19 kW), providing ample warmth to keep your space cozy even on the coldest days. Its efficient design and high overall efficiency of 75% ensure effective fuel utilization and reduced emissions. The stove also features a built-in ash pan for easy maintenance and cleaning.

This wood stove features a non-catalytic combustion system and a firebox lined with high-density refractory bricks to improve heat retention and combustion efficiency. The unit includes a cast iron door with a ceramic glass viewing window and an air-wash system that helps maintain visibility of the fire. A built-in ash pan simplifies maintenance, while the top heat deflector directs warm air into the living area for improved heat distribution.

Whether you're looking to enhance the ambiance of your living room or create a warm and inviting atmosphere in a cabin getaway, the Osburn 1700 Wood Stove is a reliable choice. Experience the perfect blend of style, performance, and efficiency with the Osburn 1700 Wood Stove and enjoy the cozy comfort it brings to your space.

What’s Included: Osburn 1700 wood stove unit with integrated ash pan and firebox components.

Installation Limits: Designed for freestanding installation using an approved chimney and connector pipe system.

Compatibility: Compatible with 6-inch chimney systems and approved wood stove venting components.

Required Accessories:

Requires the addition of one each of (A) and (B) required accessories to complete the unit

A:

• OA10249  Black Door Overlay
• OA10250  Brushed Nickel Door Overlay

B:

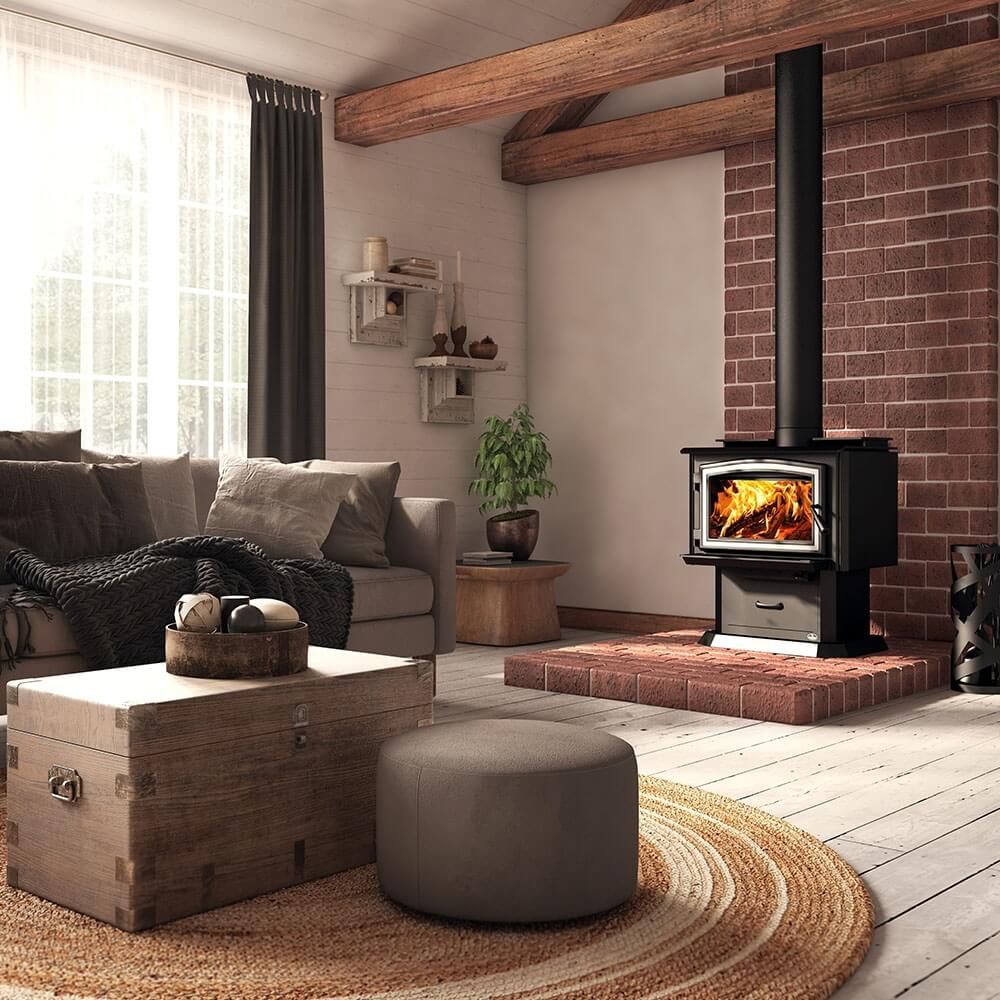

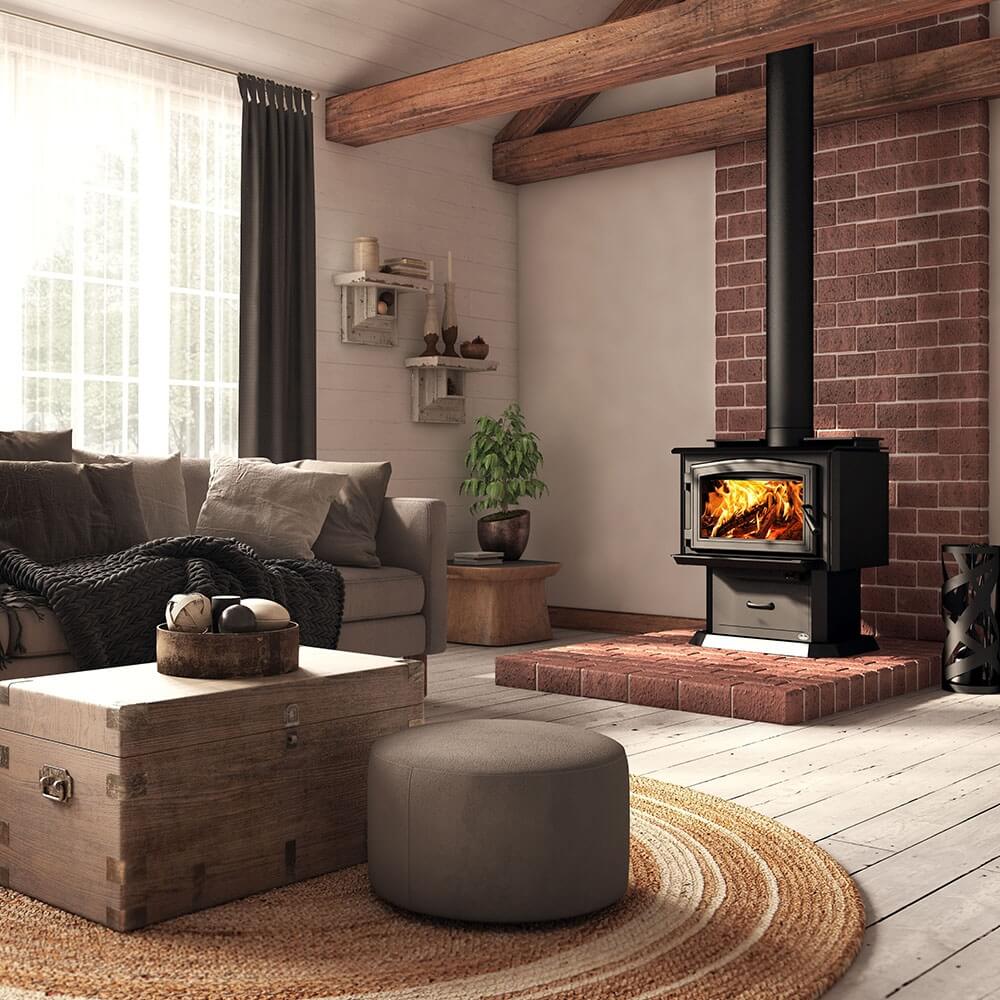

• OA10244  Pedestal With Ash Drawer

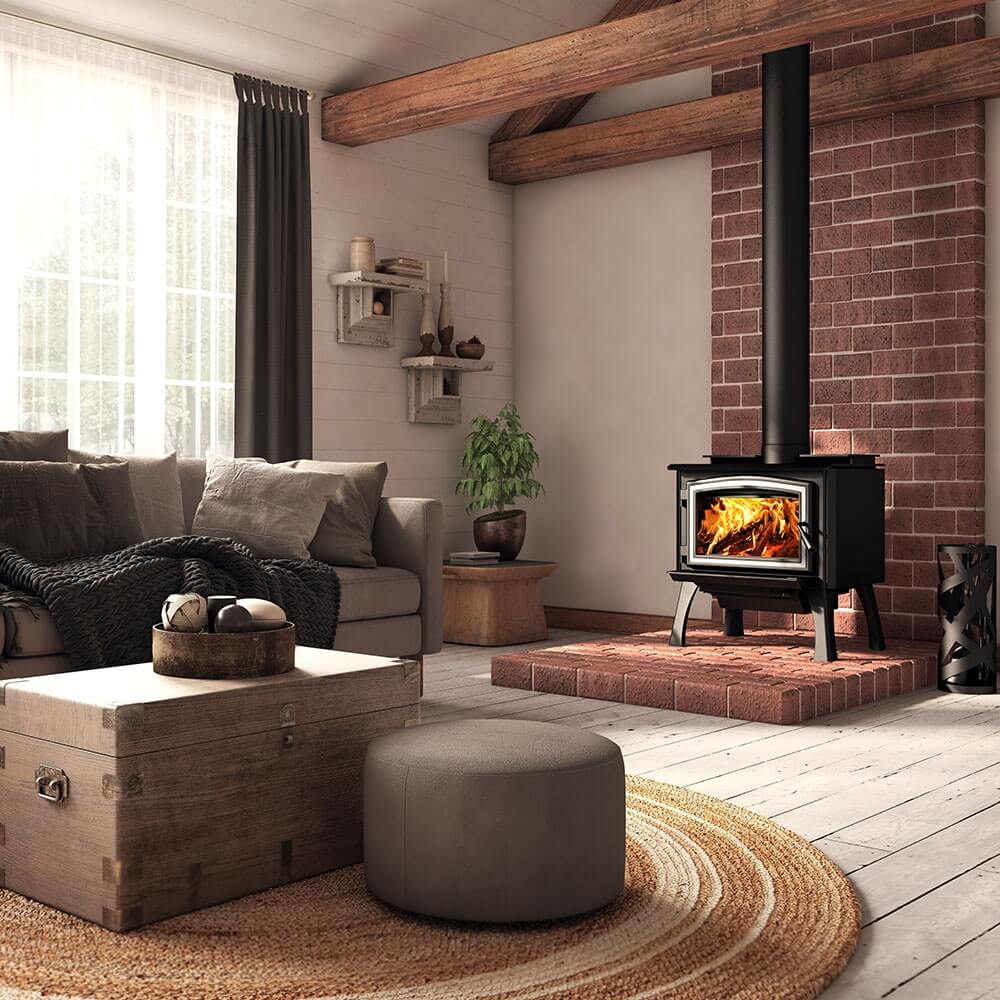

• OA10247  Black Cast Iron Traditional Legs With Ash Drawer

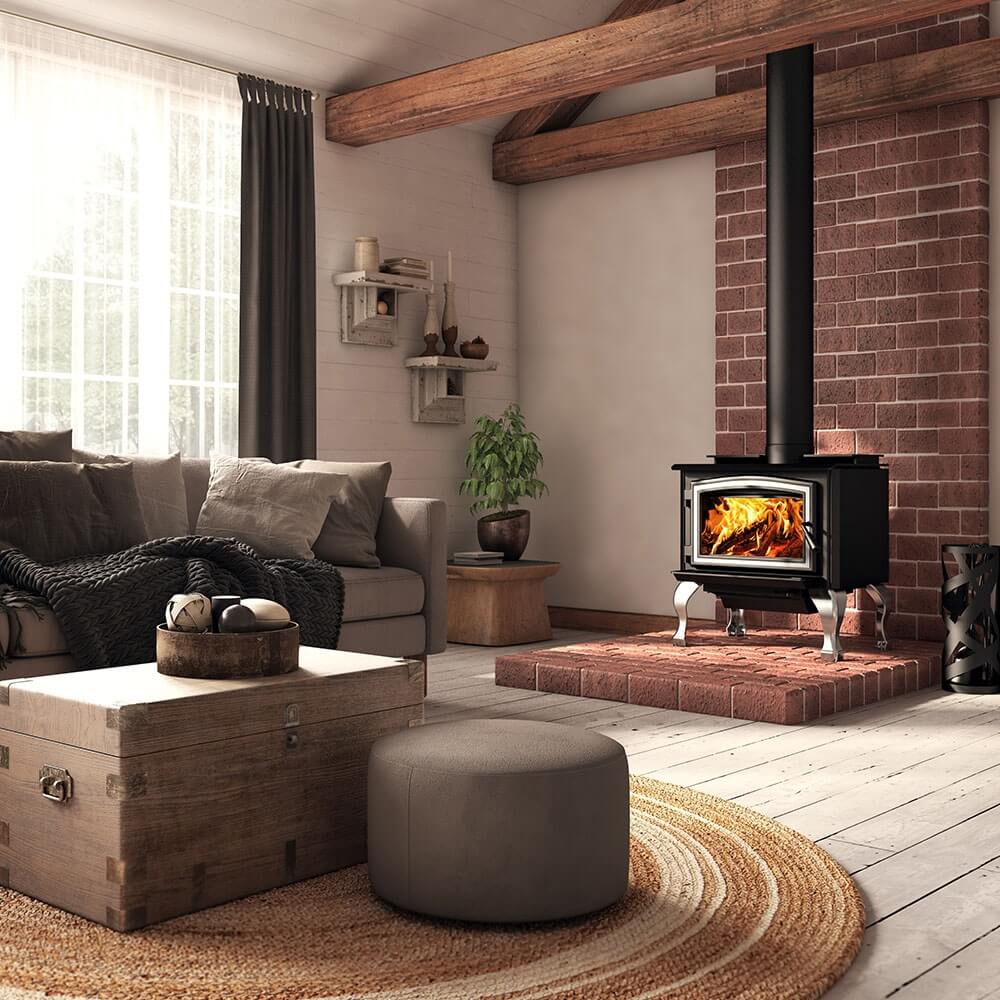

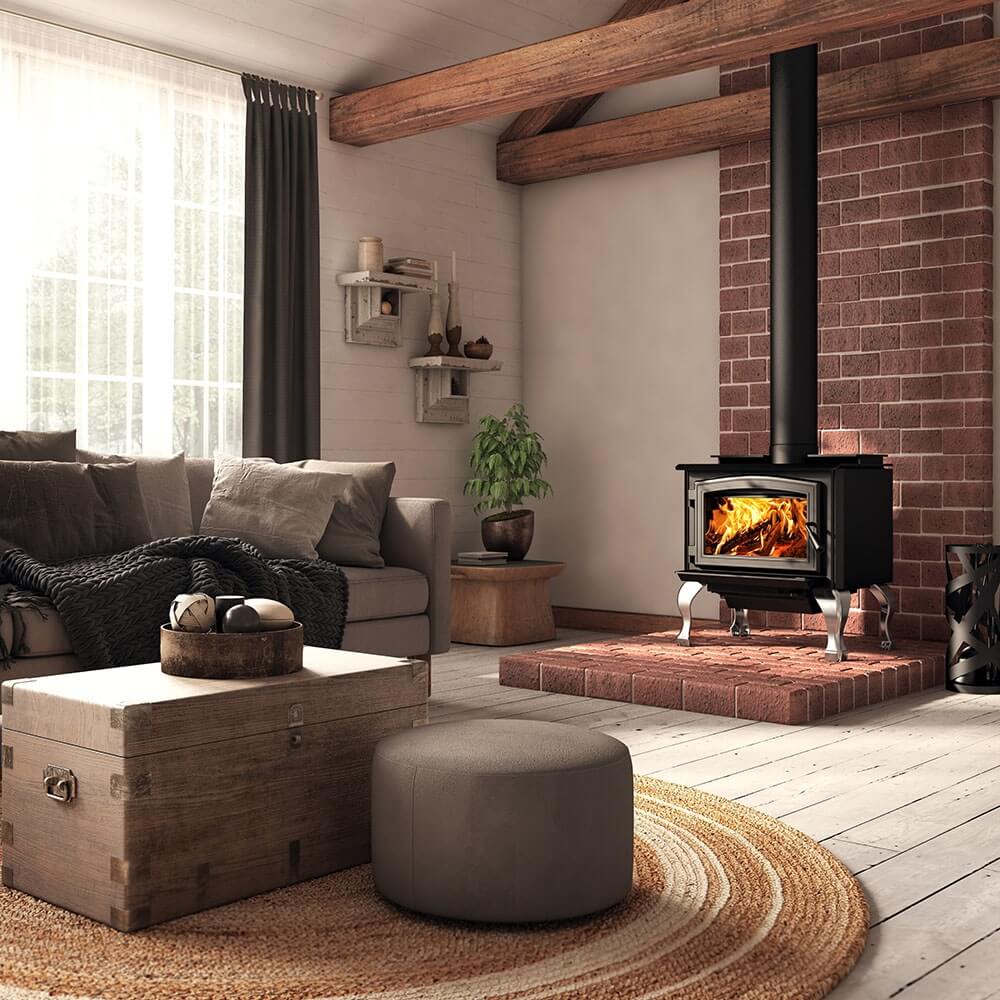

• OA10248  Brushed Nickle Cast Iron Traditional Legs With Ash Drawer

Options:

• AC01000  130 CFM Blower With Variable Speed Control (Thermodisc Included)

• Compact wood stove designed for small to medium spaces
• Non-catalytic combustion system for efficient wood burning
• High-density refractory brick-lined firebox
• Cast iron door with ceramic glass viewing window
• Built-in ash pan for simplified cleaning and maintenance
• Top heat deflector improves forward heat distribution
• Fuel type: Dry cordwood
• Recommended heating area (sq.ft.): 500-1,800
• Firebox volume (cu. ft.): 1.9
• Maximum burn time: 6 h
• Maximum heat output (dry cordwood): 65,000 BTU/h (19 kW)
• Overall heat output rate (min. to max.): 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
• Average overall efficiency (EPA cribs / Douglas fir): N.A (HHV) N.A. (LHV)
• Average overall efficiency (dry cordwood): 70% (HHV) 75% (LHV)
• Optimum efficiency: 78%
• Average particulate emissions rate: 1.26 g/h
• Average CO: 58 g/h

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

 Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

As measured per CSA B415.1-10 stack loss method.

Higher Heating Value of the fuel.

Lower Heating Value of the fuel.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

Optimum overall efficiency at a specific burn rate (LHV).

This appliance is officially tested and certified by an independent agency.

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)

                                                                                     Canada                    USA

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
