Osburn Matrix Wood Stove W/Blower

*Pricing reflects additional freight costs to Alaska.

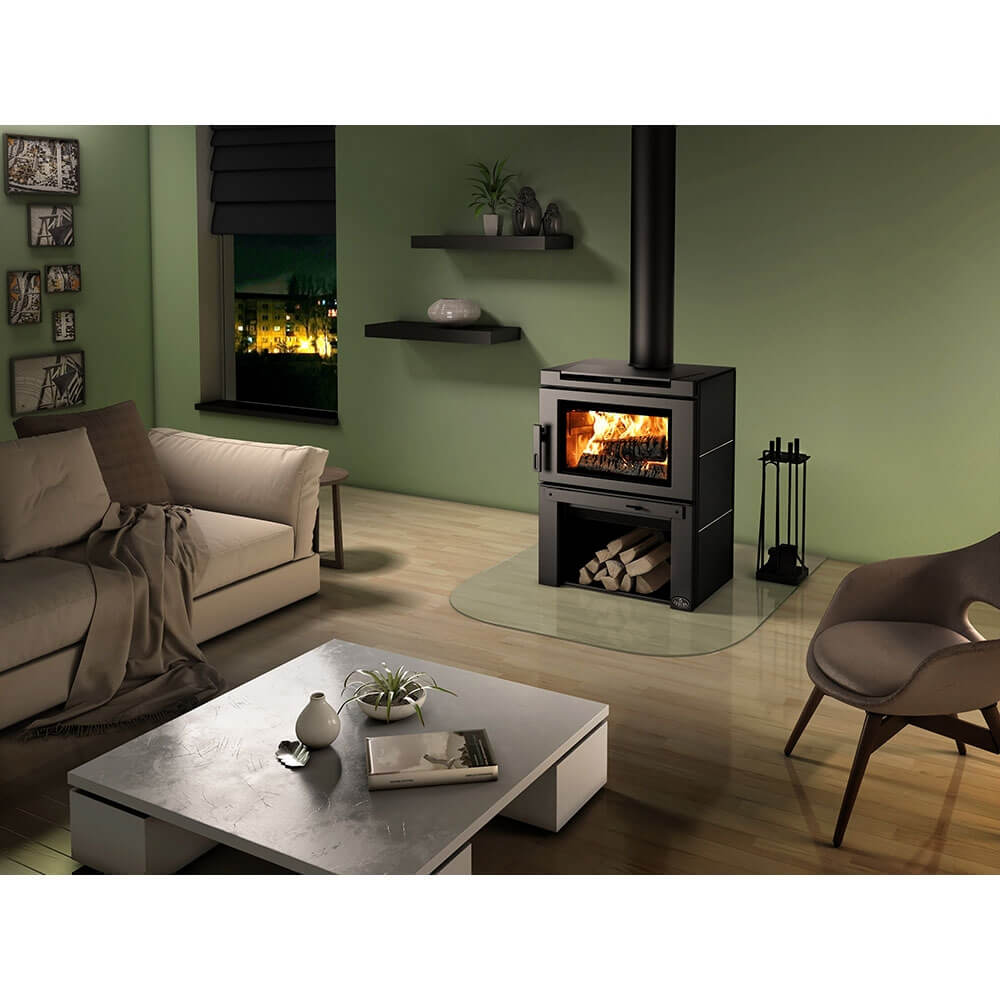

The Osburn Matrix Wood Stove with Blower, part number OB02032, is a freestanding wood-burning stove designed to deliver efficient heat for medium to large living spaces. It produces up to 75,000 BTUs of heating capacity and supports consistent performance across a wide heating range. The modern pedestal-style design combines functional heating with a contemporary appearance suited for residential installations.

With its sleek and modern design, the Osburn Matrix Wood Stove adds a touch of sophistication to any space. Its recommended heating area of up to 2,100 square feet makes it suitable for a range of room sizes and layouts. Whether you want to cozy up your living room or provide efficient heating for a cabin retreat, the Matrix Wood Stove delivers.

Equipped with a powerful blower, this stove ensures optimal heat distribution throughout your space, reaching every corner with ease. The blower enhances heat circulation, allowing for faster and more even warming of your environment.

Featuring a firebox volume of 2.4 cubic feet, the Matrix Wood Stove can accommodate larger logs, enabling longer burn times. With a maximum heat output of 75,000 BTU/h (22.0 kW), this stove provides substantial warmth to keep you comfortable during colder seasons.

The Matrix Wood Stove prioritizes efficiency, with an average overall efficiency of 72% (HHV) and 77% (LHV). Its low average particulate emissions rate of 2.3 g/h and average CO emissions of 69 g/h make it an environmentally-conscious choice.

This stove uses a non-catalytic combustion system and includes an integrated blower to improve warm air distribution throughout the space. The firebox offers a 2.4 cubic foot capacity and supports extended burn cycles while maintaining efficient combustion. A ceramic glass viewing window with an air-wash system helps maintain visibility of the fire while supporting cleaner operation.

Upgrade your heating system with the Osburn Matrix Wood Stove with Blower and experience the perfect blend of performance and style. Enjoy the warmth and comfort it brings while adding a modern focal point to your space.

What’s Included: Wood stove unit with integrated blower and firebox components.

Installation Limits: Designed for freestanding installation using an approved chimney and connector pipe system.

Compatibility: Compatible with 6-inch chimney systems and approved wood stove venting components.

A Tax Credit is available for this product!

Required Accessories:

Requires the addition of one each of (A) and (B) required accessories to complete the unit

A:

• OA10700  Black Side Panels Kit

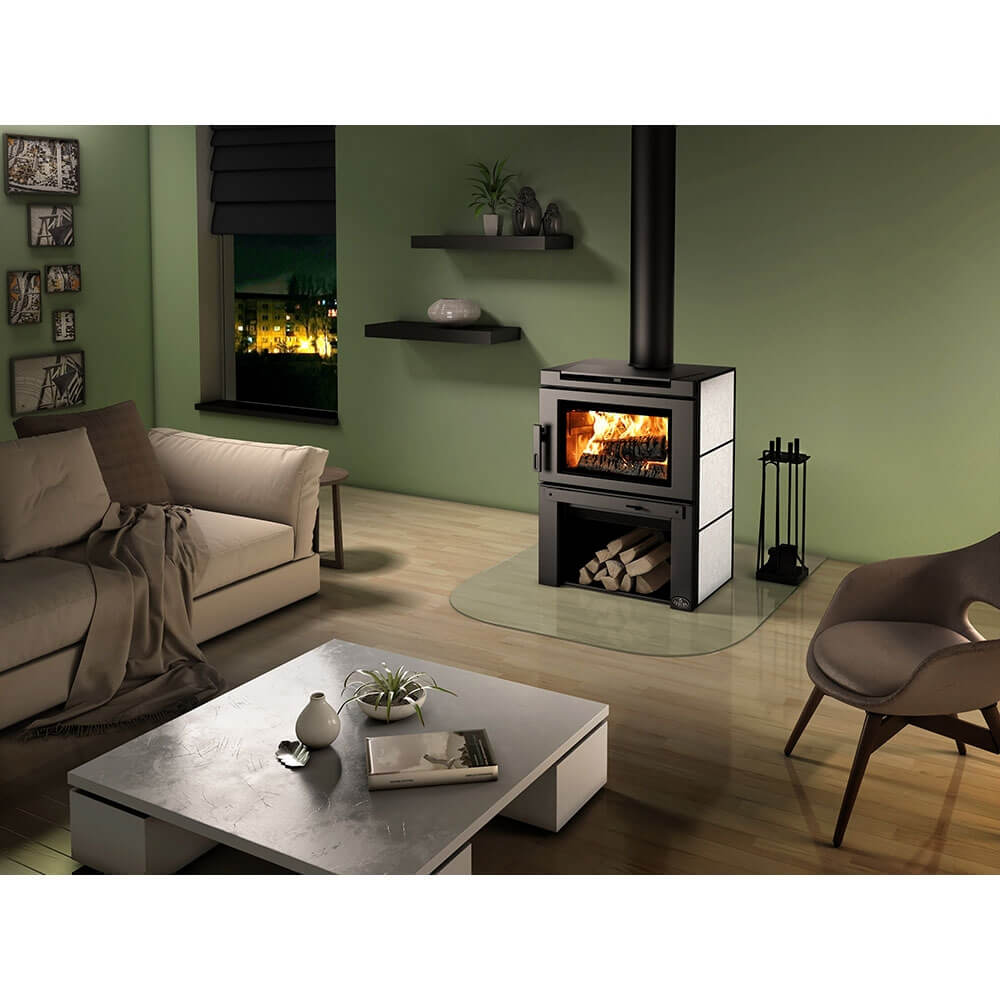

• OA10701  Soapstone Side Panels Kit

B:

• OA10703  Soapstone Panel Top

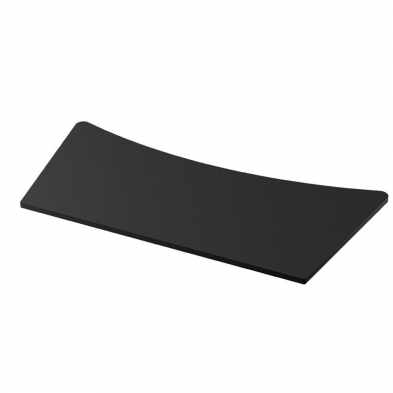

• OA10704  Black Panel Top

• Freestanding wood stove designed for medium to large spaces
• Non-catalytic combustion system for efficient wood burning
• 2.4 cubic foot firebox supports extended burn cycles
• Integrated blower improves warm air circulation
• Ceramic glass viewing window with air-wash system
• Fuel type: Dry cordwood
• Recommended heating area (sq. ft.): 500 - 2,100
• Overall firebox volume: 2.4
• EPA loading volume (cu. ft.): 2.02
• Maximum burn time: 8 h
• Maximum heat output (dry cordwood): 75,000 BTU/h (22.0 kW)
• Overall heat output rate (min. to max.): 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
• Average overall efficiency (EPA cribs/Douglas fir): N.A. (HHV) N.A. (LHV)
• Average overall efficiency (dry cordwood): 69% (HHV) 74% (LHV)
• Optimum efficiency: 77%
• Average particulate emissions rate: 1.54 g/h
• Average CO: 89.4 g/h

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(Average Overall Efficiency) As measured per CSA B415.1-10 stack loss method.

(HHV) Higher Heating Value of the fuel.

(LHV) Lower Heating Value of the fuel.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

Optimum overall efficiency at a specific burn rate (LHV).

This appliance is officially tested and certified by an independent agency.

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)

                                                                                    Canada                     USA

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
