Osburn Inspire 2000-I Wood Insert

OB02045

Status: In Stock

US$3,149.00

Description

Description

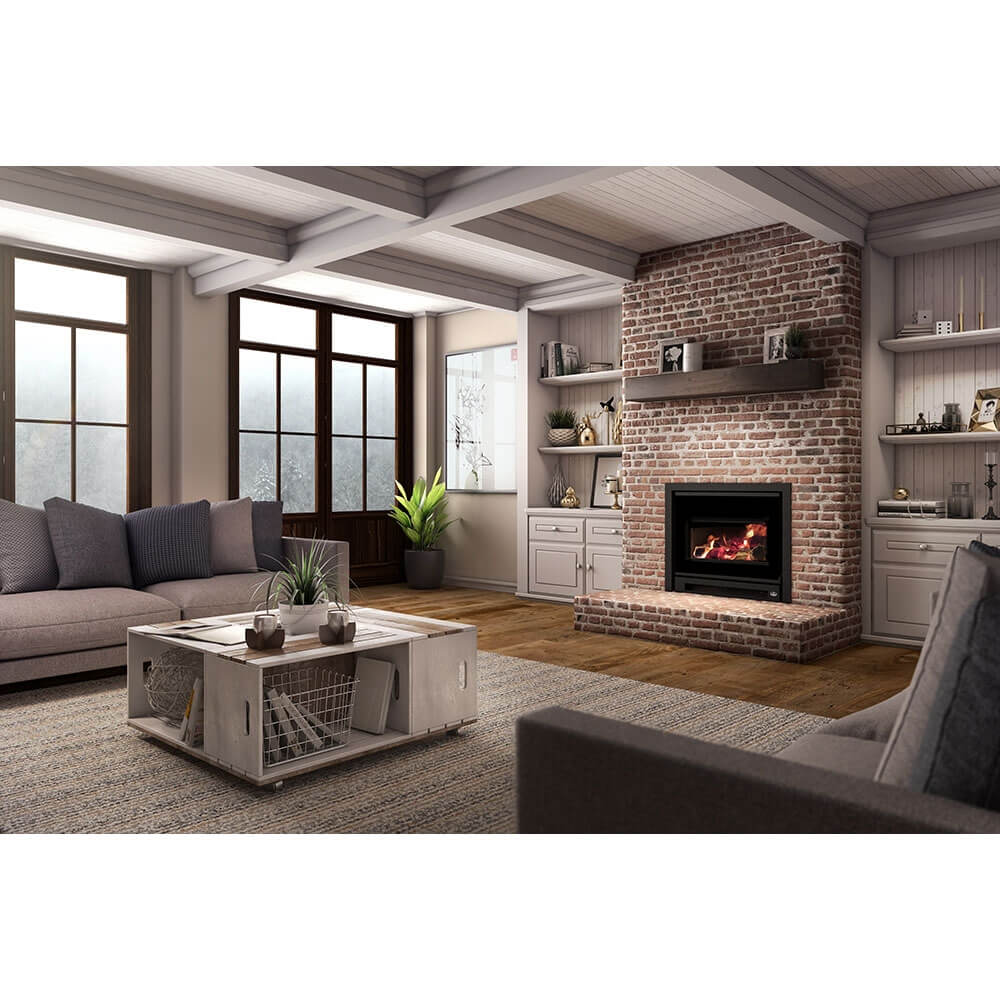

Ignite your home with the Inspire Wood Insert by Osburn Manufacturing, a revolutionary heating solution that combines cutting-edge technology with exquisite design. Designed to seamlessly transform your existing fireplace, the Inspire Wood Insert redefines efficiency and style in the realm of home heating.

Efficiency takes center stage with the Inspire Wood Insert. Equipped with advanced combustion technology, this insert maximizes heat output while minimizing fuel consumption, providing you with a cost-effective and environmentally friendly heating option. Experience the joy of a warm and cozy home as the Inspire efficiently distributes radiant heat throughout your living space, ensuring comfort during chilly winter nights.

Not only does the Inspire Wood Insert excel in performance, but it also captivates with its stunning aesthetics. The large, unobstructed glass viewing area beautifully showcases the dancing flames, creating a mesmerizing focal point that enhances the ambiance of your room. Crafted with attention to detail, the Inspire features clean lines, sleek finishes, and customizable options, allowing you to personalize the insert to perfectly complement your home decor.

Installation of the Inspire Wood Insert is seamless and hassle-free, as it effortlessly fits into most standard fireplace openings. With convenient controls for adjusting heat output and an innovative air wash system that keeps the glass clean, operating and maintaining the insert is a breeze. Embrace the allure of the Inspire Wood Insert and let it become the heart of your home, providing both warmth and visual delight to you and your loved ones.

Upgrade your fireplace to a new level of efficiency and elegance with the Inspire Wood Insert by Osburn Manufacturing. Embrace the perfect harmony of style and functionality and create a cozy sanctuary that embodies warmth and sophistication. Experience the transformative power of the Inspire Wood Insert and indulge in the unmatched comfort and beauty it brings to your living space.

A Tax Credit is available for this product!

Required Accessories:

Requires the addition of one each of (A)required accessories to complete the unit

A:

  • AC01020 30" X 25 1/8" Narrow Faceplate (U Shape)
  • AC01021 32" X 50" Cuttable Faceplate (16 GA)
  • AC01022 30" X 26 7/8" Narrow Faceplate (4 Sided)

Features

Features

  • Fuel type: Dry cordwood
  • Recommended heating area (sq. ft.): 500 - 2,100
  • Overall firebox volume: 2.4
  • EPA loading volume (cu. ft.): 2.02
  • Maximum burn time: 8 h
  • Maximum heat output (dry cordwood): 75,000 BTU/h (22 kW)
  • Overall heat output rate (min. to max.): 14,800 BTU/h (4.34 kW) to 28,600 BTU/h (8.38 kW)
  • Average overall efficiency (EPA cribs/Douglas fir): N.A. (HHV) N.A. (LHV)
  • Average overall efficiency (dry cordwood): 69% (HHV) 74% (LHV)
  • Optimum efficiency: 77%
  • Average particulate emissions rate: 1.54 g/h
  • Average CO: 89.4 g/h

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(Average Overall Efficieny) As measured per CSA B415.1-10 stack loss method.

(HHV) Higher Heating Value of the fuel.

(LHV) Lower Heating Value of the fuel.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

Optimum overall efficiency at a specific burn rate (LHV).

 This appliance is officially tested and certified by an independent agency.



Specifications

Specifications

Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 20"
Log positioning: Over width
Chimney diameter: 6"
Type of chimney: Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet): 12'
Baffle type: C-Cast
Approved for a mobile home installation: No
Shipping Weight: 420 lb (191 kg)
Door type: Single, glass with steel frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 24 13/16" X 18 1/2"
Glass air-wash system: Yes
Premium quality blower included (CFM): 176
Overall dimension (Height): 24"
Overall dimension (Width): 28 1/2"
Overall dimension (Depth): 20 3/4"
Door opening – dimension (Height): 8 1/4"
Door opening - dimension (Width): 20"
Firebox – dimension (Height): 11 3/4"
Firebox – dimension (Width): 21"
Firebox – dimension (Depth): 16 3/4"
Firebox lined with refractory bricks for better heat distribution: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: No
Steel thickness – body: 3/16"
Steel thickness – top: 3/8"
Fireplace opening – minimum (Height): 24 5/8"
Fireplace opening – minimum (Width): 29"
Fireplace opening – minimum (Depth): 20 3/4"
USA standard (emissions): EPA Method 28
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, UL 737
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)

Clearance – top (measured from the platform on which the appliance is installed)** N.A. N.A.
Clearance – combustible side mantle to unit 9" 9"
Clearance – combustible top mantle to unit 27" 27"
Clearance – combustible side wall to unit 16" 16"
Clearance – minimum floor protection in front of the appliance 18" 16"
Clearance – top shelf to unit 27" 27"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
