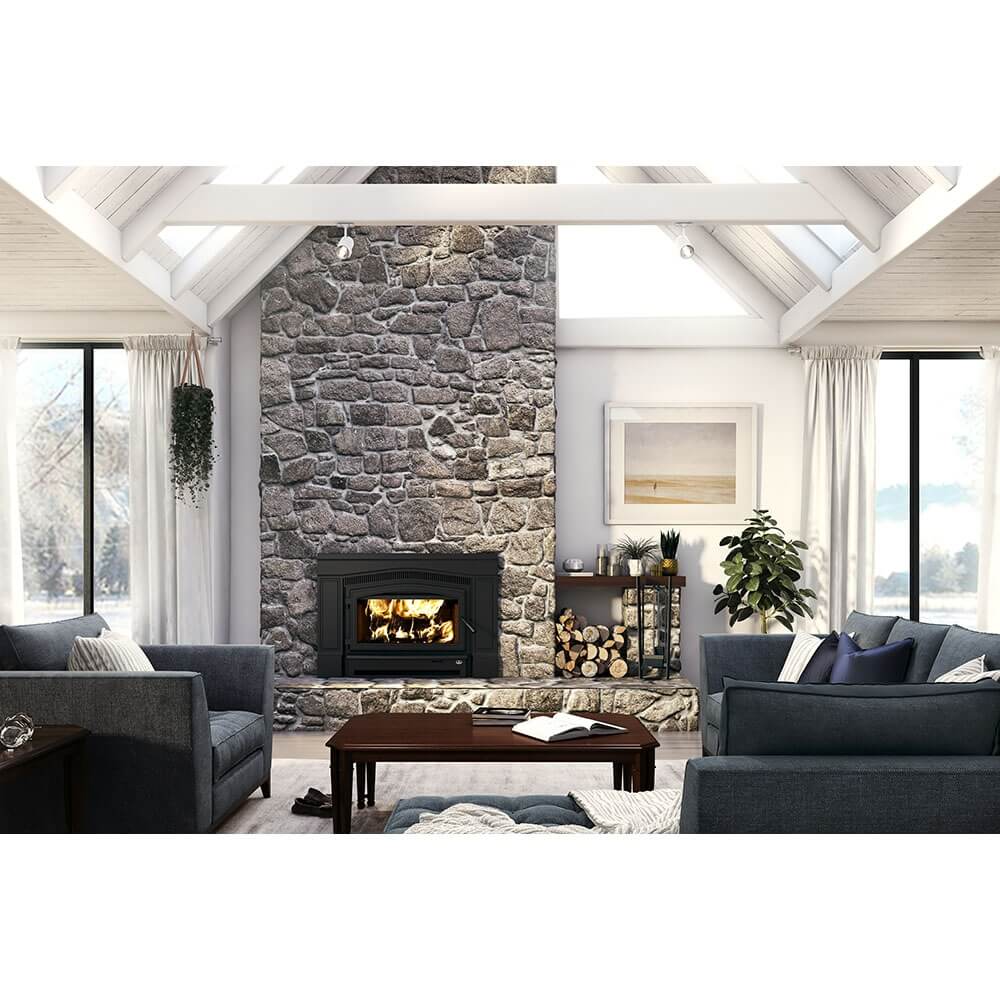

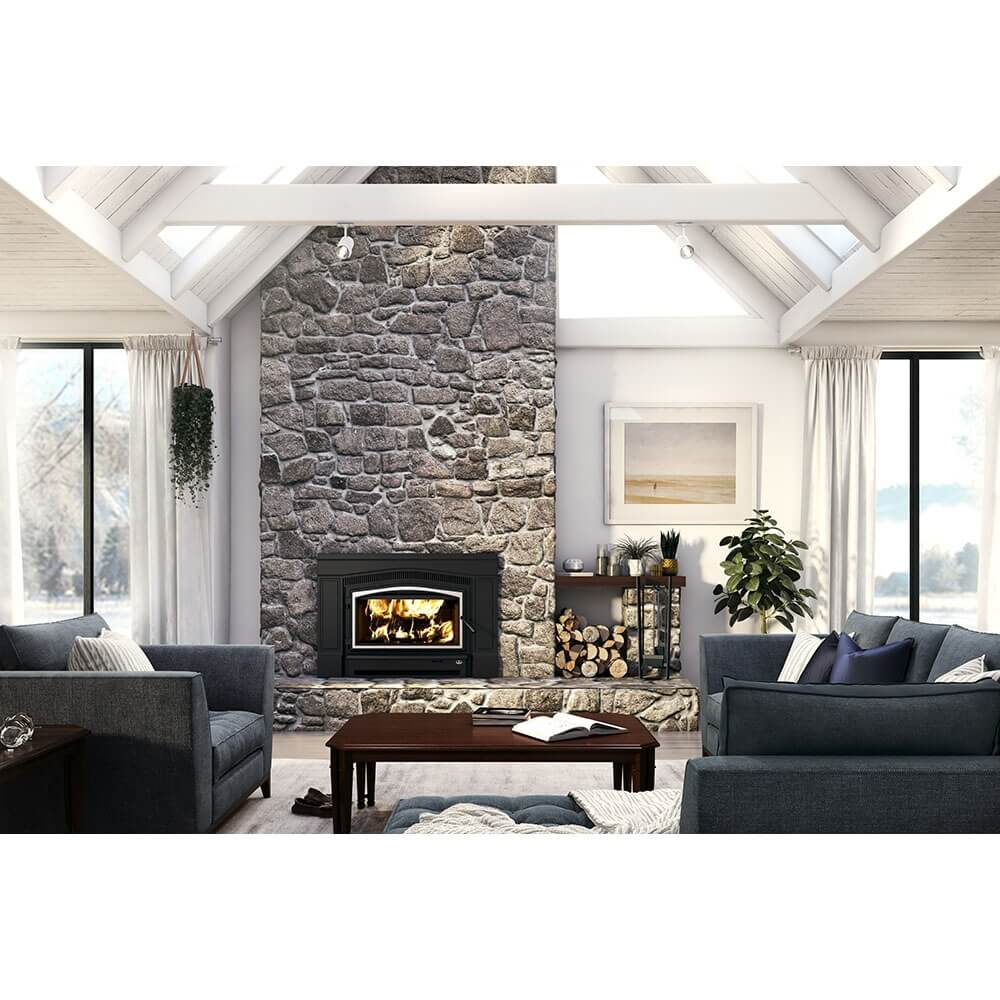

Osburn Matrix 2700 Wood Insert

OB02700

Status: In Stock

US$4,099.00

Description

Description

The Matrix 2700 Wood Insert is the perfect solution to transform your existing fireplace into a high-performance heating appliance. With its sleek design and efficient functionality, this wood insert is ideal for medium to large-sized applications.

Designed to heat spaces ranging from 750 to 2,200 square feet, the Matrix 2700 Wood Insert provides reliable and consistent warmth throughout your home. Its overall firebox volume of 2.5 cubic feet allows for ample wood storage, ensuring longer burn times and less frequent refueling.

With a maximum heat output of 80,000 BTU/h (23.4 kW), this wood insert delivers exceptional heating performance. It offers an impressive overall heat output rate, ranging from 12,700 BTU/h (4.16 kW) to 60,700 BTU/h (14.13 kW), giving you the flexibility to adjust the heat intensity according to your comfort needs.

Not only does the Matrix 2700 Wood Insert provide efficient heating, but it also boasts excellent overall efficiency, with a rating of 64% (HHV) and 68% (LHV) when using dry cordwood. This means you can enjoy the warmth while minimizing fuel consumption and maximizing energy efficiency.

Whether you have a medium-sized living room or a larger open-concept space, the Matrix 2700 Wood Insert offers the perfect balance of heating power and efficiency, making it an ideal choice for enhancing the comfort and ambiance of your home.

A Tax Credit is available for this product!

Required Accessories:

Requires the addition of one each of (A)required accessories to complete the unit

A:

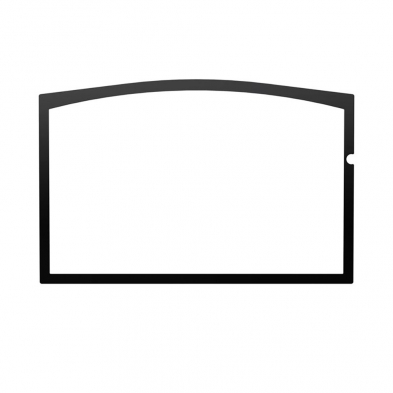

  • OA10253 Black Door Overlay

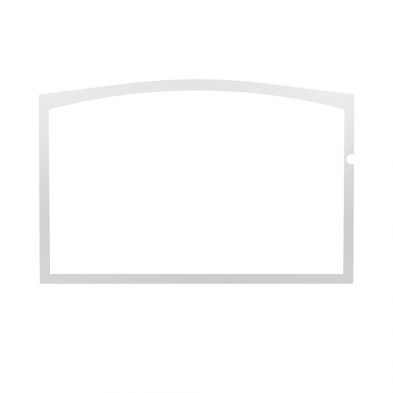

  • OA10254 Brushed Nickle Door Overlay

Features

Features

  • Fuel type: Dry cordwood
  • Recommended heating area (sq. ft.): 750 - 2,200
  • Overall firebox volume: 2.5
  • EPA loading volume (cu. ft.): 1.69
  • Maximum burn time: 8 h
  • Maximum heat output (dry cordwood): 80,000 BTU/h (23.4 kW)
  • Overall heat output rate (min. to max.): 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
  • Average overall efficiency (EPA cribs/Douglas fir): N.A. (HHV) N.A. (LHV)
  • Average overall efficiency (dry cordwood): 68% (HHV) 73% (LHV)
  • Optimum efficiency: 74%
  • Average particulate emissions rate: 1.14 g/h
  • Average CO: 53 g/h

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(Average Overall Efficieny) As measured per CSA B415.1-10 stack loss method.

(HHV) Higher Heating Value of the fuel.

(LHV) Lower Heating Value of the fuel.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

Optimum overall efficiency at a specific burn rate (LHV).

 This appliance is officially tested and certified by an independent agency.



Specifications

Specifications

Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 20"
Log positioning: Over width
Chimney diameter: 6"
Flue outlet diameter: 6"
Type of chimney: Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet): 15'
Baffle type: C-Cast
Approved for a mobile home installation: No
Shipping Weight: 535 lb (243kg)
Door type: Single, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 24 3/8" X 12 5/8"
Glass air-wash system: Yes
Premium quality blower included (CFM): 176
Overall dimension (Height): 30 1/8"
Overall dimension (Width): 43 5/8"
Overall dimension (Depth): 27 1/4"
Door opening – dimension (Height): 10 1/2"
Door opening - dimension (Width): 25 3/8"
Firebox – dimension (Height): 12 3/8"
Firebox – dimension (Width): 22 5/8"
Firebox – dimension (Depth): 12 7/8"
Moulded refractory bricks: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Adjustable threaded legs: Yes
Fireplace opening – minimum (Height): 27 1/8"
Fireplace opening – minimum (Width): 31 3/4"
Fireplace opening – minimum (Depth): 22 1/8"
USA standard (emissions): EPA
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 1482, UL 737
Canadian standard (safety): ULC S628
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime



Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)

                                                                              Canada   USA

Clearance – top (measured from the platform on which the appliance is installed)** 84" 84"
Clearance – combustible side mantle to unit 9 1/2" 9 1/2"
Clearance – combustible top mantle to unit 12" 12"
Clearance – combustible side wall to unit 19" 19"
Clearance – minimum floor protection in front of the appliance 18" 16"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
