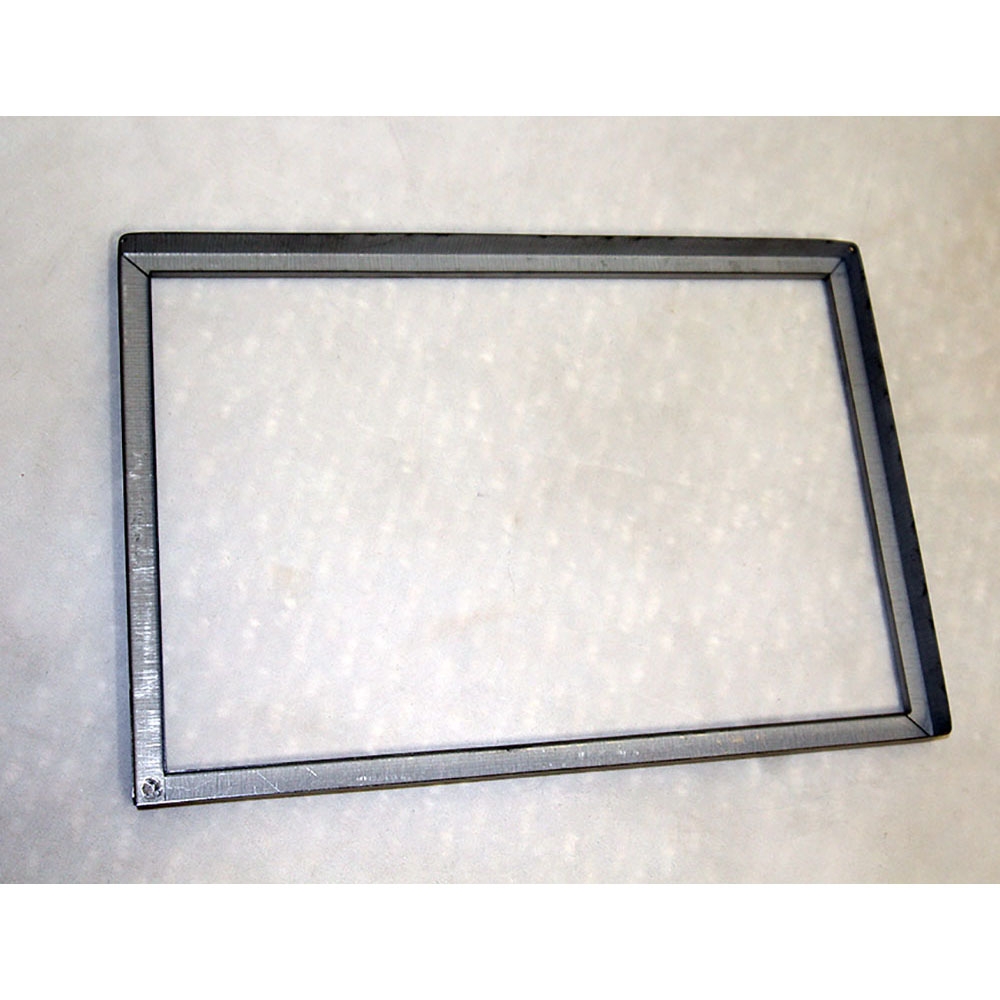

Osburn Part Gasket Frame

The gasket frame is the metal frame component that retains the door glass and its surrounding glass gasket within the door frame structure of the Osburn 1050 stove door. It holds the door glass securely in position against the door frame and maintains the airtight seal around the glass viewing panel during stove operation. The gasket frame works together with the glass retainer PL03132-1G as a two-piece door glass retention system that prevents the glass and gasket from shifting or loosening during the repeated thermal cycling and door operation cycles of normal stove use.

The gasket frame should be replaced when it has become warped or deformed from repeated thermal cycling to the point where it no longer holds the door glass and gasket flat and secure in the door frame, when corrosion has structurally weakened the frame, or when the frame has been physically damaged during servicing or glass replacement. A damaged or deformed gasket frame that no longer provides a secure retention surface for the glass and gasket will allow the glass gasket seal to deteriorate, compromising the airtight integrity of the door assembly and reducing combustion control performance.

The PL03132G gasket frame works with the PL03132-1G glass retainer, which is the companion piece in the two-part door glass retention system on the Osburn 1050 door assembly. The door glass itself is the SE07923 glass measuring 9 inches by 13 inches, and the OA11400 silicone and gasket kit provides the door gasket material required to seal around the glass within the frame. The condition of all door glass assembly components — the glass, the glass gasket, the gasket frame, and the glass retainer — should be inspected whenever any individual component is being serviced or replaced.

The airtight door assembly seal — including the seal around the door glass — is essential to the Osburn 1050's ability to control primary combustion air intake through the stove's air control system. When the door glass gasket seal is compromised, uncontrolled air infiltrates the firebox through the gap between the glass and the door frame, bypassing the primary air intake and disrupting the stove's combustion air management. This results in reduced control over burn rate, degraded combustion efficiency, and increased emissions, and may cause the stove to operate in a manner inconsistent with its certified design parameters.

All door glass assembly service must be performed only when the stove is fully cooled to ambient temperature. The door assembly and all surrounding components retain heat for an extended period after operation, and contact with heated components poses a severe burn hazard. The gasket channel in the door frame must be thoroughly cleaned of all old gasket material before the new gasket frame is fitted to ensure a proper glass and gasket seal. The door glass must be handled carefully during removal and reinstallation as ceramic glass is susceptible to cracking under mechanical shock or impact even at ambient temperature. All work must follow the Osburn 1050 owner's manual door glass assembly instructions.

Visible brown streaks appearing from the edges of the door glass during stove operation are a reliable indicator that the glass gasket seal has deteriorated and is allowing combustion gases to escape around the glass edge rather than through the flue system. Additional indicators include a visible gap between the glass edge and the gasket channel, gasket material that has become frayed, compressed, or fragmented, and a door assembly that no longer provides consistent draft control at low air control settings. The glass gasket should be inspected at the start of each heating season and replaced whenever deterioration is observed.
