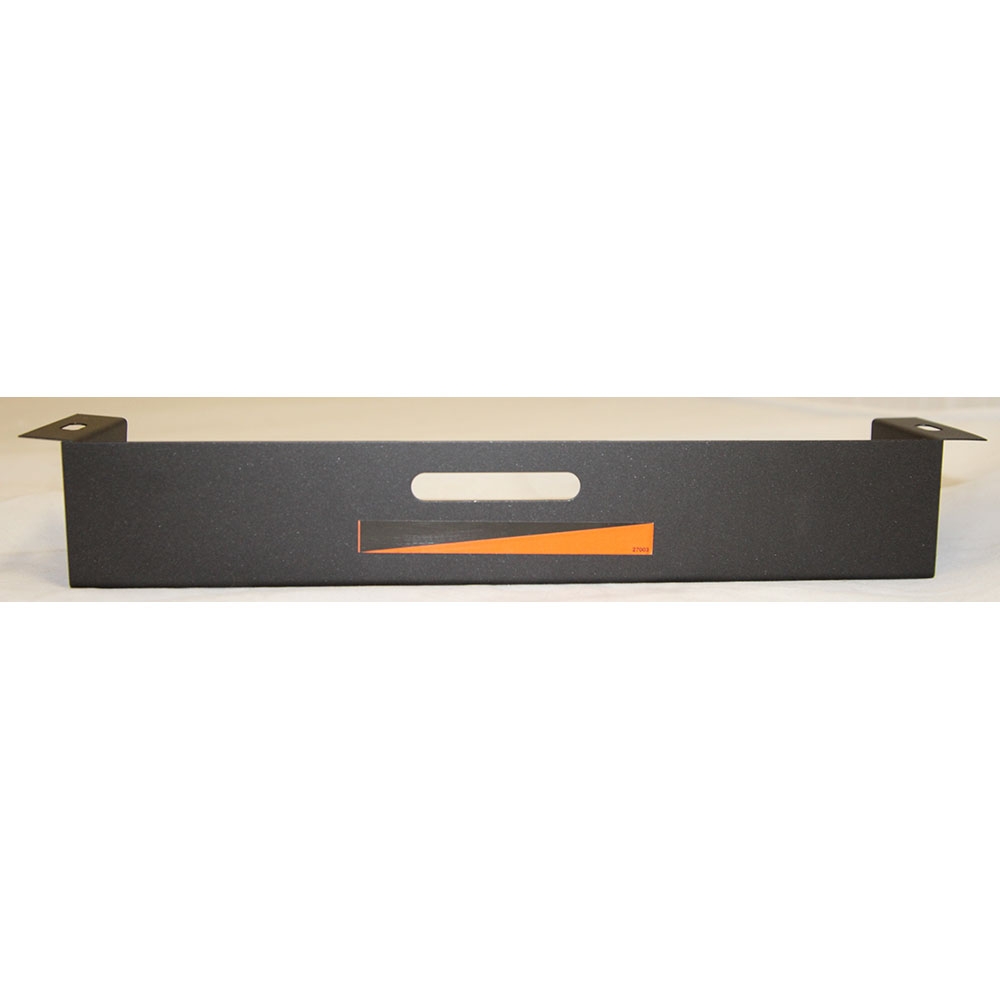

PL34027 Osburn Part Air Control Panel, 1600 Zoom

Osburn Part Air Control Panel, 1600

PL34027

Status: In Stock

US$6.27

Description

Description

The Osburn Air Control Panel, part number PL34027, is a replacement air control cover panel for the Osburn 1600 wood stove. The air control panel is the exterior cover component that conceals the air control assembly on the stove body, providing a finished appearance over the air control rod and air control plate mechanism while allowing the air control handle to protrude through the panel for operator access.

The panel is listed at position 16 in the Osburn 1600 parts diagram across the full range of 1600 series model variants and is specified at two units per appliance, with each panel covering one of the air control assembly positions on the stove body.

The air control panel on the Osburn 1600 wood stove provides the decorative and protective cover over the primary air intake control assembly, giving the air control mechanism a clean exterior finish that integrates with the stove body's overall appearance. It interfaces directly with the air control handle and the air control rod assembly SE34024, which passes through or behind the panel to connect to the air control plate SE34021 at the firebox primary air intake.

The panel is subject to sustained high-temperature exposure and thermal cycling throughout the life of the stove, and may require replacement when it becomes physically damaged, warped, or visually degraded to the point where it no longer provides an acceptable finished appearance over the air control assembly. The PL34027 panel is listed across all Osburn 1600 series model variants including OB01610, OB01613, OB01615, and OB01635.

What's Included: One Osburn PL34027 air control panel for the Osburn 1600 series wood stove. Two panels are specified per appliance — panels are sold individually.

Installation Limits: All air control assembly service must be performed only when the stove is fully cooled. All installation must follow the Osburn 1600 owner's manual instructions for air control assembly components.

Compatibility: Compatible with Osburn 1600 series wood stove models OB01610, OB01613, OB01615, and OB01635.

Features

Features

  • Replacement air control panel for the Osburn 1600 series wood stove, providing the exterior cover over the air control assembly on the stove body
  • Conceals the air control rod and air control plate mechanism while allowing the air control handle to protrude through for operator access
  • Two panels are specified per Osburn 1600 appliance — the PL34027 is sold individually
  • Listed in the Osburn 1600 parts diagram across all model variants including OB01610, OB01613, OB01615, and OB01635
  • Interfaces with the air control handle, air control rod assembly SE34024, and air control plate SE34021 within the primary air intake control assembly
  • All replacement must be performed only when the stove is fully cooled and in accordance with the Osburn 1600 owner's manual instructions

Specifications

Specifications

Part Number: PL34027
Brand: Osburn
Part Type: Air Control Panel
Function: Exterior Cover for Air Control Assembly on Stove Body
Quantity Per Appliance: 2 — Sold Individually
Compatible Model Series: Osburn 1600 Series Wood Stove
Compatible Model Numbers: OB01610, OB01613, OB01615, OB01635
Replacement Type: OEM Direct Replacement



The Osburn PL34027 Air Control Panel is an OEM replacement air control cover panel for the Osburn 1600 series wood stove, providing the exterior finished cover over the primary air intake control assembly on the stove body across all 1600 series model variants. Two panels are specified per appliance and are sold individually.



Support

Support


Product FAQ

What is the function of the air control panel on the Osburn 1600 wood stove?

The air control panel is the exterior cover that conceals the air control assembly — comprising the air control rod and air control plate — on the stove body, providing a clean and finished appearance over the mechanism while allowing the air control handle to protrude through the panel for operator access. It integrates the air control assembly into the stove body's overall visual appearance and protects the mechanism from external contact. Two air control panels are specified per Osburn 1600 appliance, with each panel covering one of the air control assembly positions on the stove.

How many PL34027 air control panels does the Osburn 1600 require?

The Osburn 1600 wood stove specifies two PL34027 air control panels per appliance. The panels are sold individually, so owners requiring both panels for a full replacement must order two units. The Osburn manufacturer's parts list confirms the two-per-appliance specification for the PL34027 across the 1600 series model variants.

Which Osburn 1600 model variants is the PL34027 air control panel compatible with?

The PL34027 air control panel is listed in the parts diagram for all Osburn 1600 series wood stove model variants including the OB01610 black finish model, the OB01613 updated model, the OB01615 gold finish model, and the OB01635 nickel finish model. The parts diagram serial number range for the specific model variant being serviced should be consulted to confirm applicability to the production serial number of the appliance before ordering.

What other air control assembly components interface with the PL34027 panel on the Osburn 1600?

The PL34027 air control panel is part of the air control assembly system that also includes the SE34024 air control rod assembly, which is the mechanical linkage connecting the exterior air control handle to the air control plate, and the SE34021 air control plate, which opens and closes the primary air intake at the firebox. The AC07866 1/4-inch black coil handle provides the exterior grip point for operating the air control mechanism. The condition of all components in the air control assembly should be inspected whenever any individual component is being serviced or replaced.

When should the air control panel on the Osburn 1600 be replaced?

The air control panel should be replaced when it has become physically damaged, warped, or cracked to the point where it no longer provides an acceptable finished cover over the air control assembly on the stove body, when it has been damaged during servicing of the air control assembly, or when its visual condition is sufficiently degraded that replacement is warranted as part of a broader stove maintenance or restoration effort. The panel should be inspected as part of routine annual stove inspection to identify deteriorating components before they require urgent replacement during the heating season.

What precautions must be taken when replacing the air control panel on the Osburn 1600?

All air control assembly service including panel replacement must be performed only when the stove is fully cooled to ambient temperature. The stove body and all external components including the air control assembly area retain heat for an extended period after the stove has been in operation, and contact with heated components poses a burn hazard. After replacement, the air control handle should be operated through its full range of movement to confirm that the panel is correctly positioned and does not obstruct handle operation before the stove is returned to service.
