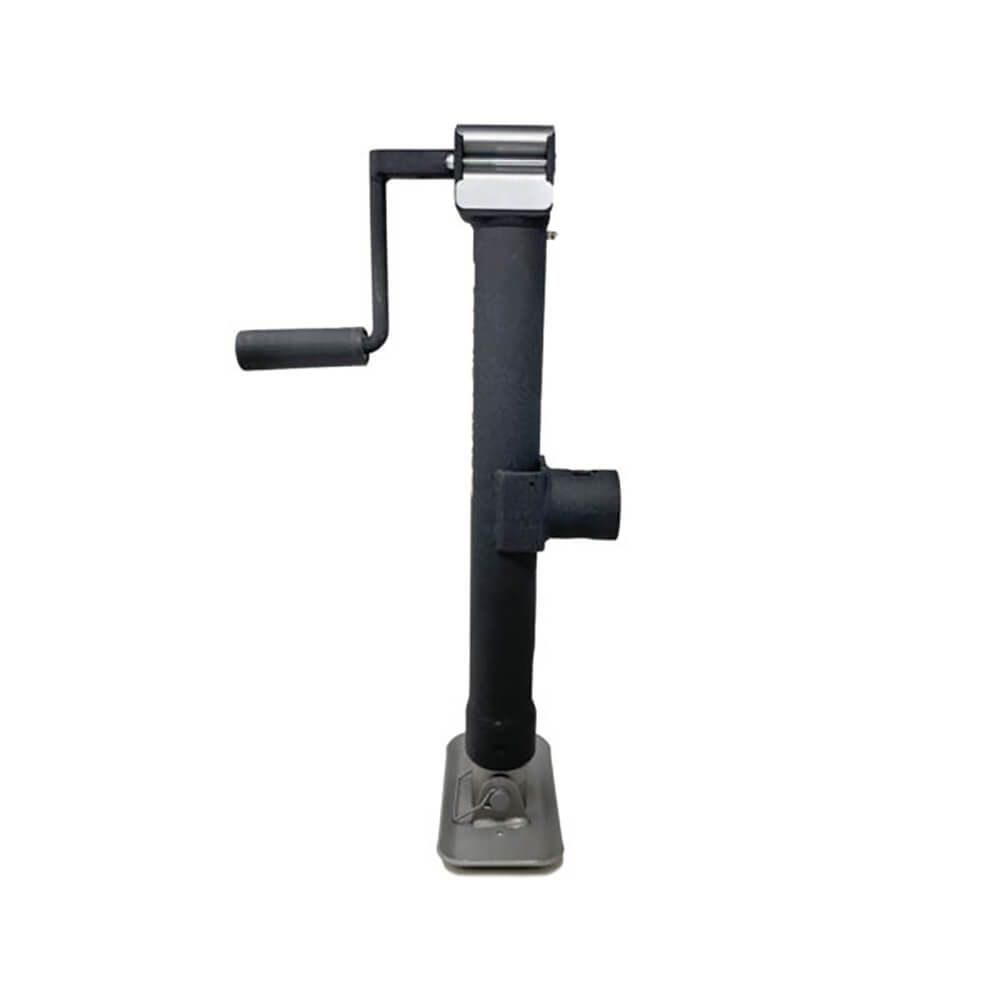

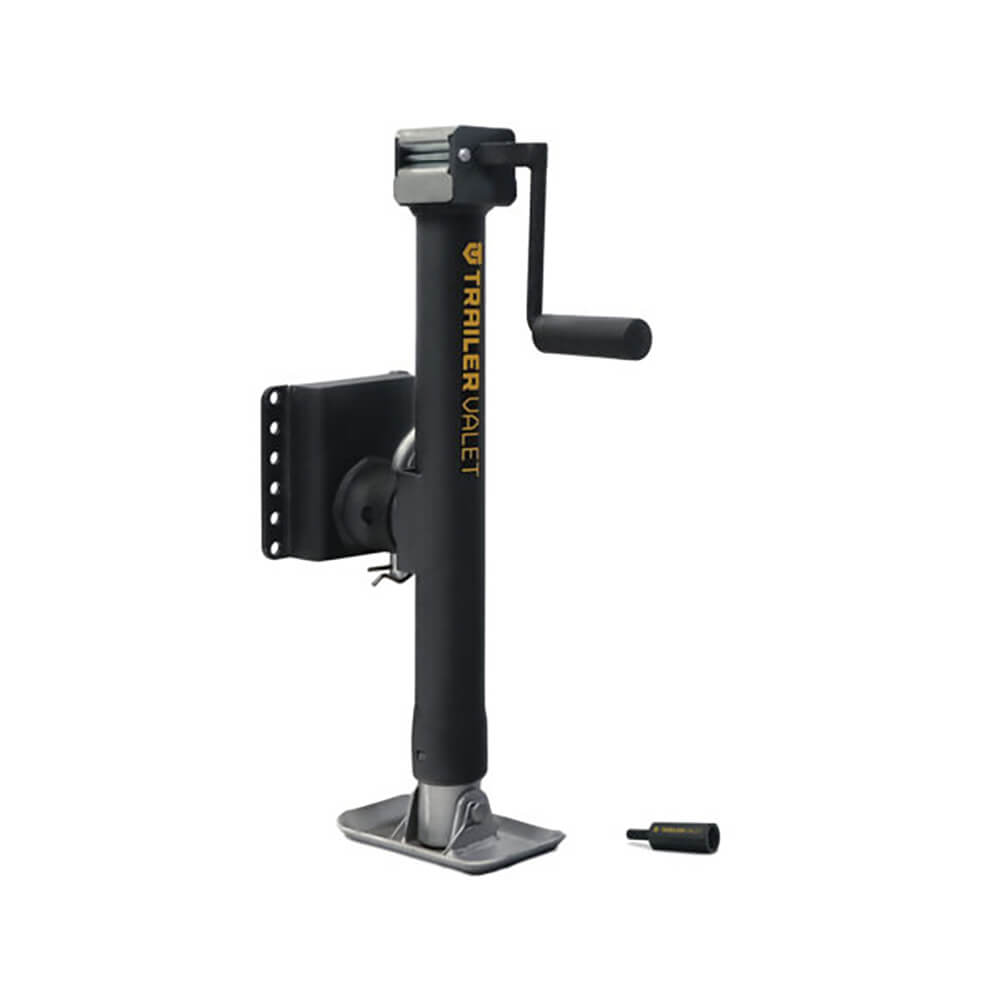

Trailer Valet JX 5K Side Mount Jack Zoom

Trailer Valet JX 5K Side Mount Jack

TVJX5-S

Status: In Stock

US$171.00

Description

Description

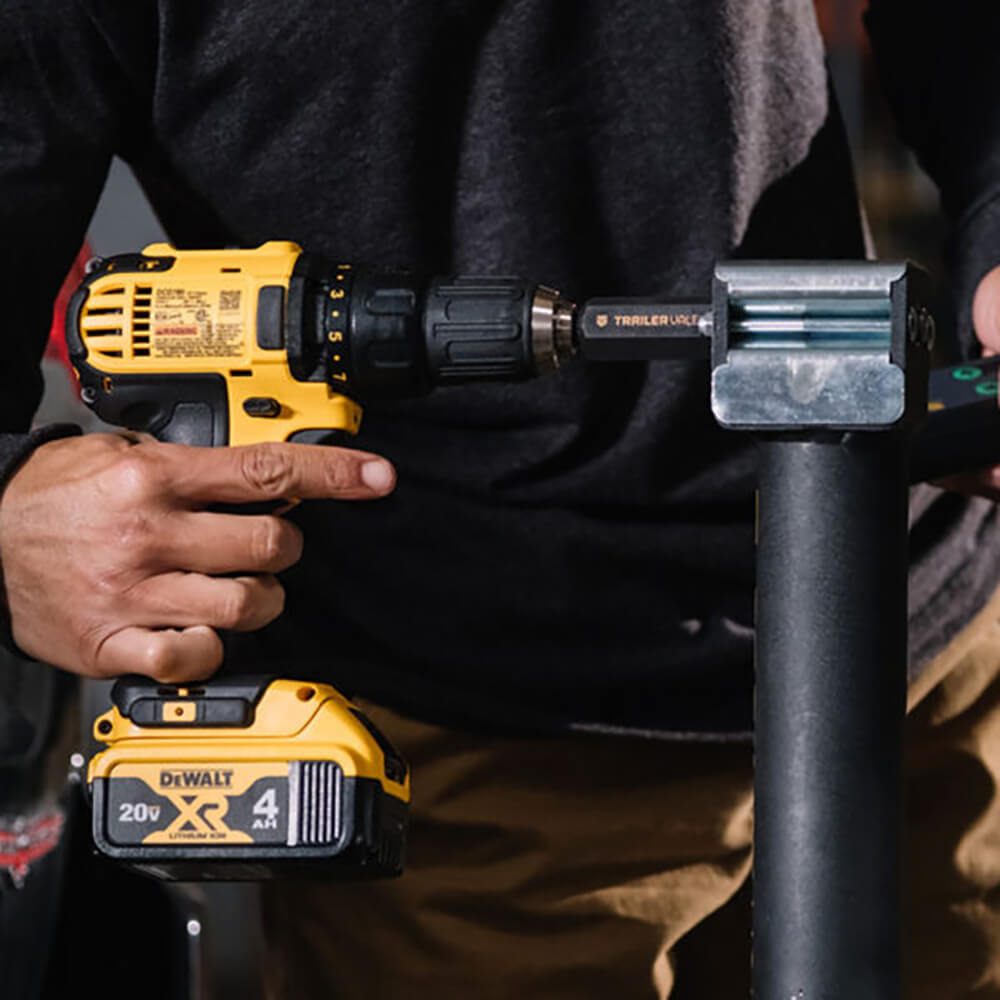

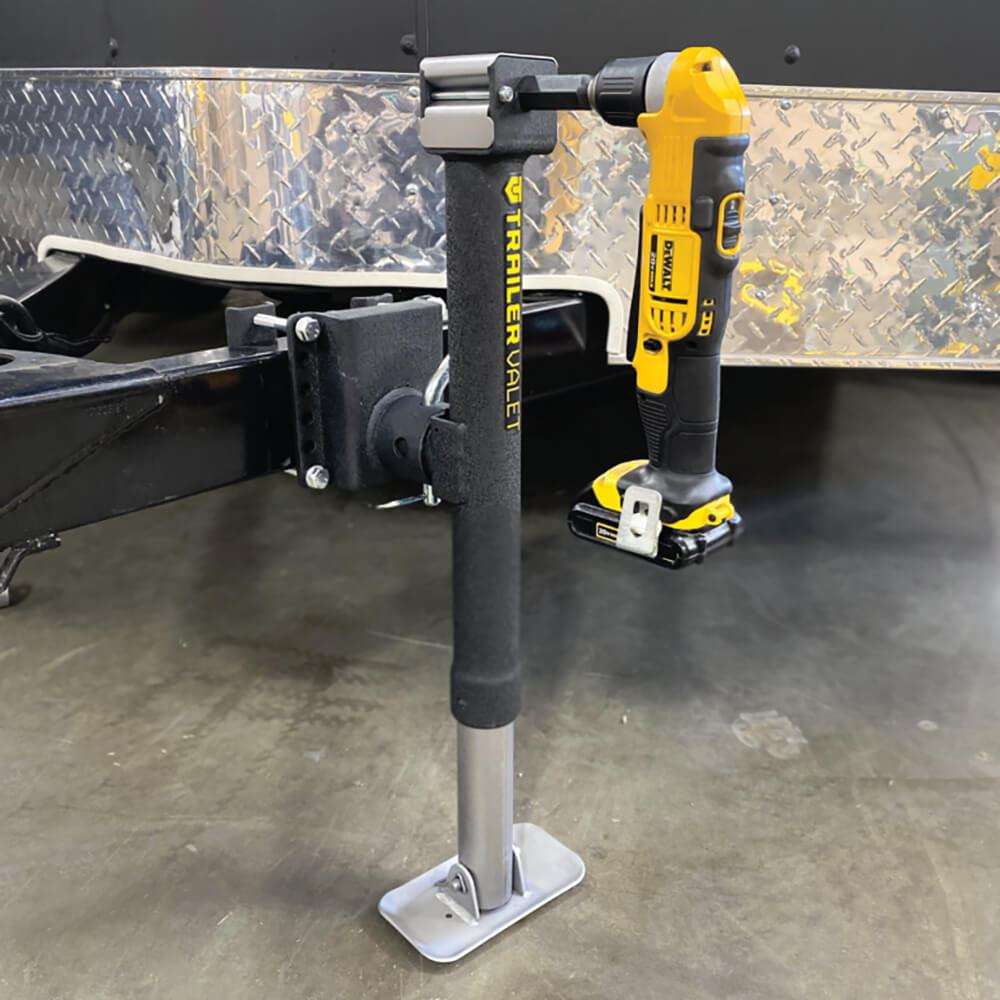

The Trailer Valet JX 5K Side is a manual hand-crank jack that can be operated by any 18-24V compact drill when equipped with the Trailer Valet Drill Attachment. It features a 5,000-pound lifting capacity, and its proprietary gear material composition provides maximum efficiency while minimizing heat retention. We've incorporated a sleeve to offer the highest level of protection while maintaining a smooth glide every time. The JX 5K Side is equipped with a pipe mount bracket, weather-resistant shield protection, and our characteristic wrinkle black powder finish, allowing you to travel further and for longer. It's time to change the regular jack on your trailer, MOVE FORWARD! Save time, effort, and frustration, and get to what you enjoy most.

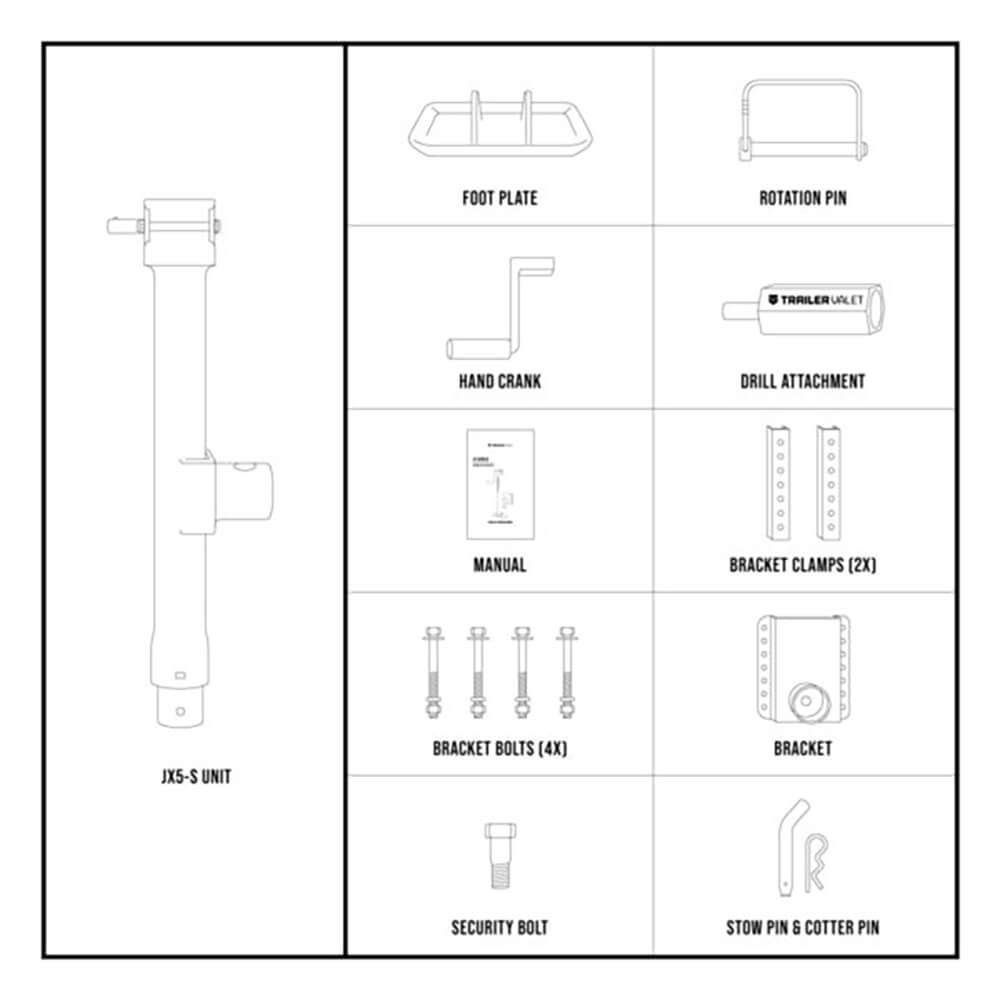

Comes standard with foot plate and Trailer Valet Drill Attachment; Optional Wheel Attachment available.

Features

Features

JXC/JXS FAQ

How do you recommend propping up the trailer for installation?

A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16-18” of height to properly install the JX.

Can the center jack (JXC) be welded rather than bolted?

Yes, at your discretion.

Do I need to grease the gears before use?

No, the JX will come already lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual.

What is the load capacity of the JX?

JXC (Center Mount Jacks): 3K lift capacity and 5K static capacity

JXS (Side Mount Jacks): 2K lift capacity and 2K static capacity

What is the recommended drill torque setting?

We recommend keeping the torque setting as low as possible while still lifting the trailer. A heavier load will require a higher torque setting.

Does the JX come with a caster wheel?

Each JX comes standard with a foot plate. Caster wheels will be released mid-December and will be sold separately.

Does the JX Center Mount come with bolts for installation?

Yes. All JX Center jacks include three bolts and lock washers for installation to your trailer frame.

What type of Mount Bracket comes with the JX2-S and JX5-S?

The JX2-S comes with a smaller bracket that can be mounted on a 4” frame and needs 6” of clearance to install. The JX5-S comes with a larger bracket that can be mounted on a 7” frame and needs at least 8” of clearance to install.

What is the best position for the JX5-S Mount Bracket to be installed?

The connection point should be in the low position (recommended). However, it can be flipped to the high position if needed.

How much does the JX weigh?

JX2-S: 23 lbs

JX5-S: 25 lbs

JX2-C: 14 lbs

JX5-C: 14 lbs

Can the JX be submerged in water?

The JX can be submerged in water for brief periods. However, we highly recommend rinsing the JX with fresh water after heavy salt water exposure.

Can the JX be stored outdoors?

Yes, the JX has three layers of weather protection and can be stored outdoors with your trailer.

What kind of drill should I use with the JX?

Any 18-24V compact non-impact drill can be used with the Trailer Valet Drill Attachment. We recommend the DeWalt brand

Specifications

Specifications

Static Capacity: 5,000 lbs
Lift Capacity (Manual): 5,000 lbs
Lift Capacity (w/ Drill): 1,250 lbs
Installation: Requires 8 in of clearance
Retracted Height: 23 in
Extended Height: 37 in
Total Extension: 14 in
Trailer Lift: 9.5 in to 23.5 in
Outer Tube Diameter: 57 mm
Inner Tube Diameter: 51 mm
Clearance (bottom of bracket to top): 14 in
Clearance (mount point to top of jack): 11.5 in
Max Frame Size Fit: 4.75 in high, 3.75 in deep

Support

Support

Manuals: Operation and Installation

Owner Manual


People Also Ask:

Q. What is the Trailer Valet TVJX5-S JX 5K Side Mount Jack best used for?

A. The Trailer Valet TVJX5-S JX 5K Side Mount Jack is designed to lift, lower, and support trailers with a tongue weight capacity of up to 5,000 pounds. Its side-mount design provides stable trailer positioning for hitching, unhitching, storage, and maintenance. It is ideal for travel trailers, utility trailers, enclosed cargo trailers, horse trailers, and other compatible trailer types.

Q. Who should use the Trailer Valet TVJX5-S Side Mount Jack?

A. The Trailer Valet TVJX5-S is an excellent choice for RV owners, boat owners, utility trailer owners, contractors, equipment rental companies, dealerships, farms, and homeowners who regularly hitch and store trailers. Its heavy-duty design provides dependable lifting and support for everyday trailer use.

Q. What trailers are compatible with the Trailer Valet TVJX5-S?

A. The Trailer Valet TVJX5-S is suitable for many travel trailers, enclosed cargo trailers, utility trailers, equipment trailers, horse trailers, and recreational trailers that fall within the jack's rated tongue weight capacity and mounting requirements. Always verify compatibility with your trailer's frame size and tongue weight before installation.

Q. Does the Trailer Valet TVJX5-S make trailer hitching easier?

A. Yes. The Trailer Valet TVJX5-S provides smooth raising and lowering of the trailer tongue, making it easier to align the coupler with a tow vehicle during hitching and unhitching. Its stable side-mount design also improves convenience when leveling or storing a trailer.

Q. Is the Trailer Valet TVJX5-S easy to install?

A. Yes. The Trailer Valet TVJX5-S is designed for straightforward installation on compatible trailer frames using the manufacturer's recommended mounting hardware and procedures. Once installed, it provides dependable lifting performance for routine trailer operation. Always follow the installation instructions supplied by Trailer Valet.

Q. What is the lifting capacity of the Trailer Valet TVJX5-S?

A. The Trailer Valet TVJX5-S JX Side Mount Jack is rated for up to 5,000 pounds of tongue weight when installed and operated according to the manufacturer's specifications. Always confirm that your trailer's tongue weight falls within the published capacity before use.

Q. What accessories are commonly used with the Trailer Valet TVJX5-S?

A. The Trailer Valet TVJX5-S is commonly paired with Trailer Valet wheel attachments, trailer couplers, hitch locks, wheel chocks, leveling blocks, trailer covers, and towing accessories. These products help improve trailer storage, maneuverability, security, and routine maintenance.

Q. How does the Trailer Valet TVJX5-S compare to a standard trailer jack?

A. The Trailer Valet TVJX5-S offers heavy-duty construction and smooth operation for reliable trailer lifting and support. It is also compatible with optional Trailer Valet wheel attachments that can improve trailer maneuverability on suitable surfaces. This flexibility makes it more versatile than many basic trailer jacks.

Q. Is the Trailer Valet TVJX5-S a good choice for rural properties and outdoor trailer storage?

A. Yes. The Trailer Valet TVJX5-S is well suited for farms, acreages, cabins, rural homes, equipment yards, and seasonal properties where trailers are frequently connected, disconnected, and stored. Its durable construction provides dependable support for trailers in demanding outdoor environments.

Q. Why buy the Trailer Valet TVJX5-S JX 5K Side Mount Jack from Rural Energy?

A. Rural Energy offers the Trailer Valet TVJX5-S as part of its trailer handling and towing equipment selection for customers who need dependable trailer support solutions. Customers can also source compatible trailer accessories, towing products, and outdoor equipment from a supplier experienced in serving rural and remote communities. That support helps customers safely manage trailers while helping people Live Life Warm.
