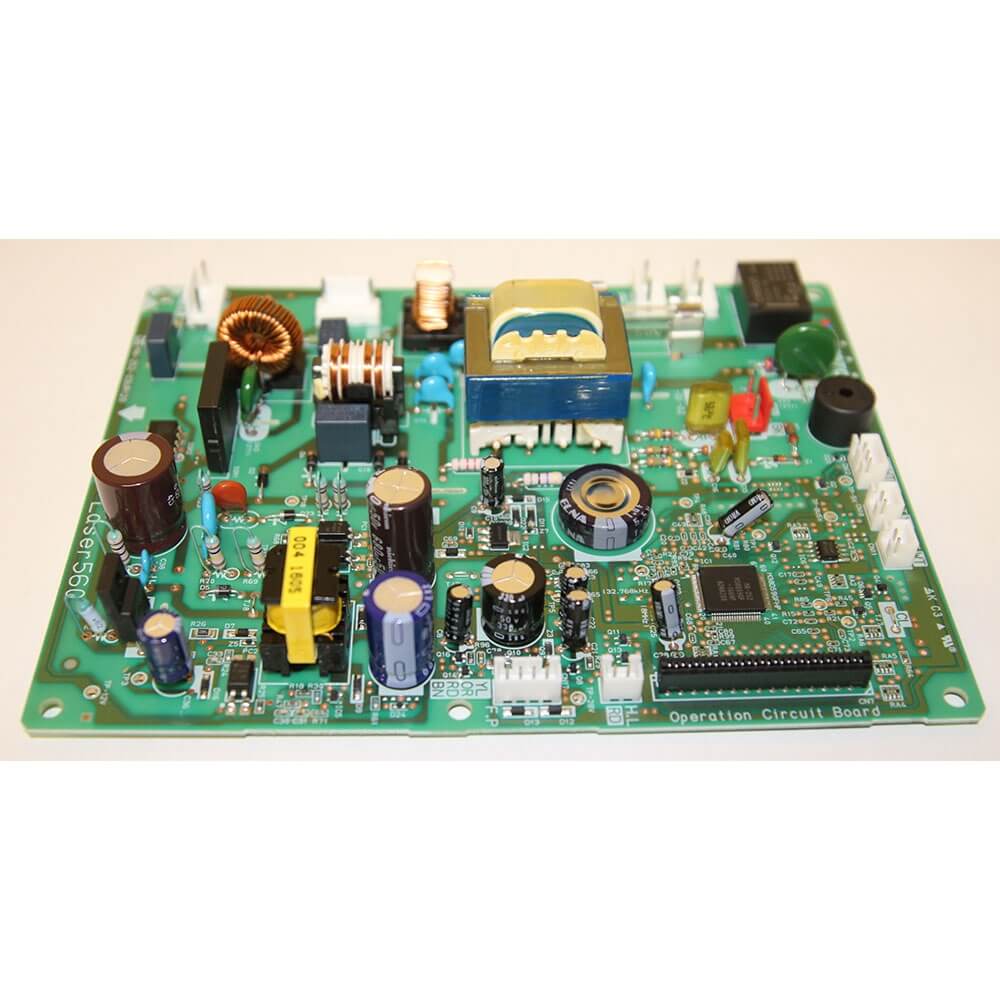

20470412 Circuit Main Board, L560 Zoom

Toyotomi Main Circuit Board

20470412

Models: Laser 560 (Type A)

Status: In Stock

US$186.99

Description

Description

The Toyotomi Circuit Main Board, part number 20470412, is a genuine electronic control board designed for the Toyotomi L560 oil heater, managing core operational functions, safety monitoring, and communication between heater components.

What’s included: One (1) main circuit control board.

Installation limits: Install only on a powered-down, unplugged, and fully cooled heater; intended as a direct replacement performed according to manufacturer service procedures.

Compatibility: Designed specifically for the Toyotomi L560 oil heater.

Features

Features

  • Genuine Toyotomi replacement main circuit board
  • Controls heater operation and system logic
  • Manages safety monitoring and component communication
  • Direct-fit electronic board matched to factory specifications
  • Used during control system repair or replacement

Specifications

Specifications

Product Type: Main circuit control board
Brand: Toyotomi
Manufacturer Part Number: 20470412
Application: Electronic control system for oil-fired heaters
Function: Controls heater operation and safety logic
Compatible Models: Toyotomi L560



This circuit board supports reliable heater control and safe operation.



Support

Support


Product FAQ

Q. What is Toyotomi part 20470412 used for?

A. It is the main circuit board that controls operation and safety functions on the Toyotomi L560 oil heater.

Q. Which heater model is this circuit board compatible with?

A. This main board is designed specifically for the Toyotomi L560 oil heater.

Q. Is this an original Toyotomi replacement part?

A. Yes, part number 20470412 is a genuine Toyotomi factory replacement circuit board.

Q. What issues might indicate the main circuit board needs replacement?

A. Replacement may be required if the heater fails to power on, operate correctly, or displays persistent control-related errors.

Q. Where is the main circuit board located in the heater?

A. It is mounted inside the heater cabinet as part of the electronic control assembly.

Q. What safety steps should be followed before replacing this circuit board?

A. Always shut down the heater, disconnect power, and allow the unit to fully cool before servicing, following manufacturer instructions.
