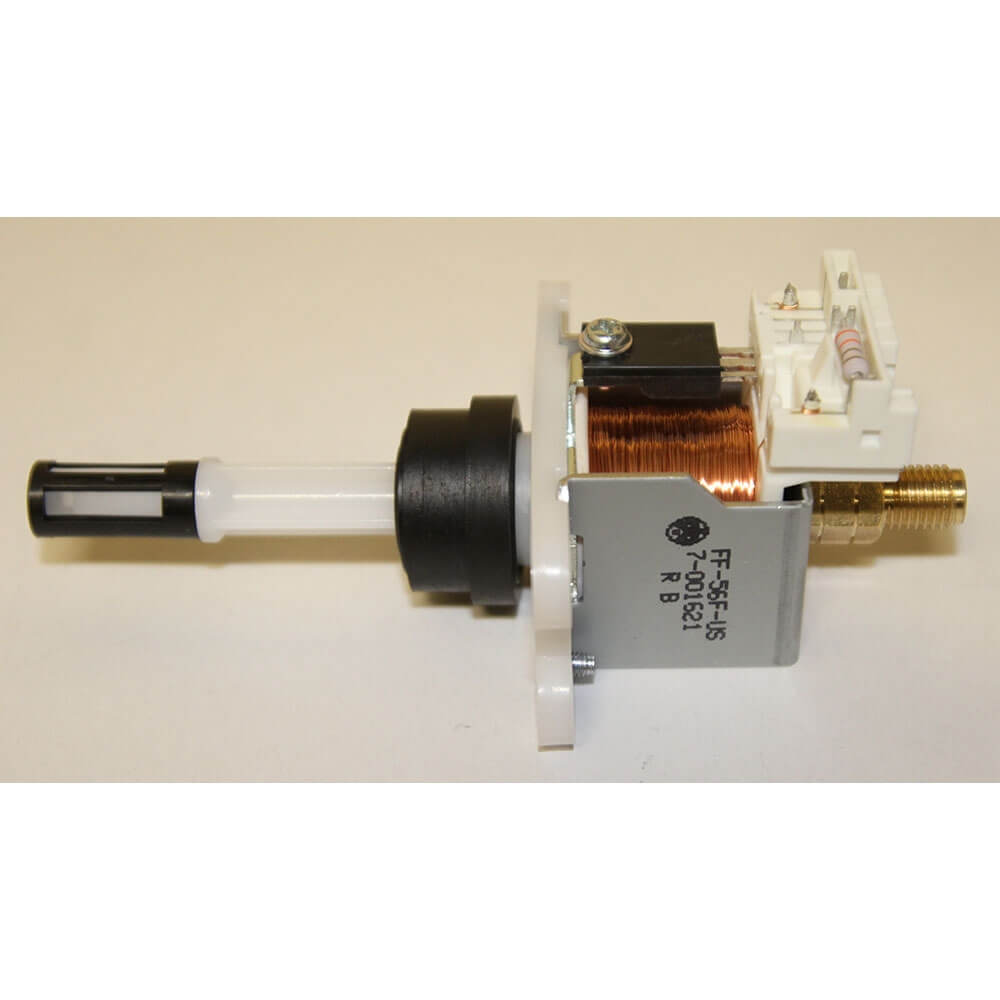

The Toyotomi Fuel Pump L560B, part number 20470519, is a replacement fuel delivery pump designed for use in select Toyotomi Toyostove heaters. It pressurizes and delivers fuel from the tank or supply line to the burner assembly at a consistent flow rate required for proper combustion. This fuel pump is engineered to match original equipment specifications and fits directly in place when replacing a worn, noisy, or failing pump.
This pump is typically used during service when the existing fuel pump shows signs of reduced performance, audible wear, leakage, or inconsistent fuel flow that may affect heater operation. Proper fuel delivery is essential for stable flame formation and efficient heat production; therefore, ensuring the pump is installed correctly and tested per the model’s service instructions is important. Installation should follow the appliance manufacturer’s wiring and fuel system routing guidelines to ensure reliable, leak-free operation.
What’s Included: One (1) Toyotomi fuel pump L560B for compatible heater models.
Installation Limits: For replacement use only on compatible Toyotomi Toyostove heaters; install with the heater powered off and confirm secure mounting and fuel line connections per service documentation.
Compatibility: Compatible with Toyotomi Toyostove models that use the L560B fuel pump configuration as specified in the parts diagram and service manual.
Laser 560, Fuel Pump is located next to Fuel Sump.
