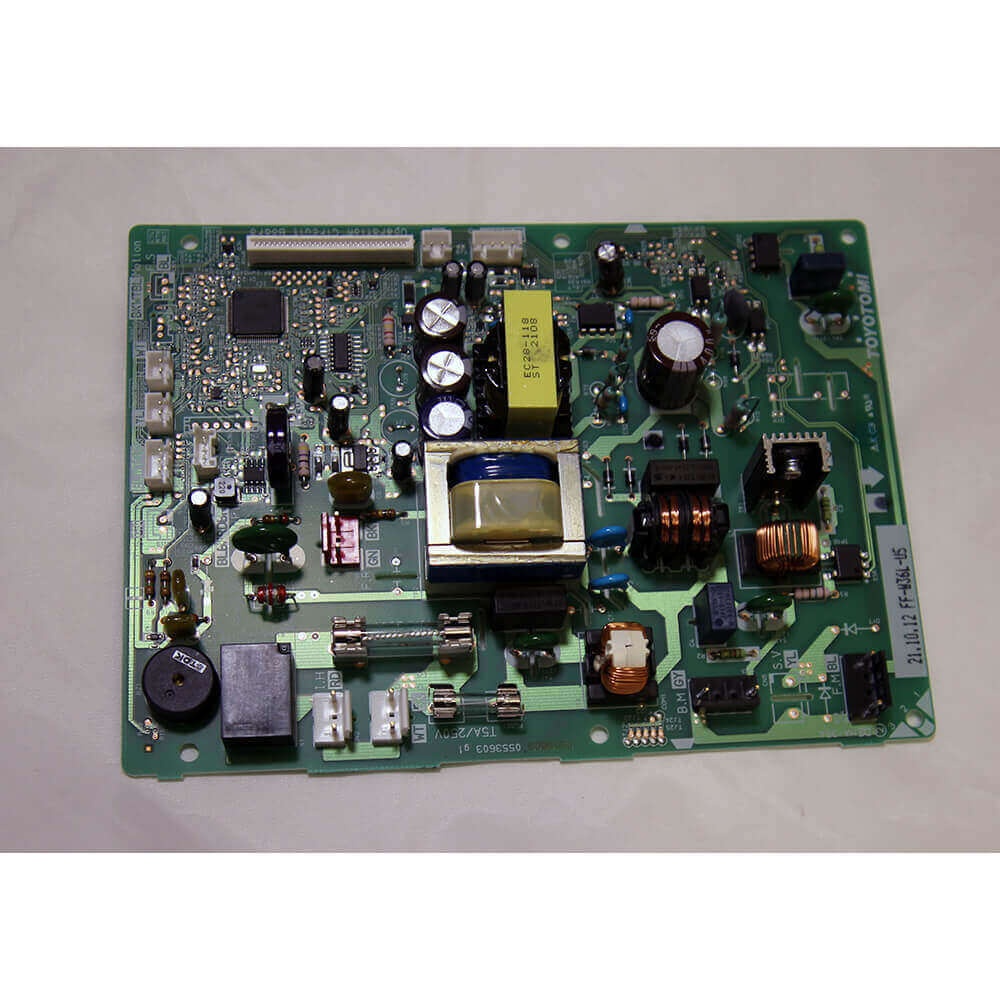

Toyotomi Main Circuit Board 20471112 Zoom

Toyotomi Main Circuit Board

20471112

Models: Laser 301, Laser 302, Laser 531, Laser 532

Status: In Stock

US$234.99

Description

Description

The Toyotomi Circuit Main Board, part number 20471112, is an OEM electronic control board engineered to manage core heater operations, safety logic, and system communication, ensuring reliable startup, controlled combustion cycles, and proper heater functionality across multiple Toyotomi oil heater models.

What’s included: One (1) Toyotomi main circuit board.

Installation limits: Intended for replacement use only during heater service; installation should be performed with electrical power disconnected and in accordance with manufacturer wiring and mounting procedures.

Compatibility: Compatible with Toyotomi L301, L302, L531, and L532 oil heater models using main board part number 20471112.

Features

Features

  • OEM Toyotomi replacement main circuit board
  • Controls heater operation, sequencing, and safety functions
  • Designed to match original electrical and logic specifications
  • Supports proper ignition, combustion control, and shutdown cycles
  • Direct-fit replacement for listed Toyotomi heater models
  • Critical component for reliable electronic heater operation

Specifications

Specifications

Product Type: Main circuit board
Brand: Toyotomi
Manufacturer Part Number: 20471112
Application: Oil heater electronic control system
Function: Manages heater operation, sequencing, and safety controls
Compatible Models: L301, L302, L531, L532



Correct circuit board replacement and precise wiring reconnection are essential for safe heater operation and reliable performance.



Support

Support


Product FAQ

What does the Toyotomi 20471112 circuit board control?

It manages heater operation, safety logic, and system sequencing.

Which heater models use the 20471112 main board?

It is compatible with Toyotomi L301, L302, L531, and L532 oil heaters.

Is the 20471112 an OEM Toyotomi replacement part?

Yes. The 20471112 is an OEM Toyotomi main circuit board.

Can a faulty circuit board prevent heater operation?

Yes. A malfunctioning control board can stop ignition, operation, or normal cycling.

Is this board intended for new heater installations?

No. It is intended as a replacement component for compatible Toyotomi heaters.

Should power be disconnected before replacing the circuit board?

Yes. Electrical power must be disconnected before servicing electronic heater components.
