Eskabe Vent-Air Intake Pipe, DVEL8

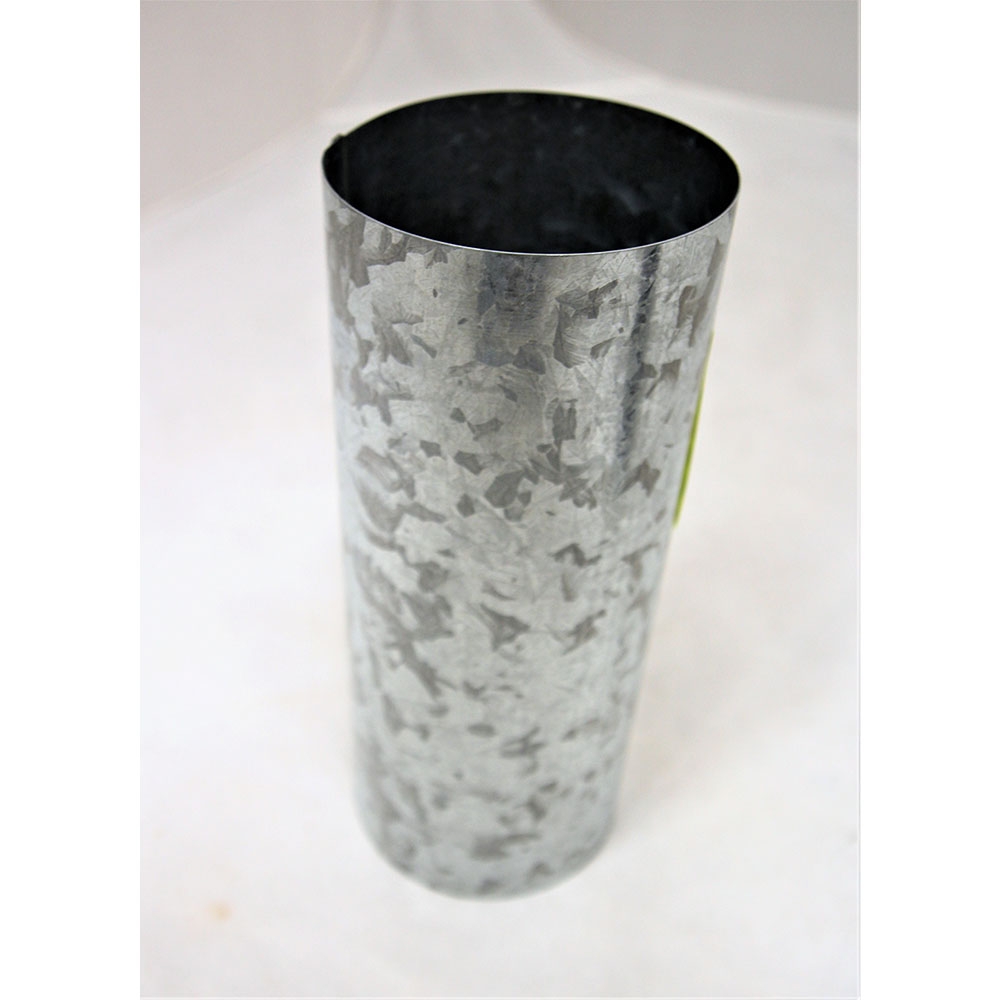

The 5089 Vent-Air Intake Pipe is the outer pipe of the DVEL8 coaxial — dual-wall — vent assembly. In the DVEL8's direct vent system, the inner pipe carries hot exhaust gases from the appliance outward through the wall to the exterior, while the outer 5089 air intake pipe surrounds the inner exhaust pipe and draws cooler outside combustion air inward through the annular space between the two pipes to supply the appliance burner. This coaxial arrangement means both exhaust and combustion air share a single wall penetration, with the two gas streams flowing in opposite directions through the inner and outer pipes simultaneously. The 5089 is the outer structural pipe that contains both the exhaust and the intake flows as the vent assembly passes through the wall, and also protects the inner exhaust pipe from the wall cavity environment.

The 5089 and 5134 are the two pipe components of the DVEL8 coaxial vent assembly — they are different parts serving opposite functions. The 5089 is the outer air intake pipe that draws combustion air from outside into the appliance through the annular space between the outer and inner pipes. The 5134 is the inner vent pipe that carries hot exhaust gases from the appliance burner outward through the center of the assembly to the exterior. Together they form the complete DVEL8 vent assembly. When servicing or replacing vent components, the specific pipe that has failed must be identified — the outer air intake 5089 or the inner exhaust 5134 — and the correct replacement part ordered accordingly. Both parts are genuine Eskabe OEM replacement parts available from Rural Energy.

The DVEL8 direct vent system does not require special insulation or fireproofing at the wall opening because the coaxial design keeps the outer pipe surface cool during operation. The combustion air flowing inward through the annular space between the outer and inner pipes absorbs heat from the inner exhaust pipe, cooling the inner pipe while simultaneously preheating the incoming combustion air. This heat exchange effect keeps the outer pipe surface — which contacts the wall opening — at a temperature that does not require the additional clearance or fire separation materials needed for higher-temperature venting systems. This is one of the practical installation advantages of the DVEL8's direct vent coaxial design compared to conventional single-pipe venting systems.

Yes. The 5089 Vent-Air Intake Pipe is a vent system component that is mechanically the same for both the natural gas DVEL8N and the propane DVEL8L versions of the DVEL8 wall furnace. The vent assembly's function — drawing combustion air inward and exhausting flue gases outward through the wall — is the same regardless of fuel type. The differences between the natural gas and propane DVEL8 models are in the gas valve, orifice, and pressure regulator settings — the vent assembly components are shared across both fuel variants. Confirm against the DVEL8 parts list in the appliance owner's manual or contact Eskabe to verify part fitment for a specific appliance serial number if any uncertainty exists.

The Eskabe DVEL8 direct vent assembly is designed to pass through exterior walls up to 10 inches thick. This accommodates most standard residential exterior wall constructions, including 2-inch by 4-inch framed walls with interior and exterior finishes, 2-inch by 6-inch framed walls with insulation and finishes, and many masonry or concrete block wall constructions within that thickness range. For walls thicker than 10 inches, consult the DVEL8 owner's manual and the Eskabe installation guidance for the appropriate extension or modification to accommodate the greater wall depth. The wall opening must be correctly sized for the vent assembly per the DVEL8 installation instructions — the installation and service must be performed by a qualified installer, service agency, or the gas supplier.

The Eskabe DVEL8 is a serviceable gas appliance with a range of genuine OEM replacement parts available to maintain it in long-term operation. The companion vent pipe — the inner exhaust pipe — is the Eskabe 5134 Vent Pipe. Additional DVEL8 replacement parts available from Rural Energy include components for the gas valve, pilot assembly, piezoelectric ignitor, orifices, gaskets, and other wear items as listed in the DVEL8 owner's manual parts list. When ordering replacement parts, confirm the specific model variant — DVEL8N for natural gas or DVEL8L for propane — as some internal gas train components differ between fuel types. The DVEL8 owner's manual parts list provides the complete part reference for identifying and ordering all serviceable components.
