Eskabe Vent Pipe, DVEL8

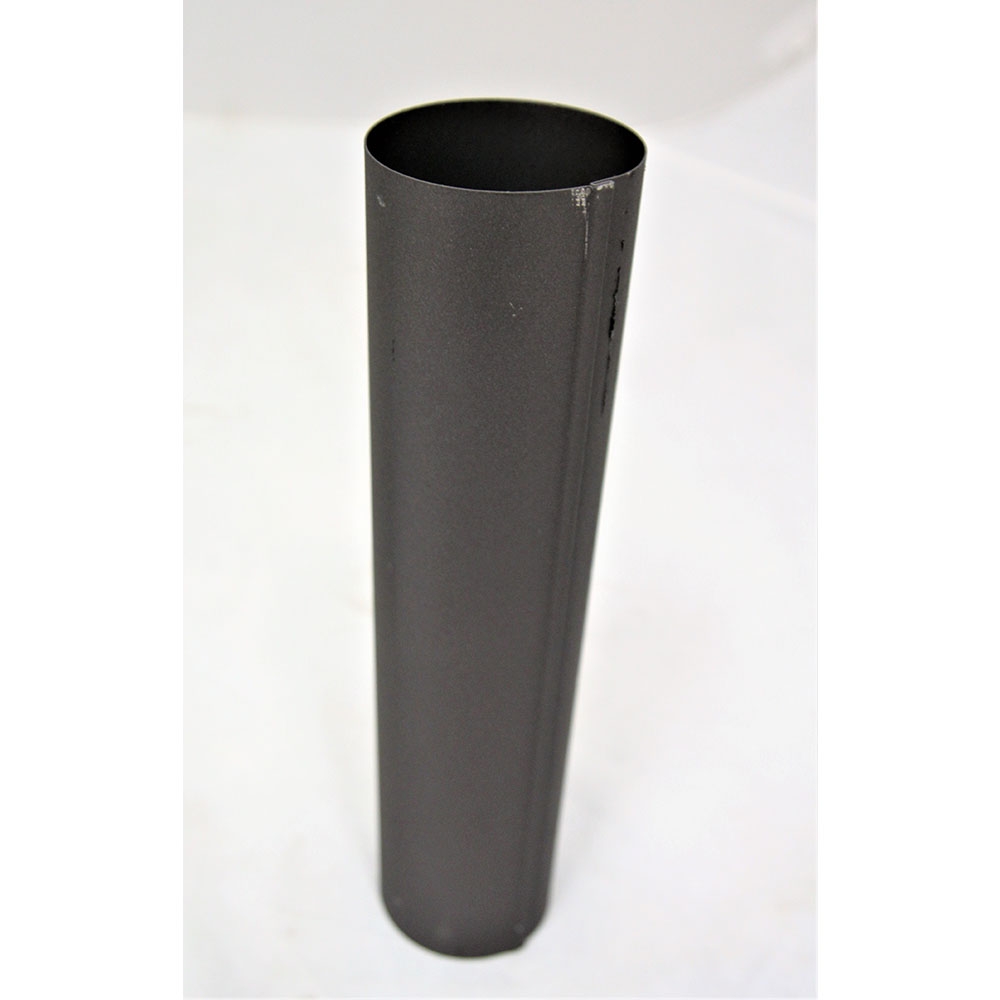

The 5134 Vent Pipe is the inner pipe of the DVEL8 coaxial vent assembly — it is the exhaust pipe that carries hot combustion gases from the DVEL8 burner outward through the wall to the exterior termination. In the coaxial design, the 5134 runs through the center of the assembly, surrounded by the outer 5089 air intake pipe. Flue gases exit the appliance burner, travel through the 5134 toward the exterior, and discharge at the outside face of the wall. Simultaneously, fresh outside combustion air travels inward through the annular space between the 5134 outer surface and the inner surface of the surrounding 5089 pipe, reaching the appliance burner to sustain combustion. The 5134 is the component most directly exposed to heat and combustion gas chemistry, making it a key serviceable component of the vent assembly.

The 5134 and 5089 are the two pipe components of the DVEL8 coaxial vent assembly, serving opposite functions in opposite directions. The 5134 is the inner pipe — it exhausts hot flue gases from the appliance burner outward through the wall to the exterior. The 5089 is the outer pipe — it surrounds the 5134 and draws cooler combustion air inward from the exterior through the annular space between the pipes to supply the burner. The 5134 is typically more susceptible to corrosion and degradation over time because it is in direct contact with hot, acidic combustion gases throughout every operating cycle, while the 5089 carries only incoming ambient air. When servicing the vent assembly, the specific pipe that has failed must be correctly identified before ordering the replacement part.

Indicators that the 5134 inner exhaust pipe may require replacement include visible corrosion, pitting, holes, or physical damage to the pipe body; rust staining or discoloration on the pipe exterior that extends beyond normal surface oxidation; evidence of flue gas leakage into the wall cavity such as soot staining, unusual odors near the appliance, or discoloration of wall surfaces around the vent penetration; and any physical deformation of the pipe that would prevent it from seating correctly in the vent assembly. Any suspected degradation of the exhaust pipe should be inspected and evaluated by a qualified service technician — the DVEL8 installation manual requires that inspection and service be performed by a qualified installer, service agency, or the gas supplier.

Each pipe component can be replaced independently — the 5134 Vent Pipe and the 5089 Vent-Air Intake Pipe are separate OEM replacement parts available individually from Rural Energy. If only one pipe has visibly failed or is damaged, the specific failed component can be replaced without necessarily replacing the other. However, when either pipe is removed for replacement, the service technician has the opportunity to inspect the condition of the remaining pipe at the same time — if both pipes show significant age-related wear or corrosion, replacing both simultaneously during a single service visit is more cost-effective than making a second service visit in the near future for the other pipe. The qualified service technician performing the work should evaluate the condition of both pipes and recommend accordingly.

Yes. The 5134 Vent Pipe is a vent assembly component that is mechanically the same for both the natural gas DVEL8N and the propane DVEL8L versions of the DVEL8. The vent pipe's function — exhausting combustion gases from the burner outward through the wall — is the same regardless of whether the fuel is natural gas or propane, and the vent pipe is not a fuel-specific component. The differences between the DVEL8N and DVEL8L models are in the gas valve, injector orifice, and pressure regulator specifications — not in the vent assembly. Confirm against the DVEL8 parts list in the appliance owner's manual to verify part fitment for a specific appliance serial number if any uncertainty exists.

Rural Energy carries a range of genuine Eskabe OEM replacement parts for the DVEL8 and the broader Eskabe DVEL heater range. The companion outer vent pipe is the Eskabe 5089 Vent-Air Intake Pipe. Additional DVEL8 replacement parts include gas valve components, pilot assemblies, piezoelectric ignitors, injector orifices for both natural gas and propane, gaskets, ignitor wires, and other serviceable components as listed in the DVEL8 owner's manual parts list. The full DVEL8 parts list is contained in the owner's manual covering the DVEL8, DVEL12, and DVEL20 models. Confirming part numbers against the parts list diagram for the specific appliance model and serial number before ordering is recommended to ensure the correct replacement part is selected.
