Osburn Rigid Firescreen 950 Wood Stove

AC01420

Status: In Stock

US$160.00

Description

Description

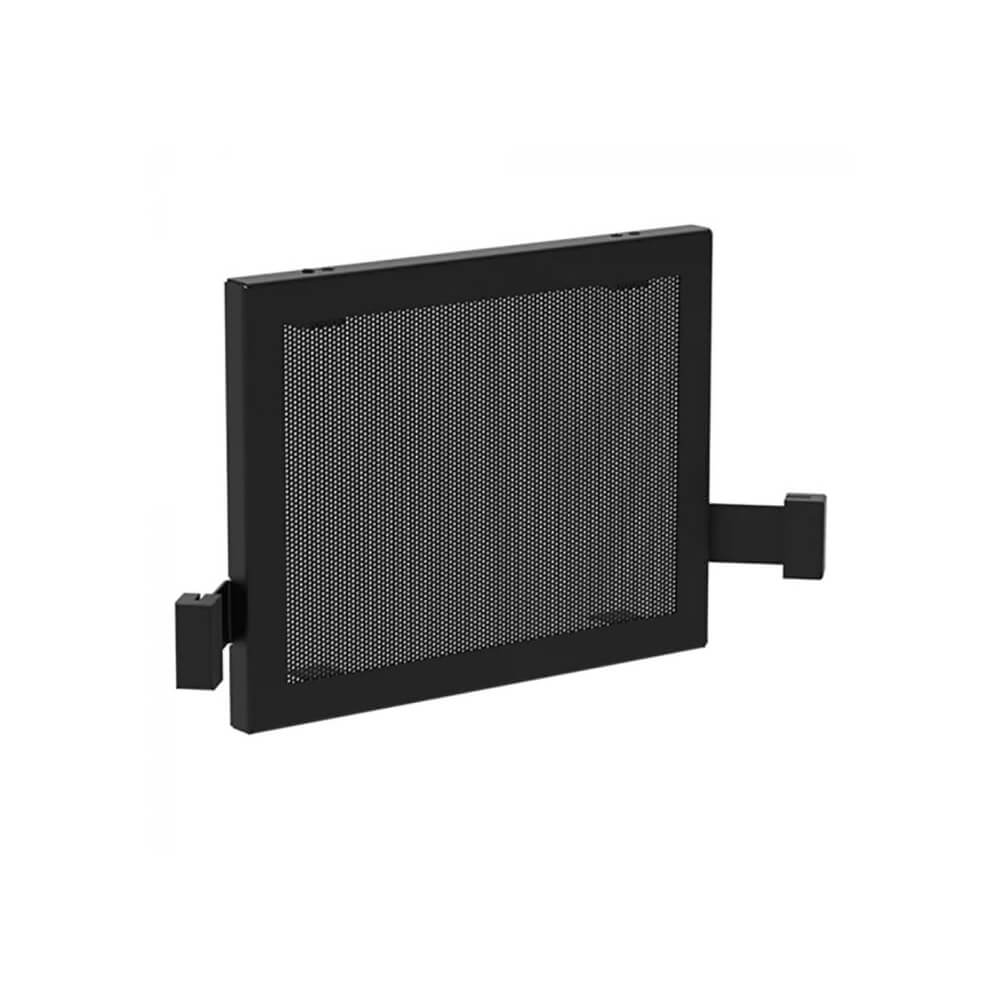

The Osburn Rigid Firescreen, part number AC01420, is a removable rigid fire screen for the Osburn 950 wood stove, designed to allow the stove door to be held open while the fire is burning and provide a protective screen barrier that prevents flying sparks and embers from escaping the firebox into the room.

The AC01420 is listed as the rigid firescreen option on the Osburn 950 wood stove accessories page and is designed exclusively for the Osburn 950. When installed with the door open, the rigid firescreen allows owners to enjoy the open fire ambiance of the burning wood — the sight and sound of the fire — while maintaining the protection of a spark-arresting screen across the firebox opening. The Osburn 950 must not be operated with the door open without the rigid firescreen in place.

The AC01420 is constructed from black carbon steel for long-term durability in the high-temperature environment directly in front of the firebox opening during open-door burning operation. The rigid firescreen is designed for easy installation and removal — it installs when the door is to be held open and is removed when the door is to be closed for normal operation or for reloading.

The Osburn 950 is a compact wood stove with a 1.8 cubic foot firebox accommodating logs up to 17 inches in length, a maximum heat output of 45,000 BTU per hour, and a recommended heating area of 250 to 1,200 square feet. It features high-density firebricks, a stainless steel heat shield integrated into the C-Cast firestop, a top heat deflector, and side panels that reduce clearance requirements, making it suitable for smaller spaces and alcove installations.

What's Included: One Osburn AC01420 rigid firescreen for the Osburn 950 wood stove OB00950.

Installation Limits: The AC01420 is designed exclusively for the Osburn 950 wood stove. The stove must not be operated with the door open without the rigid firescreen correctly installed in the firebox opening. All use must follow the Osburn 950 owner's manual instructions for fire screen use.

Compatibility: Compatible with the Osburn 950 wood stove OB00950.

Features

Features

  • Removable rigid firescreen for the Osburn 950 wood stove, allowing the stove door to be held open while preventing flying sparks and embers from escaping the firebox into the room
  • Allows owners to enjoy open fire ambiance — the sight and sound of the burning fire — with the safety protection of a spark-arresting screen across the firebox opening
  • The Osburn 950 must not be operated with the door open without the rigid firescreen correctly installed in the firebox opening
  • Black carbon steel construction provides long-term durability in the high-temperature environment directly in front of the firebox opening during open-door burning
  • Easy to install and remove — installs when the door is held open and is removed when the door is closed for normal operation or reloading
  • Designed exclusively for the Osburn 950 wood stove OB00950 — all use must follow the Osburn 950 owner's manual fire screen instructions

Specifications

Specifications

Part Number: AC01420
Brand: Osburn
Part Type: Rigid Firescreen
Construction: Black Carbon Steel
Function: Spark and Ember Arresting Screen for Open-Door Burning Operation
Compatible Model: Osburn 950 Wood Stove OB00950
Installation Type: Removable — No Tools Required
Replacement Type: OEM Direct Replacement



The Osburn AC01420 Rigid Firescreen is an OEM black carbon steel removable rigid firescreen for the Osburn 950 wood stove OB00950, providing spark and ember protection during open-door burning operation and allowing owners to enjoy open fire ambiance while maintaining a protective barrier across the firebox opening.



Support

Support


Product FAQ

What is the function of the AC01420 rigid firescreen on the Osburn 950 wood stove?

The AC01420 rigid firescreen allows the Osburn 950 door to be held open while the fire is burning, providing a protective spark-arresting screen barrier across the firebox opening that prevents flying sparks and embers from escaping the firebox into the room. This allows owners to enjoy the open fire experience — the sight and sound of the burning fire — without the risk of sparks or embers landing on the floor surface or surrounding combustibles. The Osburn 950 must not be operated with the door open without the rigid firescreen installed in the firebox opening, as flying sparks and embers from an unscreened open firebox create a significant fire hazard.

Can the Osburn 950 be operated with the door open without the rigid firescreen?

No. The Osburn 950 must not be operated with the door open without the rigid firescreen correctly installed in the firebox opening. Operating a wood stove with the door open and without a protective screen allows sparks and embers produced during combustion to escape the firebox and land on the floor surface, hearth materials, or nearby combustibles, creating a significant fire hazard. The rigid firescreen is the only approved method for operating the Osburn 950 with the door open and must always be in place whenever the door is held open during burning.

When should the rigid firescreen be removed from the Osburn 950?

The rigid firescreen should be removed when the stove door is to be closed for normal closed-door burning operation and when reloading the firebox with additional fuel. The firescreen is a removable accessory that is installed when open-door burning is desired and removed when the door is to be closed. During the reloading process, the firescreen is removed to allow access to the firebox for adding fuel, and is reinstalled if the door is to remain open after reloading, or set aside if the door is to be closed. The firescreen must never be left in the firebox during normal closed-door operation.

What are the key specifications of the Osburn 950 wood stove that the AC01420 is designed for?

The Osburn 950 is a compact wood stove with a 1.8 cubic foot firebox accommodating logs up to 17 inches in length with a maximum burn time of 5 hours. It delivers a maximum heat output of 45,000 BTU per hour with a recommended heating area of 250 to 1,200 square feet. The stove measures 28-7/8 inches high by 20-1/4 inches wide by 27-7/8 inches deep overall, features a single glass door with cast iron frame, and uses a 6-inch chimney connection. High-density bricks, a stainless steel heat shield in the C-Cast firestop, a top heat deflector, and side panels that reduce clearance requirements complete the 950's firebox and installation configuration. The stove is approved for alcove installations and, with a fresh air intake kit, for mobile home installations.

Is the AC01420 rigid firescreen compatible with other Osburn wood stove models?

No. The AC01420 rigid firescreen is designed exclusively for the Osburn 950 wood stove OB00950 and is sized specifically for the 950's firebox opening dimensions. Rigid firescreens for other Osburn wood stove models are available as separate part numbers sized for the respective firebox openings of those models. Using a firescreen from a different model on the Osburn 950, or using the AC01420 on a different stove model, would result in incorrect fit and must not be attempted.

What other optional accessories are available for the Osburn 950 wood stove?

In addition to the AC01420 rigid firescreen, the Osburn 950 wood stove has a range of optional accessories available. The AC02023 blower with thermodisc automatically turns on when the stove reaches operating temperature and off when it cools, improving heat distribution throughout the room. The AC01421 fresh air intake kit for wood stove and the AC01349 5-inch fresh air intake register with airtight damper provide dedicated outside combustion air supply for installations where indoor combustion air is insufficient. The AC02090 5-inch by 4-foot insulated flexible pipe for the fresh air intake kit completes the fresh air intake system installation.
