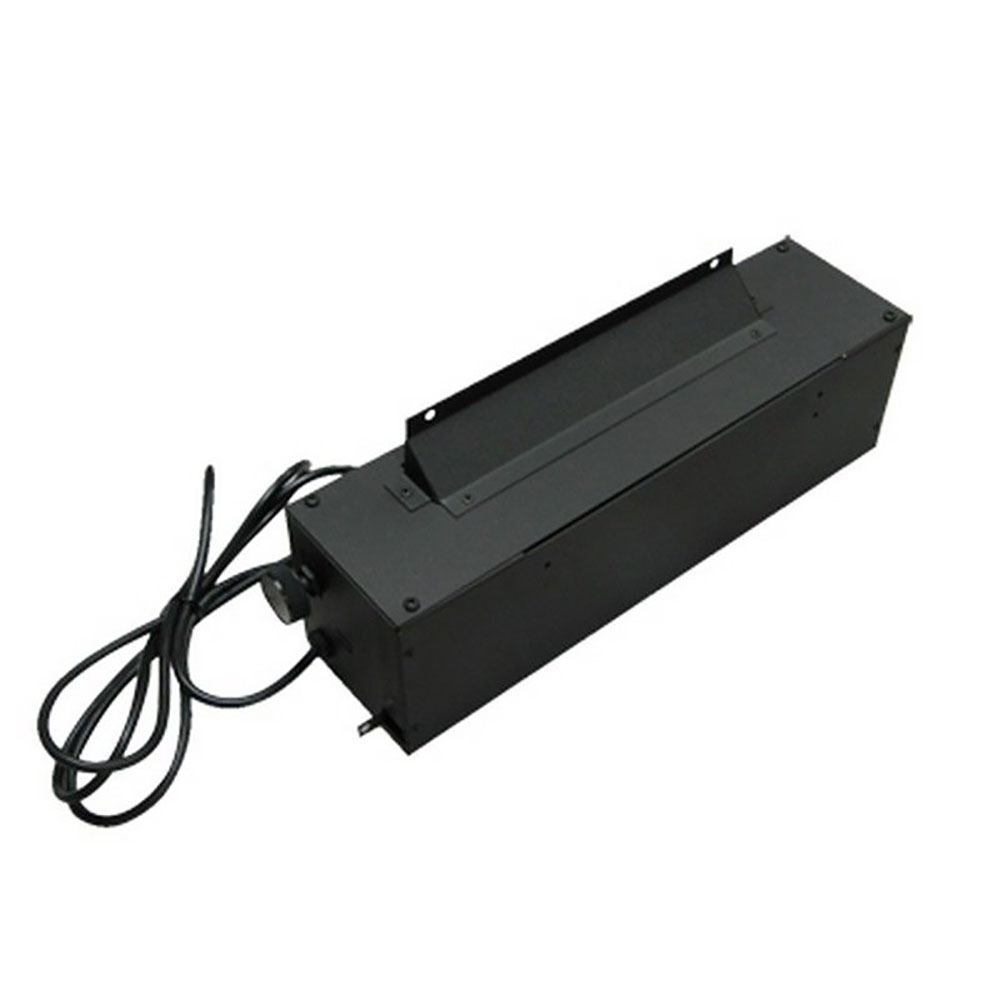

Osburn 130 CFM Blower W/Variable Speed Control Thermodisc

CFM stands for cubic feet per minute — it is the volume of air the blower moves through the stove's heat exchange surfaces per minute at its maximum output setting. At 130 CFM the AC01000 blower draws 130 cubic feet of room air across the heated stove body every minute at full speed, picking up heat from the stove surfaces and returning that warmed air to the room. Higher CFM ratings translate to greater heat transfer rates from the stove body to the room air, reducing the proportion of heat that is radiated directly from the stove surface and increasing the proportion delivered to the room by forced convection. The variable speed control allows the CFM output to be set below the 130 CFM maximum to match the blower speed to occupant preference and stove operating conditions.

The thermodisc is a thermal snap-disc switch that is mounted on the stove body and wired into the blower power circuit. It automatically closes the circuit and starts the blower when the stove body surface temperature rises to the thermodisc's activation threshold during operation, and automatically opens the circuit and stops the blower when the stove body cools back below that threshold after the fire dies down. This prevents the blower from running when the stove is cold — which would otherwise circulate cool air through the room rather than warm air — and ensures the blower starts automatically once the stove is properly warmed up without requiring the owner to manually switch the blower on and off with each fire.

The AC01000 and AC03095 are both 130 CFM variable speed convection blower assemblies from Osburn SBI with thermodisc included, but they are designed for different appliance types and their mounting configurations differ accordingly. The AC01000 is designed for freestanding wood stoves — including the Soho, 1700, 3300, and Gusto — and mounts to the underside or side of a freestanding stove body. The AC03095 is designed specifically for the Inspire 2000 wood insert and Drolet wood stoves, with a mounting configuration suited to the insert housing geometry. The two blowers are not interchangeable — each must be used only with the appliance types for which it is designed and dimensioned.

Compatibility of the AC01000 with a specific Osburn freestanding wood stove must be confirmed against the blower installation section of the owner's manual for that appliance. The owner's manual will specify which blower part number is approved for optional blower installation on the specific stove model. The Osburn manufacturer blower page notes the AC01000 fits many models of freestanding wood stoves — confirmed compatible models include the Soho, 1700, and 3300 wood stoves and the Gusto cookstove. For stove models not listed, the owner's manual is the authoritative reference for confirming blower compatibility before ordering.

Adding the AC01000 blower to a compatible Osburn freestanding wood stove significantly improves the distribution of heat from the stove into the room. Without a blower, a wood stove distributes heat primarily through radiant heat emission and natural convection — warm air rises from the stove surface and circulates slowly through the room. The blower forces this convection process by actively drawing cool room air across the heated stove body and propelling warmed air outward into the room, moving heat more quickly and effectively away from the stove and distributing it through the living space. This reduces heat stratification at ceiling level and increases the usable heating area of the stove, helping the stove heat the room more evenly and efficiently.

The AC02055 quick connect thermodisc kit is available as an additional or replacement thermodisc for compatible blower installations where an automatic thermal activation switch is desired. The AC07835 digital moisture reader supports fuel preparation by confirming firewood moisture content before each burn — properly seasoned firewood maximizes stove output and therefore blower effectiveness. The AC01380 Start Up Kit provides a comprehensive bundle of maintenance consumables including a probe thermometer for monitoring flue temperature during operation. The AC01000 requires a standard electrical outlet for power — the blower plugs into a wall outlet and does not require hard-wiring.
