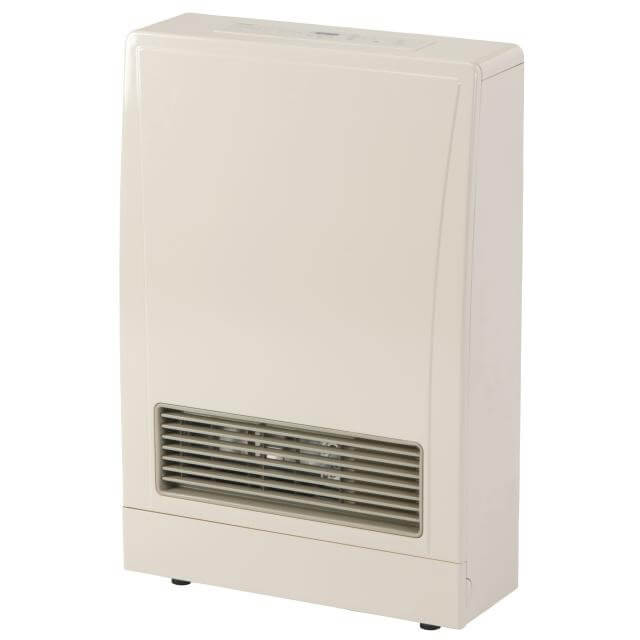

Rinnai Direct Vent Wall Furnace DT 8K Btu NG

EX08DTN

Status: In Stock

was US$2,099.00

now US$1,589.50

Description

Description

Rinnai Direct Vent Wall Furnace DT 8K BTU NG – Efficient Natural Gas Heating

The Rinnai Direct Vent Wall Furnace DT 8K BTU NG (model EX08DTN) is a compact, high-efficiency wall-mounted furnace designed to provide reliable and consistent heating for homes, cabins, garages, and supplemental zones using natural gas. With its direct vent system, this unit draws outside air for combustion and safely expels exhaust outdoors, helping maintain clean indoor air and dependable performance. :contentReference[oaicite:0]{index=0}

Built with advanced modulating technology, the EX08DTN quickly responds to temperature changes to deliver the right amount of heat exactly when needed. Its user-connectable digital thermostat and optional Wi-Fi thermostat compatibility give precise temperature control and easy adjustment, while quiet operation ensures comfort without unnecessary noise. :contentReference[oaicite:1]{index=1}

This direct vent wall furnace fits easily into small spaces and eliminates the need for ductwork, making it ideal for both retrofit installs and new applications. With an input range of 3,000 to 8,000 BTUs, automatic restart capability, self-diagnostic electronics, and multiple safety features, the EX08DTN offers energy efficiency, dependable warmth, and peace of mind for energy-conscious homeowners. :contentReference[oaicite:2]{index=2}

Designed for natural gas operation, the Rinnai EX08DTN is a versatile heating solution for primary or supplemental heating needs in residential and light commercial settings where comfort, efficiency, and space savings matter most. :contentReference[oaicite:3]{index=3}

Features

Features

  • Restart capability: Restarts automatically when ignition or combustion fails.
  • Timer Settings: Starts and turns off the heater at two timer settings.
  • Seven-stage modulating gas valve: Provides precise gas flow by operating from one to seven stages.
  • Negative coefficient thermistor: Detects temperature change in 1/2 of a degree.
  • Variable speed inducer motor with pressure switch: Monitors and controls combustion fan and allows the appliance to overcome winds of up to 40 mph.
  • Self-diagnostic electronics: Continually monitors functions; provides auto shutdown codes; indicates
  • Quiet operation: Reduces noise through use of swept blades in convection fan; quiet expansion/contraction of parts due to temperature changes.
  • Wall Thermostat connectable: Ability to connect to a field-supplied wall thermostat.

Specifications

Specifications

Width: 18 1/4"
Height: 27 3/8"
Depth: 10 1/8"
Weight: 46 lbs.
Approved Gas Types: Natural Gas or Propane
Minimum/Maximum Gas Rate (Input BTUs) Natural Gas: 3,000 - 8,000 BTU
Minimum/Maximum Gas Rate (Input BTUs) Propane: 3,000 - 8,000 BTU
AFUE Rating Natural Gas: 82%
AFUE Rating Propane: 82%
CFM: 55.5 - 82.0
Electrical: AC 120 Volts, 60 Hz, 42 Watts
Noise Level: 27 - 36 dB
Gas Connection: 1/2" FNPT
Temperature Range (Min-Max): 60°F - 80°F in 2° Increments



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQs:

Q. What is the Rinnai EX08DTN wall furnace used for?

A. This wall furnace is used to provide direct-vent space heating for small residential and light commercial spaces using natural gas.

Q. How does the direct-vent system improve safety?

A. The sealed direct-vent system pulls combustion air from outside and vents exhaust gases outdoors, reducing indoor air contamination.

Q. What fuel does the EX08DTN use?

A. The EX08DTN model is designed to operate on natural gas only.

Q. Is professional installation recommended for this wall furnace?

A. Yes. Professional installation is recommended to ensure proper venting, gas connection, and safe operation.
