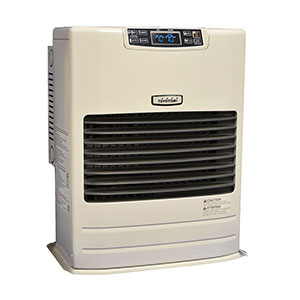

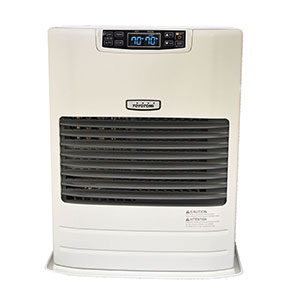

Toyotomi Laser 533 Wi-Fi Model Bluetooth Model

Toyotomi Laser 533 Wi-Fi Model Bluetooth Model

L-533

Heating Area: 750 - 1,150 sq ft

Status: In Stock

US$1,959.00

Qty:

Special Handling Required: Yes

Add To Compare

Description

Introducing the Toyotomi Laser L-533 Direct Vent Oil Heater - the perfect heating solution for your home or office. With its advanced technology and innovative design, this heater delivers efficient and reliable warmth, while also being eco-friendly.

The Laser L-533 features a direct vent design that eliminates the need for a chimney, making installation a breeze. The heater's compact size and contemporary design ensure it will complement any room decor. Additionally, this heater is equipped with an LCD display that provides clear and easy-to-read information, as well as a programmable timer that allows you to customize your heating needs.

The Laser L-533 has an impressive heating capacity of up to 22,000 BTU per hour, ensuring that even the coldest spaces will be warm and cozy. The heater also has an automatic shut-off feature that kicks in if the unit tips over, ensuring your safety.

With its high-efficiency operation and low fuel consumption, the Laser L-533 is both cost-effective and environmentally friendly. Its clean-burning technology reduces emissions and produces less soot, ensuring cleaner air for you and your family.

The new Wi-Fi-compatible Laser L-533 comes from Toyotomi, the leader for over 30 years in direct vent heaters. The Toyotomi Laser L-533 gives your home a central heating system that comes at far less cost. Additionally, the Toyostove Laser L-533 has a best-in-class 87% efficiency rating. This means cost savings without sacrificing heating comfort. With great flexibility, use the Laser L-533 for either a supplemental heating source or as primary heat for basements, garages, and seasonal cottages. It has proven to be not only highly efficient but also safe and reliable.

The Toyotomi Laser L-533 is one of the most fuel-efficient heating solutions on the market today. The special stainless steel heat exchanger carries the highest efficiency code and an 87% efficiency rating, providing more heat for your dollars. The cost to operate a Toyotomi oil heating system is so economical that many owners enjoy annual savings of up to 70% over electric heating, 60% over propane heating, and 40% over traditional oil and natural gas heating systems. The Laser L-533 pays for itself in fuel savings in just a few short years.

If you're looking for an efficient and reliable heating solution for your home or cabin, the Toyotomi Laser L-533 Direct Vent Oil Heater is a perfect choice.

Features

EFFICIENT AND ECONOMICAL
Toyotomi Laser products are the most fuel-efficient, energy-saving, oil* heating systems available.

Uses up to 50% less fuel for heating comparable size areas than conventional oil-fired heating systems at a fraction of the cost
The only oil-fired modulating burner in North America
(increases efficiency)
Pays for itself in fuel savings in just a few short years

COMFORTABLE AND WI-FI COMPATIBLE
The Laser series large circulation fan distributes heat quickly and evenly in order to maintain and optimize maximum comfort.

Automatically regulate between low, medium and high-temperature settings
New Wi-Fi feature allows changing temperature remotely
from an app on your Apple or Android device
Self shut-off when room rises approximately 4° above the desired temperature

CLEAN, SAFE & ODORLESS
Advanced heating pipe-within-a-pipe forced flue venting system creates smokeless, odorless, clean heating.

Lower emissions (up to 50% less CO2) than conventional oil-fired heating systems
Outside pipe brings in outside air for combustion
Inside pipe exhausts all combustion by-products to the outside
Circulating fan distributes heat
Cool-to-the-touch cabinet
Permanent mesh filter protects circulation fan and interior components from dust

EASY INSTALLATION
Owner's manual provides complete, step-by-step instructions that are helpful and easy to understand.

Installation takes about three hours, or less
Vents through a side wall using the direct vent kit which is included with heater
Full range of optional parts and accessories available offers a variety of different installations

FLEXIBLE FUEL OPTIONS
Toyostove Vented Heaters can use the following fuels without any modifications to the unit:

Ultra Low Sulfur Heating Oil (ULSHO)
Ultra Low Sulfur Diesel (ULSD)
#1 Low Sulfur Fuel Oil, or K-1 Kerosene

Check with your local fuel oil dealer for which of these fuels are available in your area.

EXHAUST SYSTEM
The Laser Series flue pipe makes venting to the outside simple and easy. Completely flexible, it adjusts to wall thickness. A small vent cap is all that can be seen from the outside.

SET-BACK
Weekly Timer Operation allows for up to 30 different Set-Back temperatures. The Weekly Timer can be used to change the temperature for different days of the week and several times during the day.

Specifications

Fuel Type:	Ultra Low Sulfur Heating Oil (ULSHO) or Ultra Low Sulfur Diesel Fuel (ULSD) (ASTM D975 S15), Low Sulfur No. 1 Fuel (ASTM D396 S500), or K-1 Kerosene (ASTM D3699)
Heating Efficiency:	87% (AFUE Rating)
Heating Rating:	22,000 BTU/Hr (High) 15,000 BTU/Hr (Medium) 8,000 BTU/Hr (Low)
Fuel Consumption:	0.165 Gal/Hr (High) 0.113 Gal/Hr (Medium) 0.060 Gal/Hr (Low)
Size (WxHxD):	19-5/8" x 23-5/8" x 16-1/2"
Weight:	38 lbs (empty)
Heating Area: *	920 Sq. Ft. at (0°F) 1150 Sq. Ft. at (20°F)
Max. Length of Vent Pipe System:	Maximum 10 Ft., 3 bends or less
Electrical Rating:	120 Volts AC, 60 Hz Preheat: 240 Watts Burning: 40 Wattts
Vent Hole Pipe:	2-3/4" - 3" Diameter
Type of Tank:	Exterior Tank

* 0° F Heat Load = 24 BTU/ft²/hr
20° F Heat Load = 20 BTU/ft²/hr
Room size for which this heater is suitable will vary depending on outside temperature, house insulation, window size and other factors.

Literature

Heating with Oil versus Propane

Toyostove Laser and Oil Miser Vented Heating System Accessories

Toyotomi and Toyostove Registration

Support

Diagrams, Troubleshooting, and Support - Learn More

Q. What is the Toyotomi L-533 Laser 533 Wi-Fi Bluetooth Model best for?

A. The Toyotomi L-533 Laser 533 Wi-Fi Bluetooth Model is designed to provide dependable, energy-efficient heating for medium-sized homes, cabins, workshops, garages, and remote properties. Its direct-vent sealed combustion system delivers clean, comfortable heat while helping reduce fuel consumption. Built for demanding cold-weather environments, it combines modern smart controls with proven Toyotomi reliability.

Q. Who should choose the Toyotomi L-533 Laser Direct Vent Heater?

A. The Toyotomi L-533 is an excellent choice for homeowners, cabin owners, off-grid property owners, contractors, and small commercial facilities looking for efficient oil-fired heating. It is particularly well suited for northern climates where dependable performance, fuel efficiency, and long-term durability are essential. The heater also appeals to customers upgrading older oil heaters with modern electronic controls and remote monitoring.

Q. Can the Toyotomi L-533 efficiently heat a cabin or medium-sized home?

A. Yes. The Toyotomi L-533 is engineered to heat medium-sized living spaces efficiently, with actual coverage depending on insulation, ceiling height, building layout, and outdoor temperatures. Its modulating burner automatically adjusts heat output to maintain consistent indoor comfort while reducing unnecessary fuel consumption during milder weather.

Q. Is the Toyotomi L-533 suitable for homeowners and professional installers?

A. Yes. The Toyotomi L-533 offers intuitive digital controls that are easy for homeowners to operate after installation, while its direct-vent design simplifies installation for qualified HVAC professionals. Installation should always follow the manufacturer's instructions along with applicable local fuel, mechanical, and building codes.

Q. How energy efficient is the Toyotomi L-533 Laser heater?

A. The Toyotomi L-533 is designed for high fuel efficiency through sealed combustion, electronic burner management, and automatic heat modulation. These features help deliver consistent indoor comfort while minimizing unnecessary fuel use. Actual fuel savings depend on building insulation, installation quality, outdoor temperatures, and heating habits.

Q. What fuel types can the Toyotomi L-533 use?

A. The Toyotomi L-533 is compatible with Ultra Low Sulfur Heating Oil, Ultra Low Sulfur Diesel, Low Sulfur No. 1 Fuel Oil, and K-1 kerosene. This fuel flexibility makes it a practical solution for rural communities and remote properties where available heating fuels may vary by region or season.

Q. Does the Toyotomi L-533 include Wi-Fi and Bluetooth connectivity?

A. Yes. The Toyotomi L-533 features built-in Wi-Fi and Bluetooth capability, allowing compatible mobile devices to remotely monitor and adjust heating settings. Programmable schedules and electronic temperature controls help improve comfort while supporting efficient fuel usage throughout changing weather conditions.

Q. What accessories are available for the Toyotomi L-533?

A. The Toyotomi L-533 supports a variety of installation and fuel system accessories including vent extension kits, extension pipe sets, fuel filters, lifter pumps, fuel line fittings, shut-off valves, pressure reducing valves, and fuel tank accessories. These components allow installers to configure the heater for many residential and remote installation applications.

Q. Is the Toyotomi L-533 quiet, safe, and suitable for everyday use?

A. Yes. The Toyotomi L-533 is engineered for quiet operation and dependable daily performance. Its sealed direct-vent combustion system draws combustion air from outside while venting exhaust outdoors, and multiple electronic safety systems continuously monitor operation to provide reliable heating throughout the winter season.

Q. How does the Toyotomi L-533 compare with traditional oil-fired heaters?

A. Compared with many conventional oil-fired heaters, the Toyotomi L-533 offers improved fuel efficiency, cleaner sealed combustion, smart Wi-Fi and Bluetooth connectivity, and more precise electronic temperature control. Its compact direct-vent design provides dependable heating with lower day-to-day fuel consumption and greater comfort for homes and cabins in demanding cold-weather environments.
