Rinnai Direct Vent Wall Furnace DT 8K Btu LP

EX08DTP

Status: In Stock

was US$2,099.00

now US$1,589.50

Description

Description

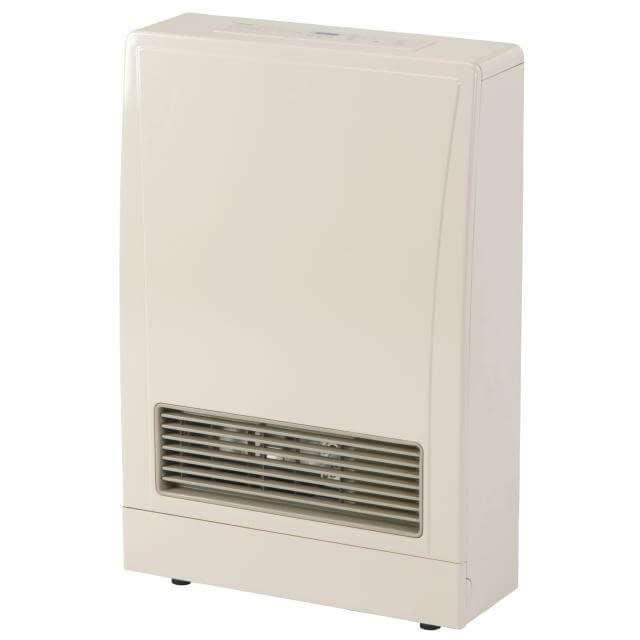

The Rinnai EnergySaver® Direct Vent Wall Furnace is a high-efficiency, wall-mounted heating solution designed to deliver reliable comfort in homes, cabins, garages, workshops, and supplemental heating zones. Engineered for performance and durability, this direct vent gas furnace provides consistent warmth while using less fuel than traditional heaters, making it a smart choice for energy-conscious homeowners.

Using advanced modulating technology, the Rinnai EnergySaver continuously adjusts heat output to match indoor temperature needs. This precise control helps eliminate temperature swings, improves comfort, and maximizes fuel efficiency. Because it operates as a direct vent wall heater, combustion air is drawn from outside and exhaust gases are vented outdoors, improving indoor air quality and overall safety.

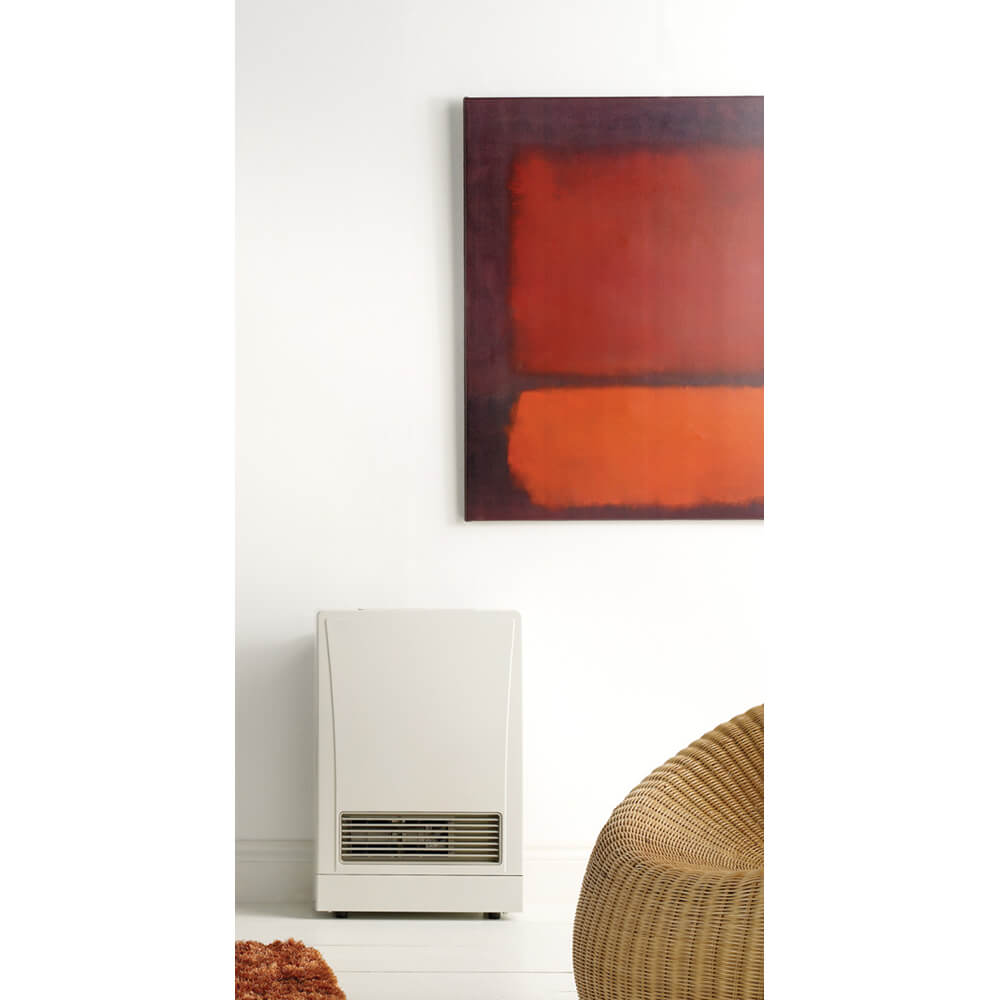

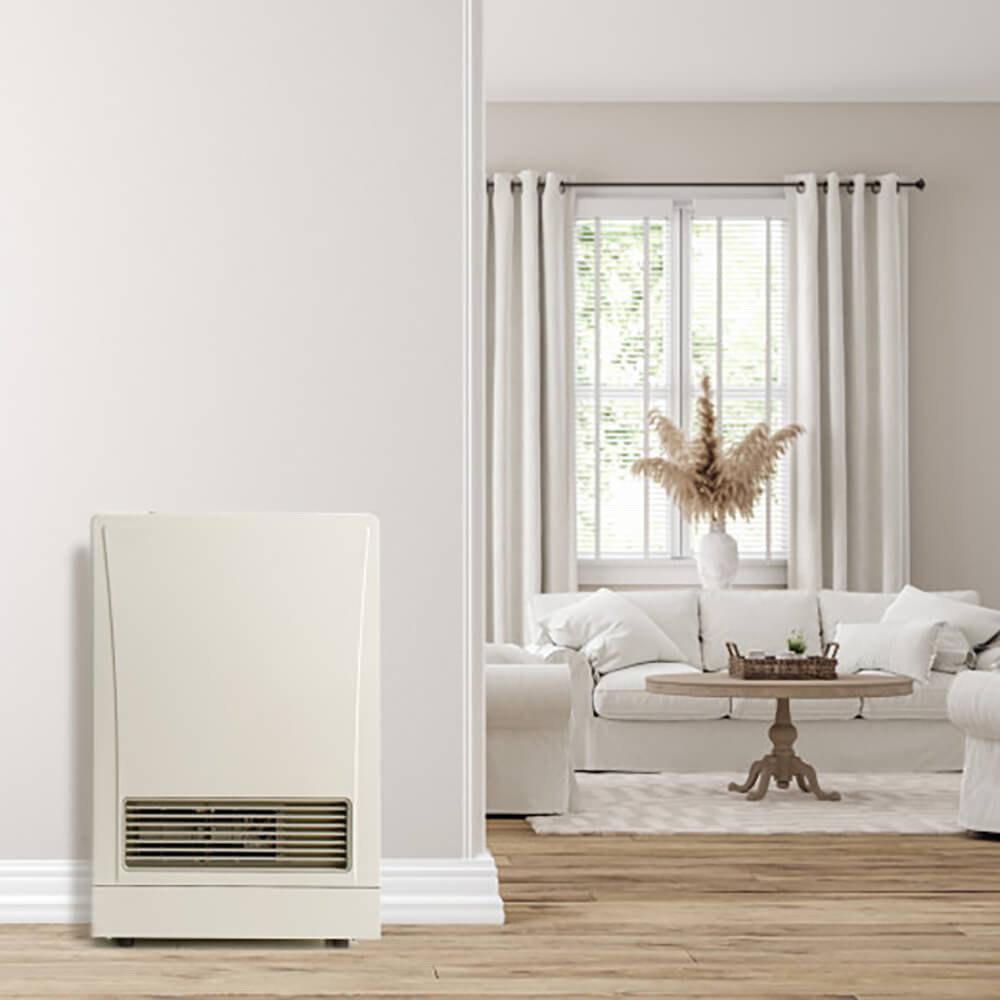

The compact, wall-mounted design allows for flexible installation without the need for ductwork, making it ideal for both new installations and retrofit applications. An integrated programmable thermostat provides easy temperature control, while compatibility with popular smart thermostats allows for enhanced scheduling and remote operation.

Available in multiple BTU sizes and in natural gas or propane models, the Rinnai EnergySaver Direct Vent Wall Furnace is built for quiet operation, dependable performance, and long service life. It is well suited for primary or zone heating in residential and light commercial settings where efficiency, comfort, and space savings matter most.

Features

Features

  • Restart capability: Restarts automatically when ignition or combustion fails.
  • Timer Settings: Starts and turns off the heater at two timer settings.
  • Seven-stage modulating gas valve: Provides precise gas flow by operating from one to seven stages.
  • Negative coefficient thermistor: Detects temperature change in 1/2 of a degree.
  • Variable speed inducer motor with pressure switch: Monitors and controls combustion fan and allows the appliance to overcome winds of up to 40 mph.
  • Self-diagnostic electronics: Continually monitors functions; provides auto shutdown codes; indicates
  • Quiet operation: Reduces noise through use of swept blades in convection fan; quiet expansion/contraction of parts due to temperature changes.
  • Wall Thermostat connectable: Ability to connect to a field-supplied wall thermostat.

Specifications

Specifications

Width: 18 1/4"
Height: 27 3/8"
Depth: 10 1/8"
Weight: 46 lbs.
Approved Gas Types: Natural Gas or Propane
Minimum/Maximum Gas Rate (Input BTUs) Natural Gas: 3,000 - 8,000 BTU
Minimum/Maximum Gas Rate (Input BTUs) Propane: 3,000 - 8,000 BTU
AFUE Rating Natural Gas: 82%
AFUE Rating Propane: 82%
CFM: 55.5 - 82.0
Electrical: AC 120 Volts, 60 Hz, 42 Watts
Noise Level: 27 - 36 dB
Gas Connection: 1/2" FNPT
Temperature Range (Min-Max): 60°F - 80°F in 2° Increments



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

Q. What is the Rinnai EX08DTP wall furnace used for?

A. It provides efficient direct-vent heating for small residential spaces using propane gas.

Q. How much heat does the EX08DTP produce?

A. It delivers up to 8,000 BTUs, making it suitable for small rooms or supplemental zone heating.

Q. What type of venting does this wall furnace use?

A. It uses a direct vent, sealed combustion system that vents exhaust outdoors and draws in combustion air.

Q. Is the EX08DTP configured for propane gas?

A. Yes, this model is factory-configured for propane (LP) gas operation.

Q. Where is a direct vent wall furnace commonly installed?

A. It is commonly installed in bedrooms, offices, cabins, or other small spaces requiring wall-mounted heat.

Q. Should installation be completed by a qualified professional?

A. Yes, installation should be performed by a qualified installer following Rinnai guidelines and local codes.
