Rinnai Direct Vent Wall Furnace DT 22K Btu LP

EX22DTP

Status: In Stock

was US$3,322.00

now US$2,491.50

Description

Description

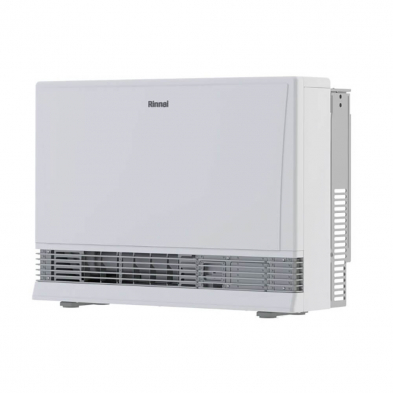

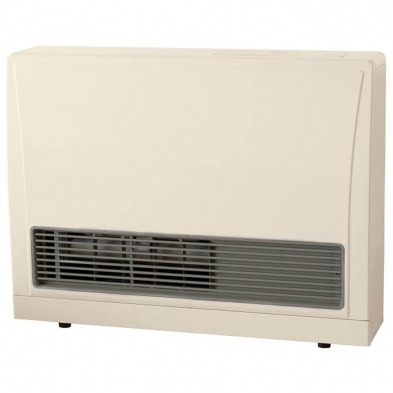

Rinnai Direct Vent Wall Furnace – 22,000 BTU LP Gas Heating

The Rinnai Direct Vent Wall Furnace DT 22K BTU LP model is a high-capacity, wall-mounted propane heating solution designed to deliver reliable, efficient warmth in larger living spaces, cabins, workshops, garages, and zone-heating applications. Engineered for consistent performance, this direct vent furnace provides steady comfort while optimizing propane fuel use.

Using advanced modulating technology, the DT 22K model automatically adjusts heat output to maintain even room temperatures and reduce fuel waste. As a sealed direct vent system, it draws combustion air from outdoors and vents exhaust gases outside, helping protect indoor air quality while improving overall safety and efficiency.

The compact, wall-mounted design allows for flexible installation without the need for ductwork, making this unit well suited for both new installations and retrofit projects. Simple thermostat control provides precise temperature management, while quiet operation ensures comfortable heating without disruption.

Designed for propane operation and long service life, the Rinnai DT 22K BTU LP Direct Vent Wall Furnace is an ideal choice for primary or zone heating in residential and light commercial settings where higher heat output, efficiency, and space-saving design are essential.

Features

Features

  • 22,000 BTU heating capacity: Provides ample warmth for a wide range of indoor spaces.
  • Advanced programmable thermostat: Allows for customized heating schedules and improved energy efficiency.
  • Direct vent technology: Ensures safe and efficient operation, with no need for a chimney.
  • Compact design: Can be installed in tight spaces, making it a versatile heating solution for any home.
  • Low NOx emissions: Environmentally friendly design reduces harmful pollutants.
  • Optional propane conversion kit: Provides additional fuel flexibility.

Specifications

Specifications

Width: 29 7/8"
Height: 22 7/8"
Depth: 10 1/8"
Weight: 57 lbs.
Approved Gas Types Natural Gas or Propane
Minimum/Maximum Gas Rate (Input BTUs) Natural Gas: 8,200 - 21,500 BTU
Minimum/Maximum Gas Rate (Input BTUs) Propane: 8,200 - 20,700 BTU
AFUE Rating Natural Gas: 81%
AFUE Rating Propane 82%
CFM: 111.3 - 162.7
Electrical: AC 120 Volts, 60 Hz, 52 Watts
Noise Level: 33 - 38 dB
Gas Connection: 1/2" FNPT
Temperature Range (Min-Max): 60°F - 80°F in 2° Increments



Literature

Support

Support

Diagrams, Troubleshooting, and Support - Learn More


Product FAQ

Q. What is the Rinnai EX22DTP wall furnace used for?

A. It is used to provide efficient direct-vent heating for residential spaces using propane gas.

Q. How much heat does the EX22DTP produce?

A. It delivers up to 22,000 BTUs, making it suitable for medium-sized rooms or zone heating.

Q. What fuel type does the EX22DTP use?

A. This model is factory-configured for propane (LP) gas operation.

Q. What type of venting does this wall furnace require?

A. It uses a direct vent, sealed combustion system that vents exhaust outdoors and draws in combustion air.

Q. Where is the Rinnai EX22DTP commonly installed?

A. It is commonly installed in living areas, cabins, workshops, or rooms requiring wall-mounted zone heating.

Q. Should installation be completed by a qualified professional?

A. Yes, installation should be performed by a qualified installer following Rinnai guidelines and local codes.
