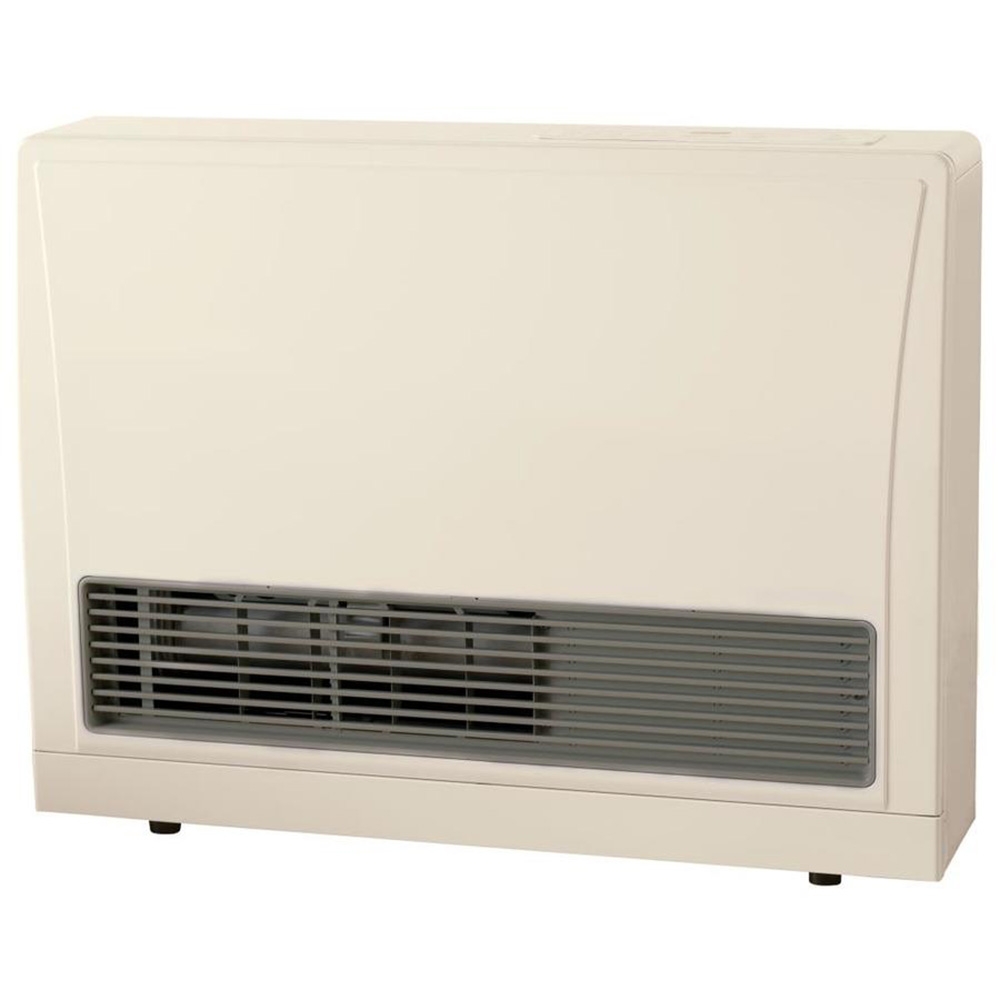

Rinnai Direct Vent Wall Furnance (Thermostat Ready) NG


Status: In Stock




16,700 BTU Energy Efficient, Direct Vent Wall Furnaces from Rinnai
The Rinnai EX17C (RHFE-434FTA) features a 7-stage modulating gas valve, providing comfortable, even heat to all areas of the room. It also includes LED temperature controls with memory setting feature, child safety lock and an economy mode for increased energy efficiency.



NEW Cabinet Design

NEW User Friendly Control

NEW Setback Features

Standby Power Less than 1 Watt

Temperature Setting in Celsius or Fahrenheit

Programmable Thermostat

Sealed Combustion

Self-Diagnostic with Error Code Indicator

"Cool to the Touch" Cabinet

Child Safety Lock

7-State Modulating Gas Valve and Variable Speed Blower

Whisper Quiet Fan

10-Year Heat Exchanger Warranty, 5 Year Parts, 2 Years Labor



Width: 29 7/8"
Height: 22 7/8"
Depth: 10 1/8"
Weight: 57 lbs.
Approved Gas Types: Natural Gas or Propane
Minimum/Maximum Gas Rate (Input BTUs) Natural Gas: 8,200 - 16,700 BTU
Minimum/Maximum Gas Rate (Input BTUs) Propane: 8,200 - 16,700 BTU
AFUE Rating Natural Gas: 81%
AFUE Rating Propane: 82%
CFM: 111.3 - 137.8
Electrical: AC 120 Volts, 60 Hz, 46 Watts
Noise Level: 33 - 38 dB
Gas Connection: 1/2" FNPT
Temperature Range (Min-Max): 60°F - 80°F in 2° Increments
