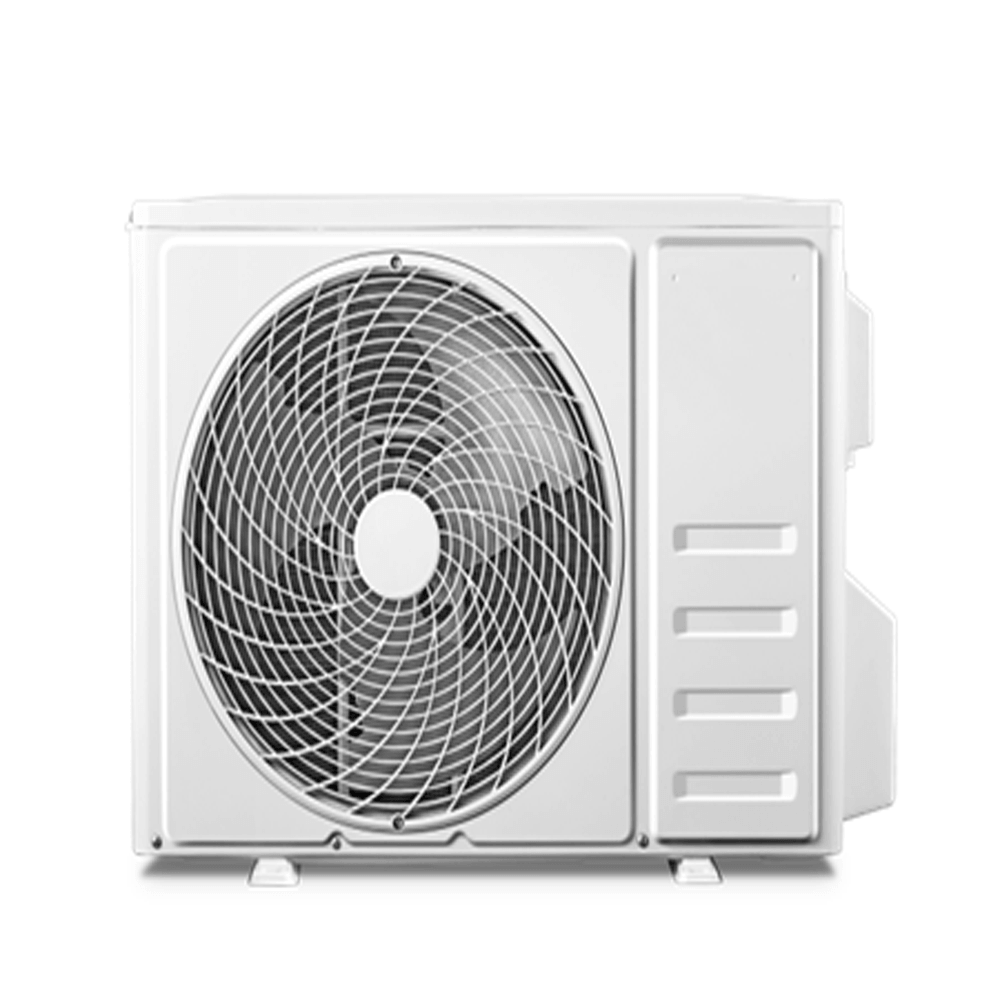

Toyotomi Mini Split Outdoor Unit 12,000 BTU 115V

The Toyotomi TIG12K115 is the outdoor condensing unit for Toyotomi's 12,000 BTU T-Series ductless mini split heat pump. It pairs with the TIN12K115 indoor wall unit to deliver 12,000 BTU of cooling and up to 12,400 Btu/h of heating at 47°F from a single-zone inverter system, sized for spaces up to 280 sq. ft.

Built for cold winters, the inverter compressor keeps producing usable heat well below zero: 8,000 Btu/h at -4°F and 6,680 Btu/h at -13°F, with an operating range down to -13°F in heating mode. It ships precharged for a 25 ft (7.5 m) line set and uses R-454B, the current low-global-warming refrigerant. Both indoor and outdoor units are required for a working system; each is sold separately.

The T-Series is ENERGY STAR certified and NEEP cold-climate listed, with a 23 SEER2 cooling rating and 10.0 HSPF2 in heating. Rural Energy stocks Toyotomi mini splits and supports them with parts and technical help, the same way we have supported Toyostove heaters for decades.

COLD-CLIMATE HEAT PUMP
Toyotomi's T-Series inverter heat pump is built to heat, not just cool.

• 12,400 Btu/h rated heating at 47°F and 7,800 Btu/h at 17°F
• Keeps running at 8,000 Btu/h at -4°F and 6,680 Btu/h at -13°F
• NEEP cold-climate listed and ENERGY STAR certified

EFFICIENT AND ECONOMICAL
Variable-speed inverter technology matches output to the room instead of cycling on and off.

• 23 SEER2 cooling, 13.0 EER2 at 95°F
• 10.0 HSPF2 (Region IV) and 8.6 HSPF2 (Region V) heating
• Modulates from 2,500 up to 15,000 Btu/h in heating for steady temperatures

QUIET AND COMFORTABLE
Five fan speeds from Turbo down to Mute, plus a remote controller for mode, temperature, timer, and swing.

• Indoor sound as low as 30 dB(A) on Mute
• Dehumidifies 1.6 L/h in cooling mode
• Rated for rooms up to 280 sq. ft.

SIMPLE INSTALLATION
Ductless design with a small wall penetration for the line set and wiring.

• Precharged for 25 ft (7.5 m) of line set, up to 49 ft (15 m) total run
• 115V, 60Hz, single phase power, 16 A minimum circuit ampacity, 25 A maximum fuse
• R-454B low-GWP refrigerant
• Requires the TIN12K115 indoor unit to complete the system (sold separately)
