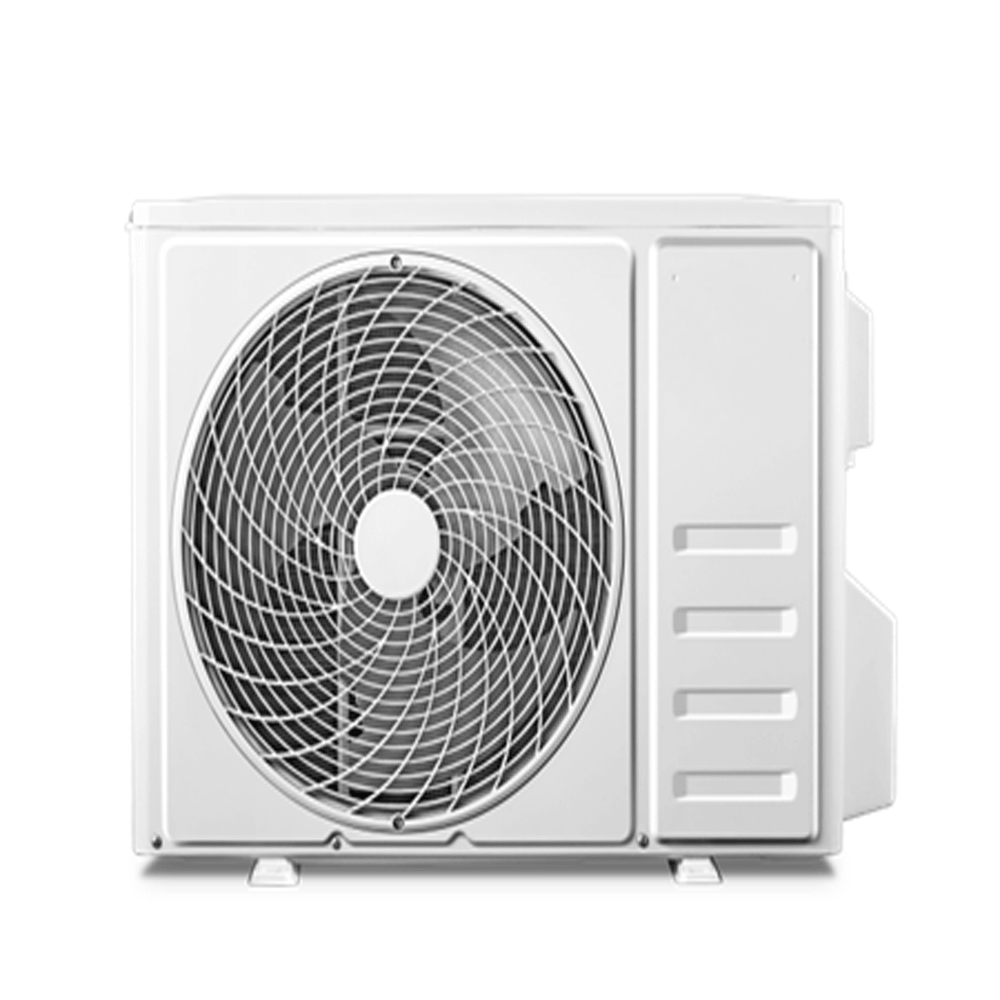

Toyotomi Mini Split Outdoor Unit Zoom

Toyotomi Mini Split Outdoor Unit 18,000 BTU 230V

TIG18K230

Status: In Stock

US$POA

Description

Description

The Toyotomi TIG18K230 is the outdoor condensing unit for Toyotomi's 18,000 BTU T-Series ductless mini split heat pump. It pairs with the TIN18K230 indoor wall unit to deliver 18,000 BTU of cooling and up to 19,000 Btu/h of heating at 47°F from a single-zone inverter system, sized for spaces up to 380 sq. ft.

Built for cold winters, the inverter compressor keeps producing usable heat well below zero: 11,000 Btu/h at -4°F and 9,200 Btu/h at -13°F, with an operating range down to -13°F in heating mode. It ships precharged for a 25 ft (7.5 m) line set and uses R-454B, the current low-global-warming refrigerant. Both indoor and outdoor units are required for a working system; each is sold separately.

The T-Series is ENERGY STAR certified and NEEP cold-climate listed, with a 23 SEER2 cooling rating and 9.5 HSPF2 in heating. Rural Energy stocks Toyotomi mini splits and supports them with parts and technical help, the same way we have supported Toyostove heaters for decades.

Features

Features

COLD-CLIMATE HEAT PUMP
Toyotomi's T-Series inverter heat pump is built to heat, not just cool.

  • 19,000 Btu/h rated heating at 47°F and 11,000 Btu/h at 17°F
  • Keeps running at 11,000 Btu/h at -4°F and 9,200 Btu/h at -13°F
  • NEEP cold-climate listed and ENERGY STAR certified

EFFICIENT AND ECONOMICAL
Variable-speed inverter technology matches output to the room instead of cycling on and off.

  • 23 SEER2 cooling, 12.5 EER2 at 95°F
  • 9.5 HSPF2 (Region IV) and 8.2 HSPF2 (Region V) heating
  • Modulates from 4,000 up to 21,000 Btu/h in heating for steady temperatures

QUIET AND COMFORTABLE
Five fan speeds from Turbo down to Mute, plus a remote controller for mode, temperature, timer, and swing.

  • Indoor sound as low as 34 dB(A) on Mute
  • Dehumidifies 2.2 L/h in cooling mode
  • Rated for rooms up to 380 sq. ft.

SIMPLE INSTALLATION
Ductless design with a small wall penetration for the line set and wiring.

  • Precharged for 25 ft (7.5 m) of line set, up to 65 ft (20 m) total run
  • 208/230V, 60Hz, single phase power, 12 A minimum circuit ampacity, 20 A maximum fuse
  • R-454B low-GWP refrigerant
  • Requires the TIN18K230 indoor unit to complete the system (sold separately)

Specifications

Specifications

Model: TIG18K230
Brand: Toyotomi
Unit: Outdoor condensing unit
Pairs With: TIN18K230 indoor unit
System: T-Series single-zone ductless mini split heat pump, cooling and heating
Power Supply: 208/230V, 60Hz, single phase
Rated Cooling (95°F): 18,000 Btu/h
Cooling Range: 4,000 to 19,000 Btu/h
EER2 / SEER2: 12.5 / 23
Rated Heating (47°F): 19,000 Btu/h
Rated Heating (17°F): 11,000 Btu/h
Heating Range: 4,000 to 21,000 Btu/h
Max. Heating at 5°F / -4°F / -13°F: 13,600 Btu/h / 11,000 Btu/h / 9,200 Btu/h
HSPF2 (Region IV / Region V): 9.5 / 8.2
COP2 (47°F): 3.81
Rated Input (Cooling / Heating): 1,390 W / 1,360 W
Rated Current (Cooling / Heating): 6.2 A / 6.1 A
Min. Circuit Ampacity / Max. Fuse: 12 A / 20 A
Moisture Removal: 2.2 L/h
Suitable Area: Up to 380 sq. ft.
Certifications: ENERGY STAR, NEEP cold-climate listed
Outdoor Sound Level: 53 dB(A)
Refrigerant / Charge: R-454B, 1,290 g (45.5 oz)
Connecting Pipe (Gas / Liquid): 1/2" / 1/4"
Connecting Wiring: 4 x 16 AWG
Power Cord: 14 AWG
Factory Precharge Line: 25 ft (7.5 m)
Max. Line Length: 65 ft (20 m)
Max. Height Difference: 49 ft (15 m)
Additional Refrigerant Charge: 0.11 oz/ft (10 g/m) beyond precharge length
Operating Range (Outdoor): Cooling 5°F to 131°F; Heating -13°F to 86°F
Net Dimensions (W x D x H): 36-1/2" W x 15" D x 27-1/2" H
Net Weight: 90 lbs
Shipping (W x D x H, weight): 37-3/4" x 16-7/8" x 28-7/8", 104 lbs (with 5 m line set)
