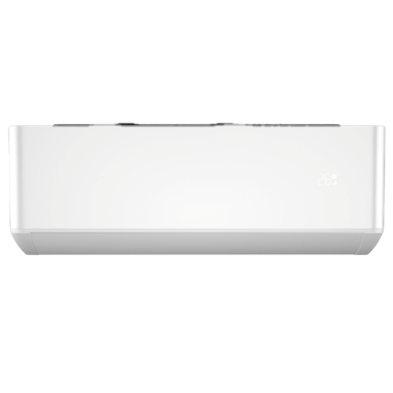

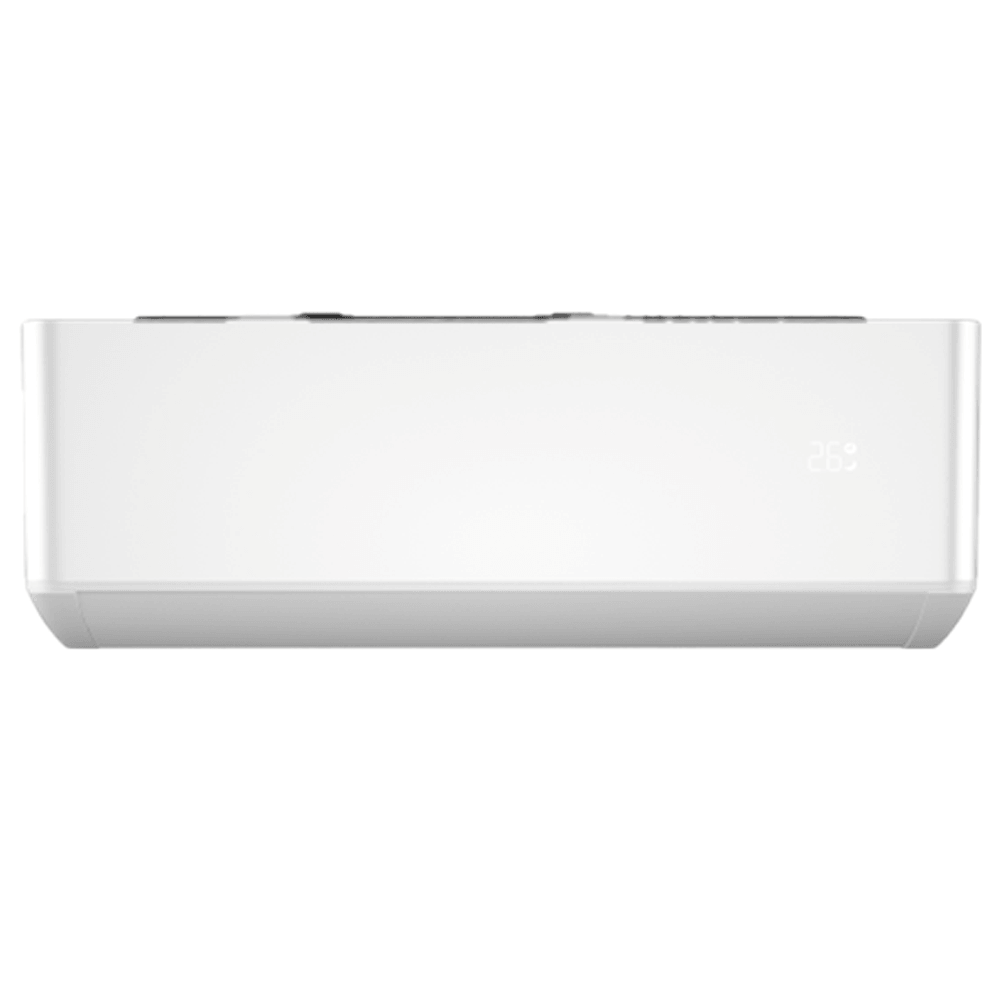

Toyotomi Mini Split Indoor Unit 12K 115V

TIN12K115

Status: In Stock

US$POA

Description

Description

The Toyotomi TIN12K115 is the wall-mounted indoor unit for Toyotomi's 12,000 BTU T-Series ductless mini split heat pump. It pairs with the TIG12K115 outdoor unit to give a single room or open area quiet, efficient heating and cooling from one slim wall cassette, with no ductwork and no window unit. Rated for spaces up to 280 sq. ft, it fits bedrooms, home offices, additions, cabins, and shops.

The indoor unit carries the fan, coil, filter, and controls. A five-speed fan (Turbo through Mute) moves 500 CFM at the top setting and drops to a whisper for overnight use, and the included remote handles mode, temperature, fan speed, timer, and swing. Both indoor and outdoor units are required for a working system; each is sold separately.

The T-Series is ENERGY STAR certified and NEEP cold-climate listed, with a 23 SEER2 cooling rating and 10.0 HSPF2 in heating. Rural Energy stocks Toyotomi mini splits and supports them with parts and technical help, the same way we have supported Toyostove heaters for decades.

Features

Features

COLD-CLIMATE HEAT PUMP
Toyotomi's T-Series inverter heat pump is built to heat, not just cool.

  • 12,400 Btu/h rated heating at 47°F and 7,800 Btu/h at 17°F
  • Keeps running at 8,000 Btu/h at -4°F and 6,680 Btu/h at -13°F
  • NEEP cold-climate listed and ENERGY STAR certified

EFFICIENT AND ECONOMICAL
Variable-speed inverter technology matches output to the room instead of cycling on and off.

  • 23 SEER2 cooling, 13.0 EER2 at 95°F
  • 10.0 HSPF2 (Region IV) and 8.6 HSPF2 (Region V) heating
  • Modulates from 2,500 up to 15,000 Btu/h in heating for steady temperatures

QUIET AND COMFORTABLE
Five fan speeds from Turbo down to Mute, plus a remote controller for mode, temperature, timer, and swing.

  • Indoor sound as low as 30 dB(A) on Mute
  • Dehumidifies 1.6 L/h in cooling mode
  • Rated for rooms up to 280 sq. ft.

SIMPLE INSTALLATION
Ductless design with a small wall penetration for the line set and wiring.

  • Precharged for 25 ft (7.5 m) of line set, up to 49 ft (15 m) total run
  • 115V, 60Hz, single phase power, 16 A minimum circuit ampacity, 25 A maximum fuse
  • R-454B low-GWP refrigerant
  • Requires the TIG12K115 outdoor unit to complete the system (sold separately)

Specifications

Specifications

Model: TIN12K115
Brand: Toyotomi
Unit: Indoor wall-mounted unit
Pairs With: TIG12K115 outdoor unit
System: T-Series single-zone ductless mini split heat pump, cooling and heating
Power Supply: 115V, 60Hz, single phase
Rated Cooling (95°F): 12,000 Btu/h
Cooling Range: 2,500 to 12,500 Btu/h
EER2 / SEER2: 13.0 / 23
Rated Heating (47°F): 12,400 Btu/h
Rated Heating (17°F): 7,800 Btu/h
Heating Range: 2,500 to 15,000 Btu/h
Max. Heating at 5°F / -4°F / -13°F: 8,900 Btu/h / 8,000 Btu/h / 6,680 Btu/h
HSPF2 (Region IV / Region V): 10.0 / 8.6
COP2 (47°F): 3.81
Rated Input (Cooling / Heating): 960 W / 945 W
Rated Current (Cooling / Heating): 8.5 A / 8.4 A
Min. Circuit Ampacity / Max. Fuse: 16 A / 25 A
Moisture Removal: 1.6 L/h
Suitable Area: Up to 280 sq. ft.
Certifications: ENERGY STAR, NEEP cold-climate listed
Air Flow: 500 / 470 / 411 / 323 / 205 CFM (Turbo / High / Med / Low / Mute)
Indoor Sound Level: 46 / 44 / 36 / 32 / 30 dB(A) (Turbo / High / Med / Low / Mute)
Net Dimensions (W x D x H): 36-1/4" W x 12" D x 7-5/8" H
Net Weight: 23 lbs
Shipping (W x D x H, weight): 39" x 15" x 10-1/2", 31 lbs
Controls: Wireless remote controller included
