Toyotomi Mini Split Indoor Unit 18,000 BTU 230V

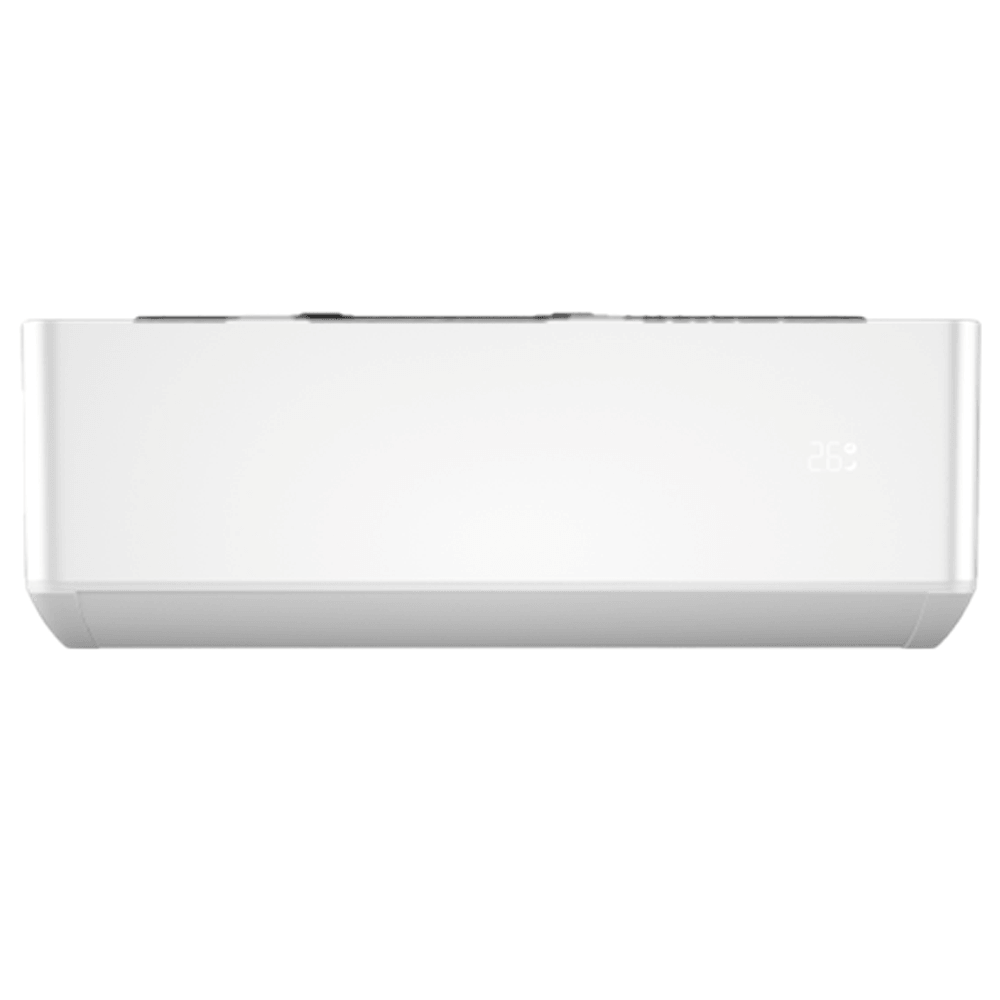

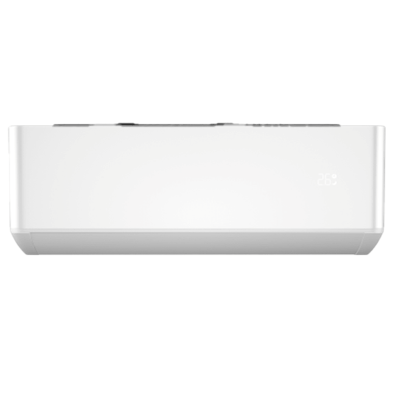

The Toyotomi TIN18K230 is the wall-mounted indoor unit for Toyotomi's 18,000 BTU T-Series ductless mini split heat pump. It pairs with the TIG18K230 outdoor unit to give a single room or open area quiet, efficient heating and cooling from one slim wall cassette, with no ductwork and no window unit. Rated for spaces up to 380 sq. ft, it fits bedrooms, home offices, additions, cabins, and shops.

The indoor unit carries the fan, coil, filter, and controls. A five-speed fan (Turbo through Mute) moves 735 CFM at the top setting and drops to a whisper for overnight use, and the included remote handles mode, temperature, fan speed, timer, and swing. Both indoor and outdoor units are required for a working system; each is sold separately.

The T-Series is ENERGY STAR certified and NEEP cold-climate listed, with a 23 SEER2 cooling rating and 9.5 HSPF2 in heating. Rural Energy stocks Toyotomi mini splits and supports them with parts and technical help, the same way we have supported Toyostove heaters for decades.

COLD-CLIMATE HEAT PUMP
Toyotomi's T-Series inverter heat pump is built to heat, not just cool.

• 19,000 Btu/h rated heating at 47°F and 11,000 Btu/h at 17°F
• Keeps running at 11,000 Btu/h at -4°F and 9,200 Btu/h at -13°F
• NEEP cold-climate listed and ENERGY STAR certified

EFFICIENT AND ECONOMICAL
Variable-speed inverter technology matches output to the room instead of cycling on and off.

• 23 SEER2 cooling, 12.5 EER2 at 95°F
• 9.5 HSPF2 (Region IV) and 8.2 HSPF2 (Region V) heating
• Modulates from 4,000 up to 21,000 Btu/h in heating for steady temperatures

QUIET AND COMFORTABLE
Five fan speeds from Turbo down to Mute, plus a remote controller for mode, temperature, timer, and swing.

• Indoor sound as low as 34 dB(A) on Mute
• Dehumidifies 2.2 L/h in cooling mode
• Rated for rooms up to 380 sq. ft.

SIMPLE INSTALLATION
Ductless design with a small wall penetration for the line set and wiring.

• Precharged for 25 ft (7.5 m) of line set, up to 65 ft (20 m) total run
• 208/230V, 60Hz, single phase power, 12 A minimum circuit ampacity, 20 A maximum fuse
• R-454B low-GWP refrigerant
• Requires the TIG18K230 outdoor unit to complete the system (sold separately)
