Toyotomi Laser 304 Graphite Wi-Fi Model Bluetooth Model

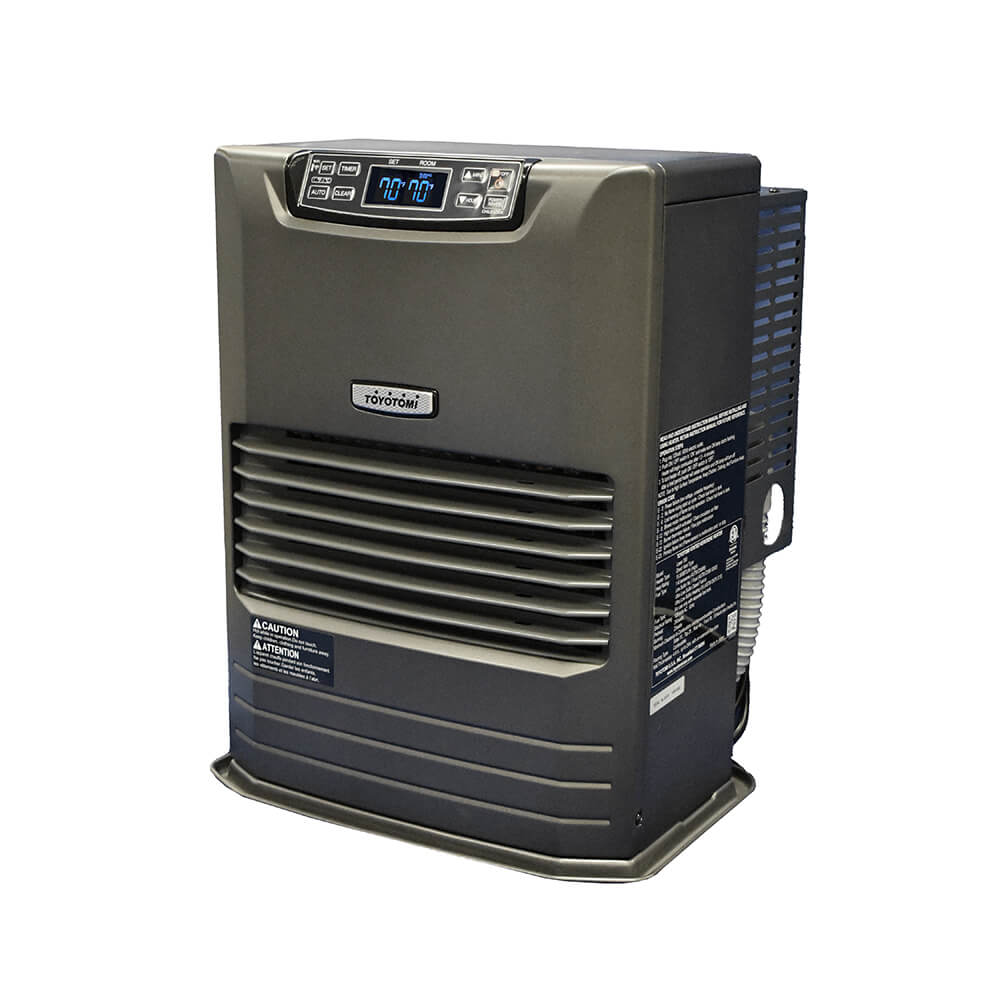

Toyotomi Laser 304 Graphite Wi-Fi Model Bluetooth Model

L-304

Heating Area: 350 - 720 sq ft

Status: In Stock

US$1,689.00

Qty:

Add To Compare

Description

The Toyotomi Laser 304 is a highly efficient, direct vent oil heating system that is perfect for keeping your home warm and comfortable during the cold winter months. With its advanced technology and sleek design, the Laser 304 is a top choice for homeowners looking for a reliable and cost-effective heating solution.

One of the key features of the Laser 304 is its high-efficiency rating, which allows it to provide powerful heating while using less fuel than traditional heating systems. This not only helps you save money on your energy bills, but it also reduces your carbon footprint, making it an environmentally friendly choice.

The Laser 304 also boasts a range of advanced safety features, including an automatic shut-off valve and a built-in safety sensor that monitors for any potential malfunctions. Additionally, the unit is designed to operate quietly, so you can enjoy the warmth of your home without any annoying noise distractions.

Installation of the Laser 304 is easy and hassle-free, thanks to its compact size and versatile design. The unit can be mounted on the wall or installed on a floor stand, making it easy to find the perfect location for your needs. And with its intuitive digital controls, you can easily program the unit to heat your home according to your desired temperature and schedule.

The Toyotomi Laser 304 is the smallest output wall furnace available from Toyotomi. The Toyotomi Laser 304 heats up to 720 Sq. Ft. of living space for at a fraction of alternative heat sources. The Toyotomi Laser 304 is a sealed combustion or direct-vent system that uses only outside air. It also vents gases directly outside. This high-efficiency model provides safe, comfortable warmth for zone heating, small homes, and cabins. These new models are now Wi-Fi compatible.

Features

EFFICIENT AND ECONOMICAL
Toyotomi Laser products are the most fuel-efficient, energy-saving, oil* heating systems available.

Uses up to 50% less fuel for heating comparable size areas than conventional oil-fired heating systems at a fraction of the cost
The only oil-fired modulating burner in North America
(increases efficiency)
Pays for itself in fuel savings in just a few short years

COMFORTABLE AND WI-FI COMPATIBLE
The Laser series large circulation fan distributes heat quickly and evenly in order to maintain and optimize maximum comfort.

Automatically regulate between low, medium and high-temperature settings
New Wi-Fi feature allows changing temperature remotely
from an app on your Apple or Android device
Self shut-off when room rises approximately 4° above the desired temperature

CLEAN, SAFE & ODORLESS
Advanced heating pipe-within-a-pipe forced flue venting system creates smokeless, odorless, clean heating.

Lower emissions (up to 50% less CO2) than conventional oil-fired heating systems
Outside pipe brings in outside air for combustion
Inside pipe exhausts all combustion by-products to the outside
Circulating fan distributes heat
Cool-to-the-touch cabinet
Permanent mesh filter protects circulation fan and interior components from dust

EASY INSTALLATION
Owner's manual provides complete, step-by-step instructions that are helpful and easy to understand.

Installation takes about three hours, or less
Vents through a side wall using the direct vent kit which is included with heater
Full range of optional parts and accessories available offers a variety of different installations

FLEXIBLE FUEL OPTIONS
Toyostove Vented Heaters can use the following fuels without any modifications to the unit:

Ultra Low Sulfur Heating Oil (ULSHO)
Ultra Low Sulfur Diesel (ULSD)
#1 Low Sulfur Fuel Oil, or K-1 Kerosene

Check with your local fuel oil dealer for which of these fuels are available in your area.

EXHAUST SYSTEM
The Laser Series flue pipe makes venting to the outside simple and easy. Completely flexible, it adjusts to wall thickness. A small vent cap is all that can be seen from the outside.

SET-BACK
Weekly Timer Operation allows for up to 30 different Set-Back temperatures. The Weekly Timer can be used to change the temperature for different days of the week and several times during the day.

Specifications

Fuel Type:	Ultra Low Sulfur Heating Oil (ULSHO) or Ultra Low Sulfur Diesel Fuel (ULSD) (ASTM D975 S15), Low Sulfur No. 1 Fuel (ASTM D396 S500), or K-1 Kerosene (ASTM D3699)
Heating Efficiency:	87% (AFUE Rating)
Heating Rating:	15,000 BTU/Hr (High) 10,100 BTU/Hr (Medium) 5,310 BTU/Hr (Low)
Fuel Consumption:	0.11 Gal/Hr (High) 0.08 Gal/Hr (Medium) 0.04 Gal/Hr (Low)
Size (WxHxD):	17-3/8" x 21-3/4" x 15-1/8"
Weight:	31 lbs (empty)
Heating Area: *	600 sq. ft. at (0°F) 720 sq. ft. at (20°F)
Max. Length of Vent Pipe System:	Maximum 10 ft., 3 bends or less
Electrical Rating:	120 Volts AC, 60 Hz Preheat: 240 Watts Burning: 23 Watts
Vent Hole Pipe:	2-3/4" - 3" Diameter
Type of Tank:	Exterior Tank

* 0° F Heat Load = 24 BTU/ft²/hr
20° F Heat Load = 20 BTU/ft²/hr
Room size for which this heater is suitable will vary depending on outside temperature, house insulation, window
size and other factors.

Literature

Heating with Oil versus Propane

Toyostove Laser and Oil Miser Vented Heating System Accessories

Toyotomi and Toyostove Registration

Support

Diagrams, Troubleshooting, and Support - Learn More

Q. What is the Toyotomi L-304 Laser 304 Graphite Wi-Fi Bluetooth Model best for?

A. The Toyotomi L-304 Laser 304 Graphite Wi-Fi Bluetooth Model is designed to provide dependable, high-efficiency heating for small to medium-sized homes, cabins, apartments, workshops, and remote properties. Its direct-vent sealed combustion system delivers clean, comfortable heat while helping reduce fuel consumption. Built for cold climates, it combines modern Wi-Fi and Bluetooth connectivity with proven Toyotomi performance for everyday comfort.

Q. Who should choose the Toyotomi L-304 Laser Direct Vent Heater?

A. The Toyotomi L-304 is an excellent choice for homeowners, cabin owners, vacation properties, off-grid residences, and contractors looking for an efficient oil-fired heating solution for smaller spaces. It is engineered for demanding northern climates where dependable performance, fuel efficiency, and long-term reliability are essential. It is also well suited for customers replacing older space heaters with modern direct-vent technology.

Q. Can the Toyotomi L-304 efficiently heat a small home or cabin?

A. Yes. The Toyotomi L-304 is designed to efficiently heat small to medium-sized living areas, with actual heating coverage depending on insulation, ceiling height, floor plan, and outdoor temperatures. Its modulating burner automatically adjusts heat output to maintain comfortable indoor temperatures while helping minimize unnecessary fuel consumption.

Q. Is the Toyotomi L-304 suitable for homeowners and professional installers?

A. Yes. The Toyotomi L-304 features simple electronic controls that are easy for homeowners to use after installation, while its direct-vent design supports efficient installation by qualified HVAC professionals. Installation should always follow the manufacturer's instructions and comply with all applicable fuel, mechanical, and building codes.

Q. How energy efficient is the Toyotomi L-304 Laser heater?

A. The Toyotomi L-304 is engineered for high fuel efficiency through sealed combustion, electronic burner management, and automatic heat modulation. These technologies help deliver steady indoor comfort while reducing unnecessary fuel consumption. Actual operating efficiency depends on installation quality, insulation, outdoor temperatures, and individual heating requirements.

Q. What fuel types can the Toyotomi L-304 use?

A. The Toyotomi L-304 is compatible with Ultra Low Sulfur Heating Oil, Ultra Low Sulfur Diesel, Low Sulfur No. 1 Fuel Oil, and K-1 kerosene. This flexibility makes it an excellent heating solution for rural communities, cabins, and remote locations where fuel availability may vary throughout the year.

Q. Does the Toyotomi L-304 include Wi-Fi and Bluetooth connectivity?

A. Yes. The Toyotomi L-304 includes built-in Wi-Fi and Bluetooth capability, allowing users to remotely monitor and adjust heating settings using compatible mobile devices. Programmable scheduling and electronic temperature controls help improve comfort while supporting efficient fuel usage during changing weather conditions.

Q. What accessories are available for the Toyotomi L-304?

A. The Toyotomi L-304 supports a variety of installation and fuel system accessories including vent extension kits, extension pipe sets, fuel filters, fuel line fittings, lifter pumps, shut-off valves, pressure reducing valves, and fuel tank accessories. These components allow installers to adapt the heater for a wide range of residential and remote applications.

Q. Is the Toyotomi L-304 quiet, safe, and suitable for everyday heating?

A. Yes. The Toyotomi L-304 is engineered for quiet daily operation using a sealed direct-vent combustion system that draws combustion air from outside while venting exhaust gases outdoors. It also includes multiple electronic safety systems, digital monitoring, a circulation fan, and a removable air filter to provide dependable performance throughout the heating season.

Q. How does the Toyotomi L-304 compare with traditional oil-fired heaters?

A. Compared with many conventional oil-fired heaters, the Toyotomi L-304 provides improved fuel efficiency, cleaner sealed combustion, smart Wi-Fi and Bluetooth connectivity, and more precise electronic temperature control. Its compact direct-vent design offers dependable heating with lower day-to-day fuel consumption, making it an excellent choice for smaller homes, cabins, and remote properties where reliable comfort is essential.
