Osburn Stratford II Wood Fireplace

OB04007

Status: In Stock

US$3,999.00

Description

Description

Discover elegance and performance with the Stratford II Wood Fireplace by Osburn Manufacturing. Designed to elevate your home heating experience, this extraordinary fireplace combines exquisite craftsmanship, cutting-edge technology, and timeless design.

With its majestic presence, the Stratford II commands attention and becomes the focal point of any room. Its grand stature, intricate detailing, and robust construction exude luxury and sophistication, making it a true statement piece that enhances the aesthetic appeal of your living space.

But the Stratford II is not just a work of art—it delivers exceptional heating performance that surpasses expectations. Powered by wood-burning efficiency, this fireplace generates ample heat to warm even the largest of rooms. Its advanced combustion system ensures optimal energy utilization, reducing both fuel consumption and environmental impact.

Featuring an expansive glass viewing area, the Stratford II offers an unobstructed view of the dancing flames, captivating your senses and creating an enchanting atmosphere. The mesmerizing display of firelight creates a sense of tranquility, providing a cozy retreat from the outside world.

Designed for convenience, the Stratford II boasts user-friendly features that enhance your comfort. Its easy-to-use air control mechanism allows you to regulate the heat output effortlessly, ensuring personalized warmth to suit your preferences. Additionally, the innovative air wash system keeps the glass clean, guaranteeing an uninterrupted view of the flames.

Embrace the opulence and efficiency of the Stratford II Wood Fireplace by Osburn Manufacturing. Let its majestic presence transform your living space into a haven of luxury, warmth, and style. Elevate your home heating experience to new heights with this extraordinary fireplace. Experience the grandeur of the Stratford II and create cherished memories around its inviting glow.

Required Accessories:

Requires the addition of one each of (A) and (B) required accessories to complete the unit

A:

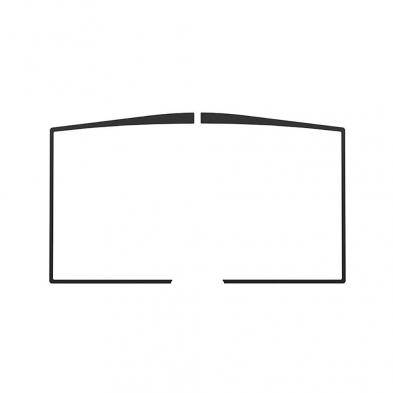

  • OA10610  Black Door Overlay

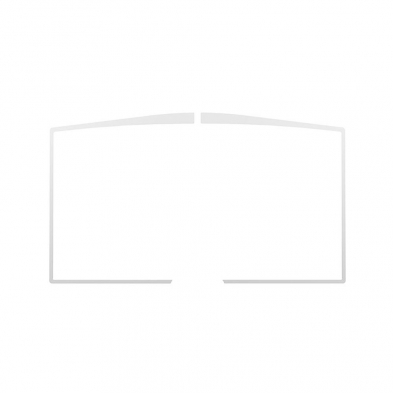

  • OA10612  Brushed Nickel Door Overlay

B:

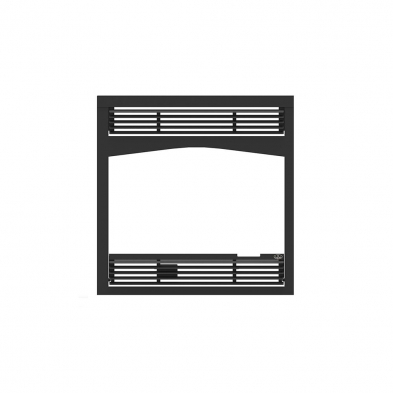

  • OA10251  Traditional Style Faceplate

Options:

  • AC01275  Fire Screen Door

Features

Features

  • Fuel type: Dry cordwood
  • Recommended heating area (sq. ft.): 750 - 2,200
  • Overall firebox volume: 2.5
  • EPA loading volume (cu. ft.): 1.69
  • Maximum burn time: 8 h
  • Maximum heat output (dry cordwood): 80,000 BTU/h (23.4 kW)
  • Overall heat output rate (min. to max.): 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
  • Average overall efficiency (EPA cribs/Douglas fir): N.A. (HHV) N.A. (LHV)
  • Average overall efficiency (dry cordwood): 68% (HHV) 73% (LHV)
  • Optimum efficiency: 74%
  • Average particulate emissions rate: 1.14 g/h
  • Average CO: 53 g/h

Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

(Average Overall Efficieny) As measured per CSA B415.1-10 stack loss method.

(HHV) Higher Heating Value of the fuel.

(LHV) Lower Heating Value of the fuel.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

Optimum overall efficiency at a specific burn rate (LHV).

 This appliance is officially tested and certified by an independent agency.



Specifications

Specifications

Combustion technology: Non-catalytic
High-efficiency certified appliance: Yes, EPA 2020 approved
Maximum log length: 20"
Log positioning: Over width
Chimney diameter: 6"
Flue outlet diameter: 6"
Type of chimney: CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet): 15'
Baffle type: C-Cast
Approved for a mobile home installation: No
Shipping Weight: 468 lb (212 kg)
Door type: Double, glass with cast iron frame
Glass type: Ceramic glass
Glass surface – dimensions (Width X Height): 22 1/4" X 12 1/2"
Glass air-wash system: Yes
Premium quality blower included (CFM): 176
Overall dimension (Height): 40 5/8"
Overall dimension (Width): 36 3/4"
Overall dimension (Depth): 29 3/4"
Door opening – dimension (Height): 10 1/2"
Door opening - dimension (Width): 25 3/8"
Firebox – dimension (Height): 12 1/8"
Firebox – dimension (Width): 20 3/8"
Firebox – dimension (Depth): 12 7/8"
Moulded refractory bricks: Yes
Stainless-steel secondary-air system improving gas combustion: Yes
Cast iron andirons: Yes
USA standard (emissions): EPA
Canadian Standard (emissions): CSA B415.1-10
USA standard (safety): UL 127
Canadian standard (safety): ULC-S610
Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)
Warranty: Limited lifetime

Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)

                                                                                                                      Canada  USA

Clearance – top (measured from the platform on which the appliance is installed)** 80" 80"
Clearance – combustible side mantle to unit 8" 8"
Clearance – sidewall 13" 13"
Clearance – minimum floor protection in front of the appliance 16" 16"
Clearance – top shelf to unit 58" 58"

* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
